S 800X (5900924) - Snapper Pro S800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar Fuel Hose & Tank Replacement Parts (Diesel Models) Parts Diagram

S800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar

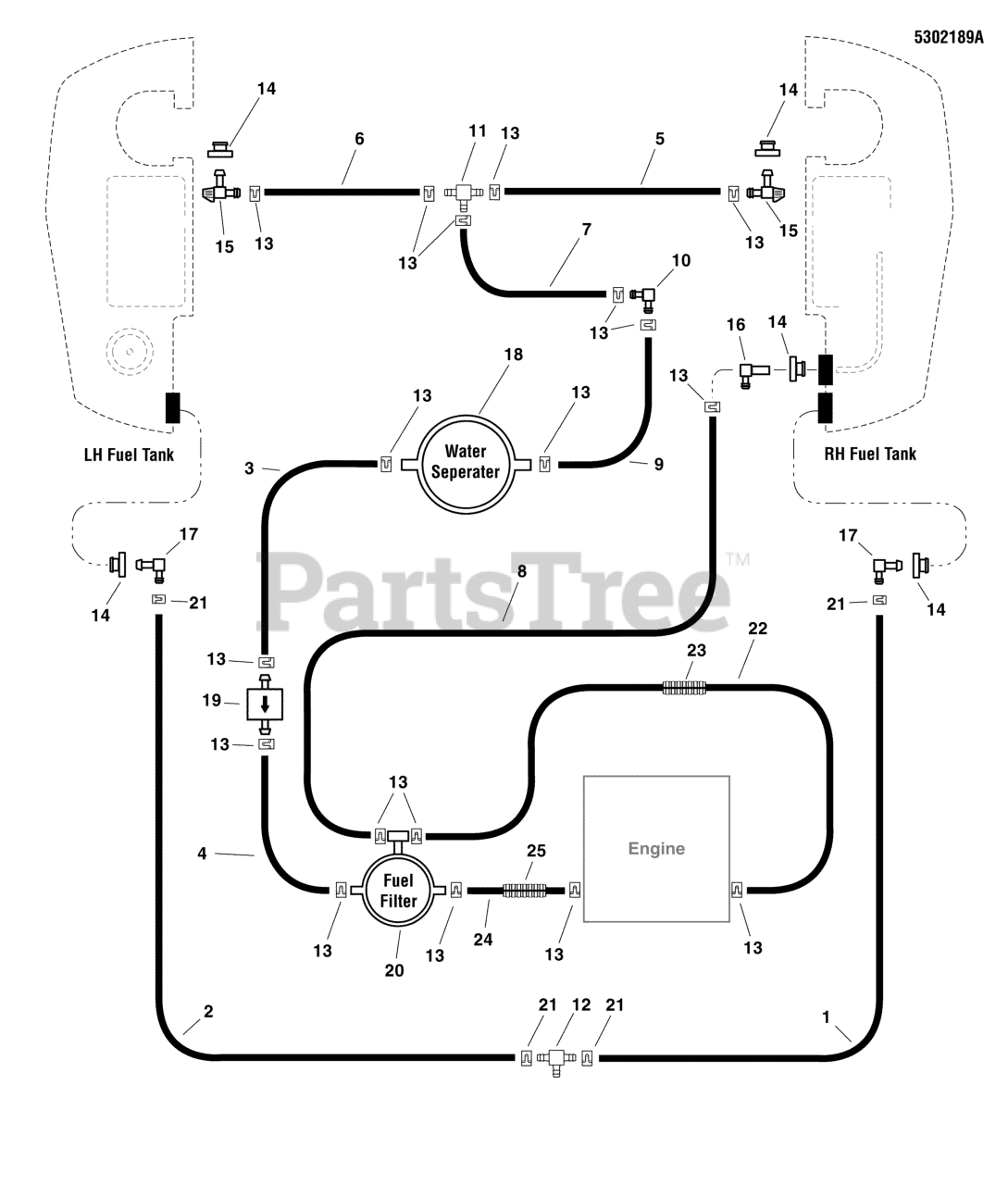

Fuel Hose & Tank Replacement Parts (Diesel Models) Parts Diagram

  • Title

1

Snapper Pro 5050831X45

1/4" Fuel Line, 45" Long

$

$

Not available

2

Snapper Pro 5050831X32

HOSE, 1/4" FUEL, 32.00"

$

$

Currently unavailable

3

Snapper Pro 5102045X12

FUEL LINE, 5/16 ID X 12.00 IN

$16.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5102045X32

FUEL LINE, 5/16 ID X 32.00 IN

$39.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5102045X18

FUEL LINE, 5/16 ID X 18.00 IN

$23.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5102045X24P5

FUEL LINE, 5/16 ID X 25.50 IN

$30.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5102045X19

FUEL LINE, 5/16 ID X 19.00 IN

$

$

Currently unavailable

8

Snapper Pro 5102045X41

FUEL LINE, 5/16 ID X 41.00 IN

$49.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5102045X2

FUEL LINE, 5/16 ID X 2.00 IN
(Superseded to 5102045X2FS)

$4.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5102044

FITTING, 5/16 X 5/16, 90 ELBOW DAPCO.
(Superseded to 5102044FS)

$20.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5102041

FITTING, TEE, 5/16 HOSE
(Superseded to 5102041FS)

$24.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5100876

1/4 BARBED TEE
(Superseded to 5100876FS)

$13.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5102046

CLAMP, HOSE, EXTERNAL, 9/16
(Superseded to 84003197)

$2.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

15

Snapper Pro 5100908

VALVE, FUEL SHUT-OFF, 11408 (SV)

$32.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5102600

DROP TUBE ASM, FUEL TANK, S800XY (SV)

$30.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 1674231

FITTING, ELBOW (SV)
(Superseded to 1674231SM)

$

$

Not available

18

WATER SEPERATER

$

$

Not available

19

FUEL PUMP

$

$

Not available

20

Snapper Pro 5101985X2

FUEL FILTER, YANMAR 3TNM82ABDMW (SV)

$44.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

22

Snapper Pro 5102045X13P75

FUEL HOSE, 5/16 ID X 13.75

$

$

Currently unavailable

23

Snapper Pro 5050861X11

WIRE LOOM, 5/8 ID X 11 IN

$3.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5102045X9P75

FUEL HOSE, 5/16 ID X 9.75

$

$

Currently unavailable

25

Snapper Pro 5050861X7

WIRE LOOM, 5/8 ID X 7 IN

$

$

Currently unavailable
