S 800X (5900924) - Snapper Pro S800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar Electrical Components Group (Diesel Models) Parts Diagram

S800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar

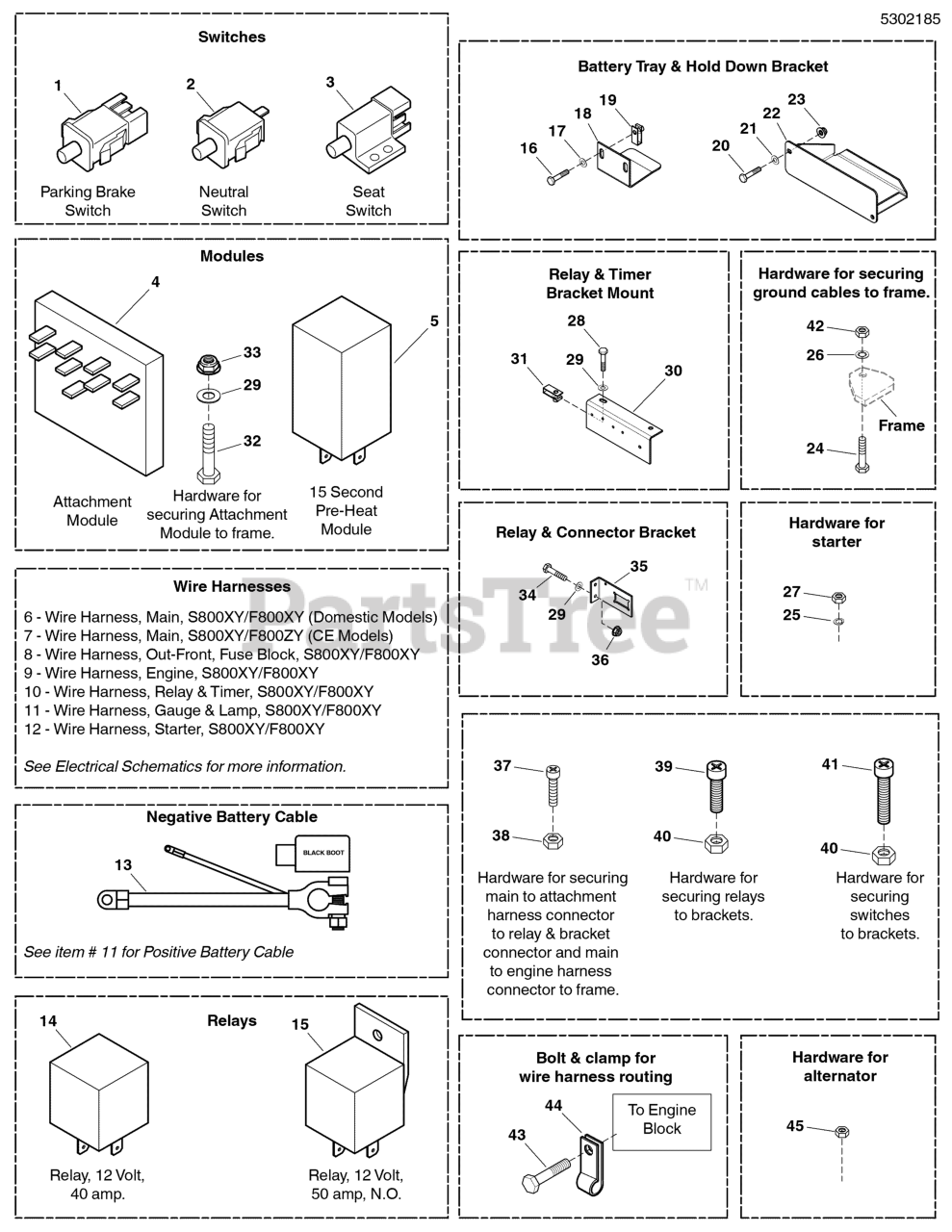

Electrical Components Group (Diesel Models) Parts Diagram

  • Title

1

Snapper Pro 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

2

Snapper Pro 5101589

SWITCH, PLUNGER, NO, SINGLE POLE SNAP-IN
(Superseded to 84006599)

$12.99

$

In Stock, only 2 left!

0

3

Snapper Pro 5022094

SWITCH, PLUNGER, N.C./N.C.
(Superseded to 5022094SM)

$14.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5103847

MODULE, ATTACHMENT, S800/F800, 1 SEC DEL
(Superseded to 5103847YP)

$248.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5102590

MODULE, PRE-HEAT, 15 SECOND

$73.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5406772

WIRE HARNESS, MAIN, S800XY/F800XY
(Superseded to 5406772YP)

$711.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5406815

WIRE HARNESS, MAIN, S800XY/F800XY

Note: (CE MODELS - S/N: 2014671676 & BELOW ONLY)

$

$

Currently unavailable

8

Snapper Pro 5404004

WIRE HARNESS, OUT-FRONT, FUSE BLOCK, S800XY/F800XY
(Superseded to 5404004YP)

$121.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5406773

WIRE HARNESS, ENGINE, S800XY/F800XY

$414.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5406774

WIRE HARNESS,RELAY & TIMER, S800XY/F800XY

$223.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5406775

WIRE HARNESS, GAUGE & LAMP, S800XY/F800XY

$69.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5406887

WIRE HARNESS, STARTER, S800XY/F800XY

$

$

Currently unavailable

13

Snapper Pro 5102156

BATTERY CABLE, NEGATIVE

$64.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5021766

RELAY, 12 VOLT, 40 AMP
(Superseded to 5021766SM)

$24.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5100980

RELAY, 12 VOLT, 50 AMP, N.O.
(Superseded to 5100980YP)

$44.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

17

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

18

Snapper Pro 5405840D

BRACKET, BATTERY, HOLD-DOWN - RED

$

$

Currently unavailable

19

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

20

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

21

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5405814D

WELD, BATTERY TRAY - RED

$

$

Currently unavailable

23

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

24

Snapper Pro 1931202

SCREW-HEX WSHR HD TAPTT5/16-18X1.250BLK
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

25

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

27

Snapper Pro 5025536

NUT, HEX, M8-1.25, CZ, GD 8.8
(Superseded to 5025536YP)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

29

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5406776D

BRACKET, RELAY & TIMER MOUNT - RED

$

$

Currently unavailable

31

Snapper Pro 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper Pro 5025010X12

BOLT, 1/4-20 X 1-1/2, GD5
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

34

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

35

Snapper Pro 5406124D

BRACKET, RELAY AND CONNECTOR MOUNT -RED

$

$

Currently unavailable

36

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

37

Snapper Pro 5025338X5

SCREW,#8-32 X 5/8 PHILLIPS, PAN HEAD, ZP
(Superseded to 5025338X5YP)

$3.49

$

Usually ships in 2-12 days

0

38

Snapper Pro 5025339

NUT, #8-32 HEX NYLON LOCK
(Superseded to 5025339YP)

$2.99

$

Usually ships in 2-12 days

0

39

Snapper Pro 5025179X4

SCREW- #10-24 X 1/2 ROUND PHILLIPS

$

$

Currently unavailable

40

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

41

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 80018785

NUT-HEX KEPS 5/16-18 CL/ZC

$

$

Currently unavailable

43

Snapper Pro 80005611

SCREW, Hex Head, M8 X 20

$

$

Currently unavailable

44

Snapper Pro 5025558

CLAMP, TUBE & WIRING, 1.062 ID
(Superseded to 5025558YP)

$4.99

$

Usually ships in 2-12 days

0

45

Snapper Pro 5025420

NUT, M6-1.0

$

$

Currently unavailable
