S 800X (5900875) - Snapper Pro 72" Mower Deck 72" Mower Deck - Front Frame Parts Diagram

72" Mower Deck

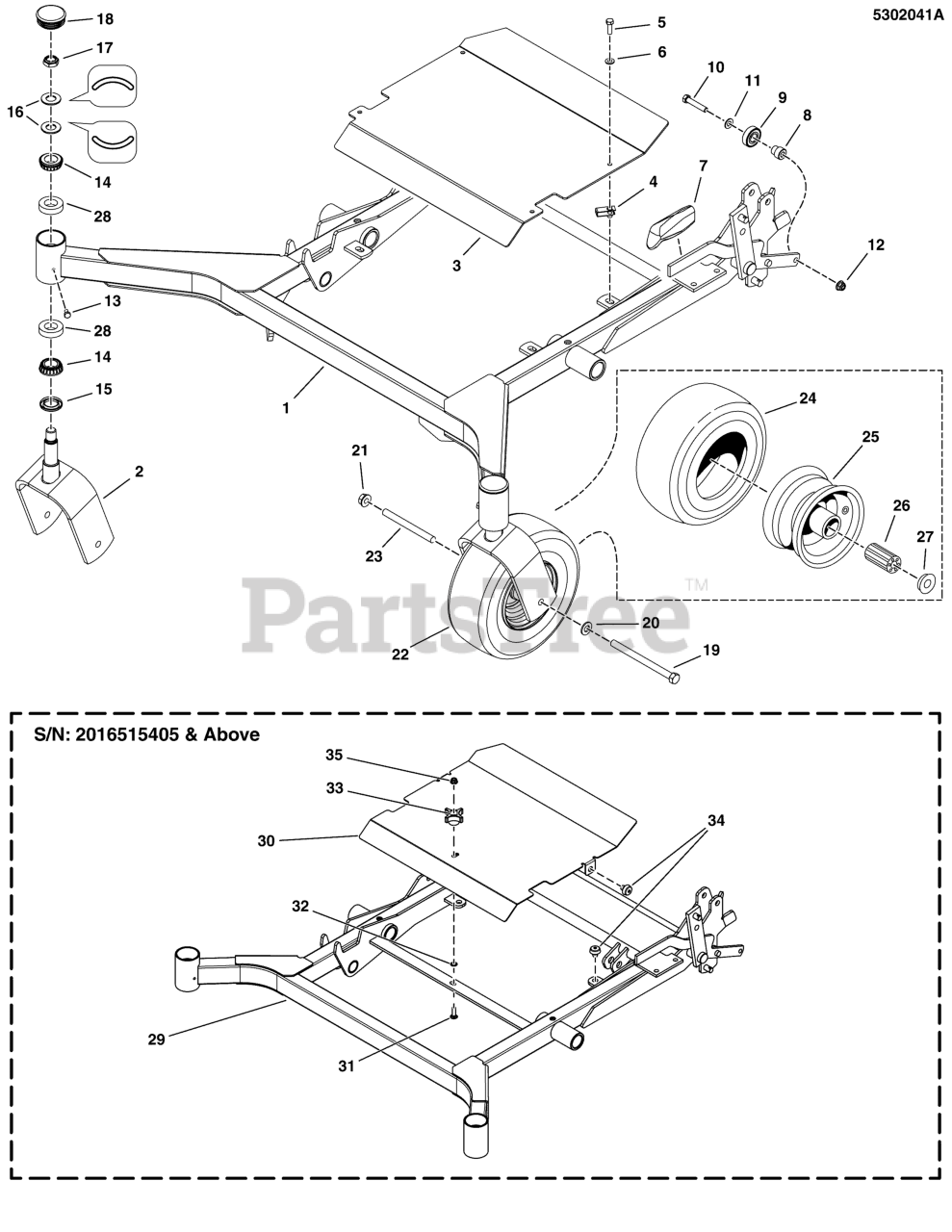

72" Mower Deck - Front Frame Parts Diagram

  • Title

1

Snapper Pro 5405896D

WELD, MOWER FRAME - OUTFRONT - RED

Note: (S/N: 2016515404 & Below)

$1096.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5401759D

WELD., FRONT CASTER YOKES - RED
(Superseded to 5401759DYP)

$136.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5407908D

DECK GUARD, CENTER, 72 - RED

Note: (S/N: 2016515404 & Below)

$116.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025452

BODY CLIP, 5/16-18 -1/4 MATERIAL
(Superseded to 5025452YP)

$5.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

6

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

7

Snapper Pro 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

$13.99

$

In Stock, only 2 left!

0

8

Snapper Pro 5049184

SPACER, HYDRO PULLEY
(Superseded to 5049184SM)

$5.49

$

In Stock, Qty 6

0

9

Snapper Pro 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

10

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

11

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

13

Snapper Pro 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

In Stock, only 3 left!

0

14

Snapper Pro 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

15

Snapper Pro 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 2 left!

0

16

Snapper Pro 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

18

Snapper Pro 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

19

Snapper Pro 5025017X56

BOLT, HEX, 1/2-13 X 7, GD 8, YZ
(Superseded to 5025017X56YP)

$14.99

$

In Stock, Qty 8

0

20

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

21

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

22

Snapper Pro 5101418

WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO
(Superseded to 5101418YP)

$127.99

$

In Stock, Qty 7

0

23

Snapper Pro 5045996

AXLE, Front Caster
(Superseded to 5045996SM)

$15.99

$

In Stock, Qty 18

0

24

Snapper Pro 5022433X1

TIRE, FRONT, 11 X 4.0 - 5 (SV)

Note: (SV)

$70.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5101418X2

WHEEL FOR 11X4.0-5 TIRE ASSM

Note: (SV)

$

$

Currently unavailable

26

Snapper Pro 5101418X1

BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK (SV)

Note: (SV)

$27.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5021043

RETAINER, BEARING (TWO PER TIRE)(SV)

Note: (SV)

$6.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5020883

CUP, BEARING (SV)

Note: (SV)

$8.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5410973D

WELD, MOWER FRAME, 800, 72 - RED

Note: (S/N: 2016515405 & Above)

$

$

Currently unavailable

30

Snapper Pro 5410971D

DECK GUARD, CENTER, 800, 61" - RED

Note: (S/N: 2016515405 & Above)

$

$

Currently unavailable

31

Snapper Pro 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

Note: (S/N: 2016515405 & Above)

$3.99

$

In Stock, Qty 9

0

32

Snapper Pro 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

Note: (S/N: 2016515405 & Above)

$2.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

Note: (S/N: 2016515405 & Above)

$13.99

$

In Stock, only 1 left!

0

34

Snapper Pro 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

Note: (S/N: 2016515405 & Above)

$7.99

$

In Stock, only 2 left!

0

35

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

Note: (S/N: 2016515405 & Above)

$3.49

$

Usually ships in 2-12 days

0
