S 800X (5900654) - Snapper Pro S800X Series Front Mount Zero-Turn Riding Mower, 31hp Briggs & Stratton Tail Wheel Mount Group Parts Diagram

S800X Series Front Mount Zero-Turn Riding Mower, 31hp Briggs & Stratton

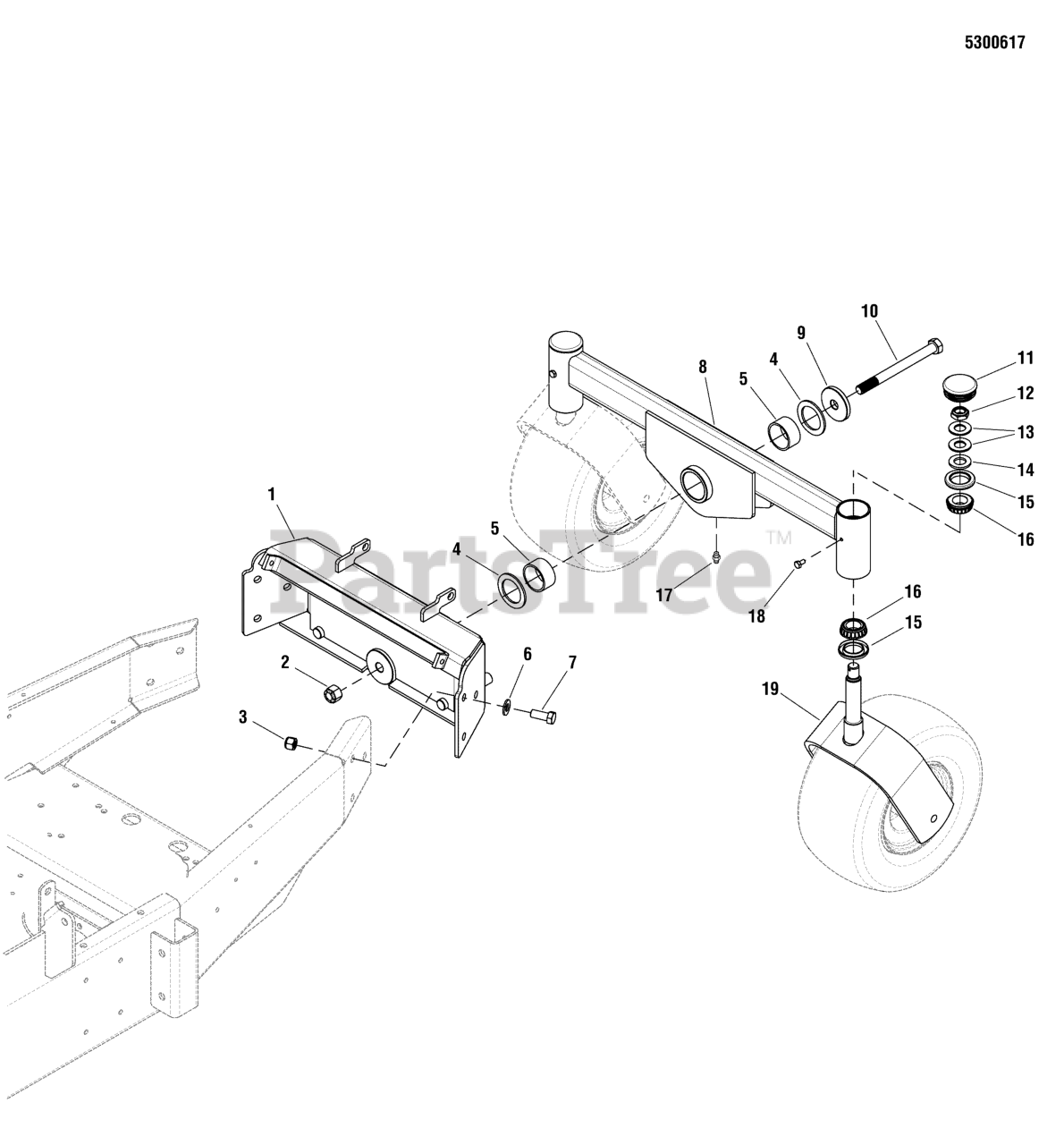

Tail Wheel Mount Group Parts Diagram

  • Title

1a

Snapper Pro 5403254D

WELD, TAIL WHEEL MOUNT - RED

Note: (GAS MODELS)

$

$

Currently unavailable

1b

Snapper Pro 5405685D

WELD, TAIL WHEEL MOUNT - RED

Note: (DIESEL MODELS)

$

$

Currently unavailable

2

Snapper Pro 5025403

NUT, 5/8-11 HEX NYLON LOCK
(Superseded to 5025403YP)

$6.99

$

In Stock, Qty 6

0

3

Snapper Pro 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

4

Snapper Pro 5101184

THRUST WASHER 1-3/4 X 2-1/2 X 1/8
(Superseded to 5101184YP)

$11.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5101183

BUSHING, 1-3/4 X 2 X 1
(Superseded to 5101183YP)

$25.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

7

Snapper Pro 5025018X10

BOLT, 1/2-20 X 1-1/4" GD5 CZ
(Superseded to 5025018X10SM)

$2.99

$

In Stock, Qty 20+

0

8

Snapper Pro 5600299

ASSM, TAIL WHEEL MOUNT - S800X

Note: (Includes Ref Nos 5 & 17.)

$431.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5100818

WASHER, .656 X 2.44 X .31, YZ
(Superseded to 5100818YP)

$22.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025019X56

BOLT, HEX HD, 5/8-11 X 7 GD5 YZ
(Superseded to 5025019X56YP)

$15.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

12

Snapper Pro 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

13

Snapper Pro 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 5

0

15

Snapper Pro 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 3 left!

0

16

Snapper Pro 5020884

BEARING, TAPERED ROLLER, 1
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

17

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

18

Snapper Pro 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

In Stock, only 3 left!

0

19

Snapper Pro 5411934D

WELD, CASTER YOKE - RED
(Superseded to 5419196D)

$177.99

$

Usually ships in 2-12 days

0
