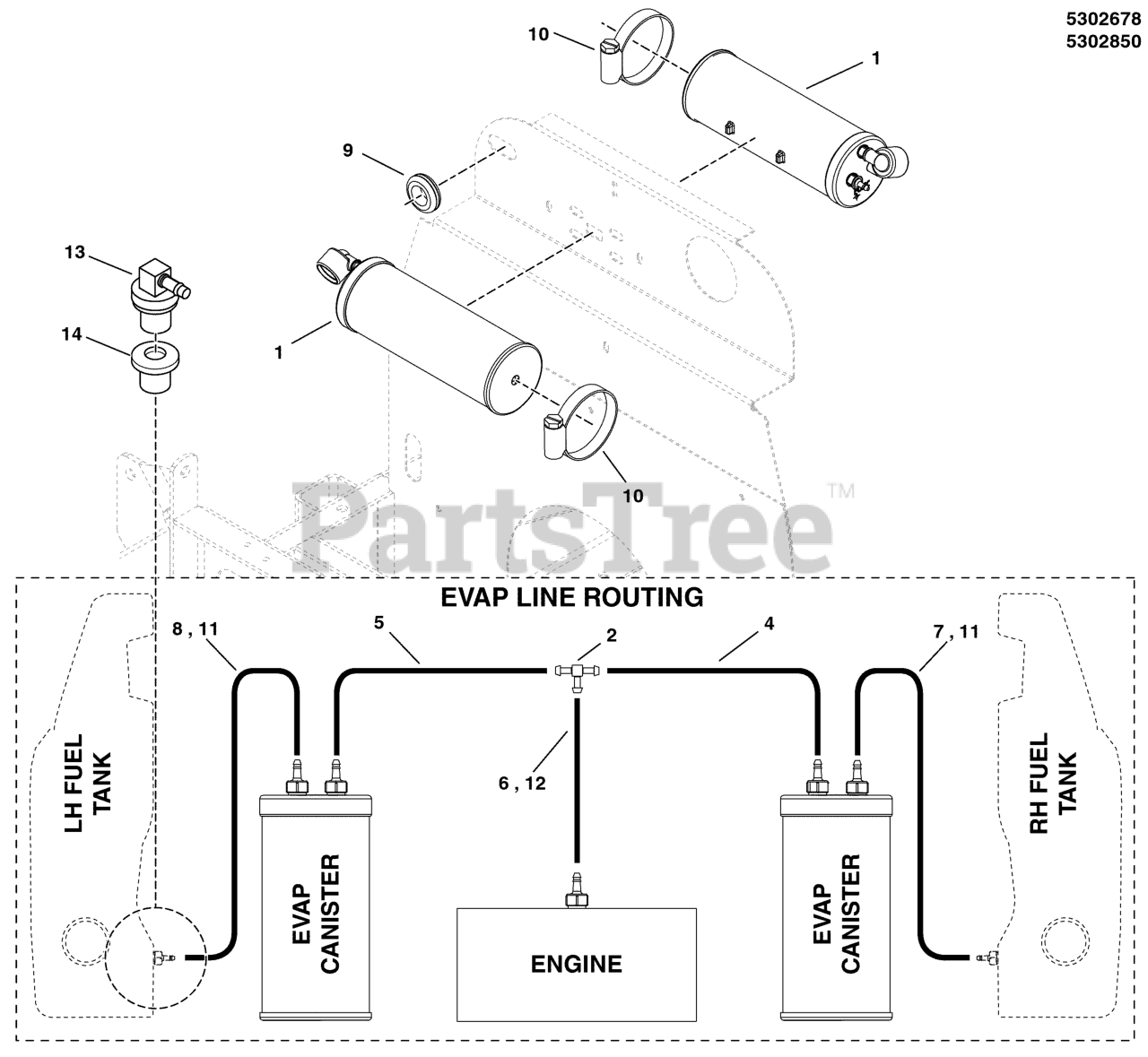

S 800X (5900654) - Snapper Pro S800X Series Front Mount Zero-Turn Riding Mower, 31hp Briggs & Stratton EVAP Canister Group (Gas Models) - S/N 2016816349 & Below Parts Diagram

S800X Series Front Mount Zero-Turn Riding Mower, 31hp Briggs & Stratton

EVAP Canister Group (Gas Models) - S/N 2016816349 & Below Parts Diagram

  • Title

1

Snapper Pro 313037

CNSTR, CARB, 9 GAL
(Superseded to 313037YP)

$92.99

$

In Stock, only 1 left!

0

2

Snapper Pro 5103062

FITTING, 3/16" TEE, BARB TYPE, HDPE
(Superseded to 5103062YP)

$10.99

$

In Stock, only 2 left!

0

3

DECAL, EPA CERT - 49 STATE

Note: (Located on frame near Serial Tag)

$

$

Not available

4

Snapper Pro 7700552X15

HOSE, VAPOR, 5MM ID, 15.00 LG
(Superseded to 7700552X22YP)

$8.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7700552X1P5

HOSE, VAPOR, 5MM ID, 1.50 LG

$

$

Currently unavailable

6

Snapper Pro 7700552X18P5

HOSE, VAPOR, 5MM ID, 18.50 LG

Note: (Briggs & Stratton Models)

$

$

Currently unavailable

7

Snapper Pro 7700552X42P5

HOSE, VAPOR, 5MM ID, 42.50 LG

Note: (Briggs & Stratton Models)

$

$

Currently unavailable

8

Snapper Pro 7700552X39

HOSE, VAPOR, 5MM ID, 39.00 LG
(Superseded to 7700552X39YP)

Note: (Briggs & Stratton Models)

$13.99

$

In Stock, only 3 left!

0

9

Snapper Pro 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 1725617

CLAMP-HOSE WORM DR
(Superseded to 1725617SM)

$5.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7700552X42

HOSE, VAPOR, 5MM ID, 42.00 LG

Note: (Kawasaki Models)

$

$

Currently unavailable

12

Snapper Pro 7700552X16

HOSE, VAPOR, 5MM ID, 16.00 LG
(Superseded to 7700552X22YP)

Note: (Kawasaki Models)

$8.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 770046

REMOTE VENT ASSEMBLY

$16.99

$

In Stock, only 1 left!

0

14

Snapper Pro 209043

GROMMET (SV)
(Superseded to 799624)

$8.99

$

In Stock, Qty 18

0
