S-8 (990853) - Homelite 28" Snow Thrower, 8hp Transmission Group (3841I06) Parts Diagram

28" Snow Thrower, 8hp

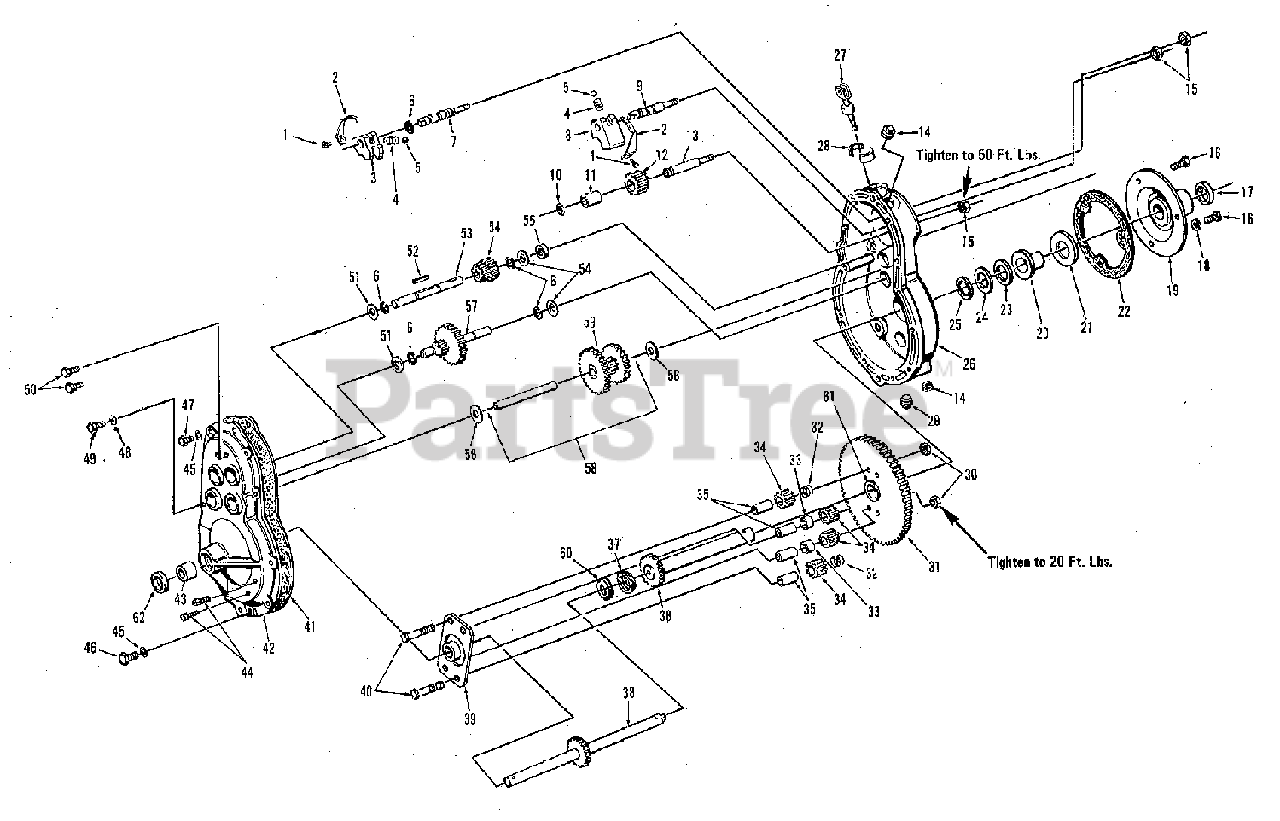

Transmission Group (3841I06) Parts Diagram

  • Title

1

Simplicity LM-07151-33

SCREW, Hex, Head, 5/16-18 x 5/16

$

$

Not available

2

Simplicity LM-01713-42

SPRING

$

$

Not available

3

Simplicity LM-01713-63

FORK, Shift, Reverse

$

$

Not available

4

Simplicity LM-01714-56

SPRING

$

$

Not available

5

Simplicity LM-01542-62

BALL, Shift Lock

$

$

Not available

6

Simplicity LM-80610-48

RING, Retaining

$

$

Not available

7

Simplicity LM-01713-65

SHAFT, Shift, Reverse & Lo

$

$

Not available

8

Simplicity LM-01713-64

FORK Shift, I & II

$

$

Not available

9

Simplicity LM-01713-72

SHAFT, Shift, Hi-Lo

$

$

Not available

10

Simplicity LM-01650-06

RING, "O"

$

$

Not available

11

Simplicity LM-01560-82

BEARING, Roller

$

$

Not available

12

Simplicity LM-01650-07

PINION, Reverse

$

$

Not available

13

Simplicity LM-01650-05

SHAFT, Reverse Pinion

$

$

Not available

14

Simplicity LM-09270-00

PLUG, Pipe

$

$

Not available

15

Simplicity LM-09182-13

NUT, Hex

$

$

Not available

16

Simplicity LM-09193-57

SCREW, Hex Head, 3/8-16 x 7/8

$

$

Not available

17

Simplicity LM-01630-19

SEAL, Oil

$

$

Not available

18

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

19

Simplicity LM-01630-56

PLATE SUPPORT ASSEMBLY

$

$

Not available

20

Simplicity LM-01630-20

BUSHING

$

$

Not available

21

Simplicity LM-01630-09

WASHER

$

$

Not available

22

Simplicity LM-01630-16

GASKET

$

$

Not available

23

Simplicity LM-01630-14

WASHER

$

$

Not available

23

Simplicity LM-06130-88

WASHER

$

$

Not available

24

Simplicity LM-01630-15

WASHER

$

$

Not available

25

Simplicity LM-01630-17

RING, Snap

$

$

Not available

26

Simplicity LM-01630-94

CASE, Gear Sub Assembly

$

$

Not available

27

Simplicity LM-01560-31

SHIFT ROD ASSEMBLY

$

$

Not available

28

Simplicity LM-01010-42

BUSHING, Ball, Half

$

$

Not available

29

Simplicity LM-09016-53

PLUG, Pipe

$

$

Not available

30

Simplicity LM-09234-28

NUT, Hex 3/8-16

$

$

Not available

31

Simplicity LM-01630-13

GEAR, Drive

$

$

Not available

32

Simplicity LM-01620-85

SPRING, Thrust

$

$

Not available

33

Simplicity LM-01210-84

SPACER, Differential

$

$

Not available

34

Simplicity LM-01585-79

PINION, Differential

$

$

Not available

35

Simplicity LM-01210-83

SPINDLE, Pinion Differential

$

$

Not available

36

Simplicity LM-01612-17

AXLE TUBE & BUSHING ASSEMBLY

$

$

Not available

37

Simplicity LM-01583-58

CUP, Thrust

$

$

Not available

38

Simplicity LM-01612-06

AXLE ASSEMLY

$

$

Not available

39

Simplicity LM-01630-54

PLATE ASSEMBLY, Differential

$

$

Not available

40

Simplicity LM-09219-72

SCREW, Hex Head, 3/8-16 x 2-1/2

$

$

Not available

41

Simplicity LM-01561-03

GASKET, Case

$

$

Not available

42

Simplicity LM-01735-66

COVER, Gear Case Sub-Assembly

$

$

Not available

43

Simplicity LM-01630-21

BUSHING

$

$

Not available

44

Simplicity LM-09028-70

SCREW, Socket Head, 3/8-16 x 3/8

$

$

Not available

45

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

46

Simplicity LM-09212-21

SCREW, Hex Head, 5/16-18 x 1-1/2

$

$

Not available

47

Simplicity LM-09077-29

SCREW, Hex Head, 5/16-18 x 1-1/4

$

$

Not available

48

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

49

Simplicity LM-09182-28

SCREW, Hex Head, 3/8-16 x 5/8

$

$

Not available

50

Simplicity LM-09193-21

SCREW, Hex Head, 7/16-14 x 3/4

$

$

Not available

51

Simplicity LM-01560-85

WASHER

$

$

Not available

52

Simplicity LM-01560-86

KEY

$

$

Not available

53

Simplicity LM-01560-83

SHAFT, Pulley

$

$

Not available

54

Simplicity LM-01560-87

PINION ASSEMBLY, Hi-Lo

$

$

Not available

55

Simplicity LM-01560-84

SEAL, Oil

$

$

Not available

56

Simplicity LM-01560-89

WASHER

$

$

Not available

57

Simplicity LM-01650-13

GEAR & SHAFT ASSEMBLY

$

$

Not available

58

Simplicity LM-01610-71

SHAFT & GEAR ASSEMBLY

$

$

Not available

59

Simplicity LM-01650-11

CLUSTER GEAR

$

$

Not available

60

Simplicity LM-01612-12

SEAL, Oil

$

$

Not available

61

Simplicity LM-01583-65

BUSHING

$

$

Not available

62

Simplicity LM-01630-12

SEAL, Oil

$

$

Not available
