S-8 (990853) - Homelite 28" Snow Thrower, 8hp Rotor Drive Group (3841I04) Parts Diagram

28" Snow Thrower, 8hp

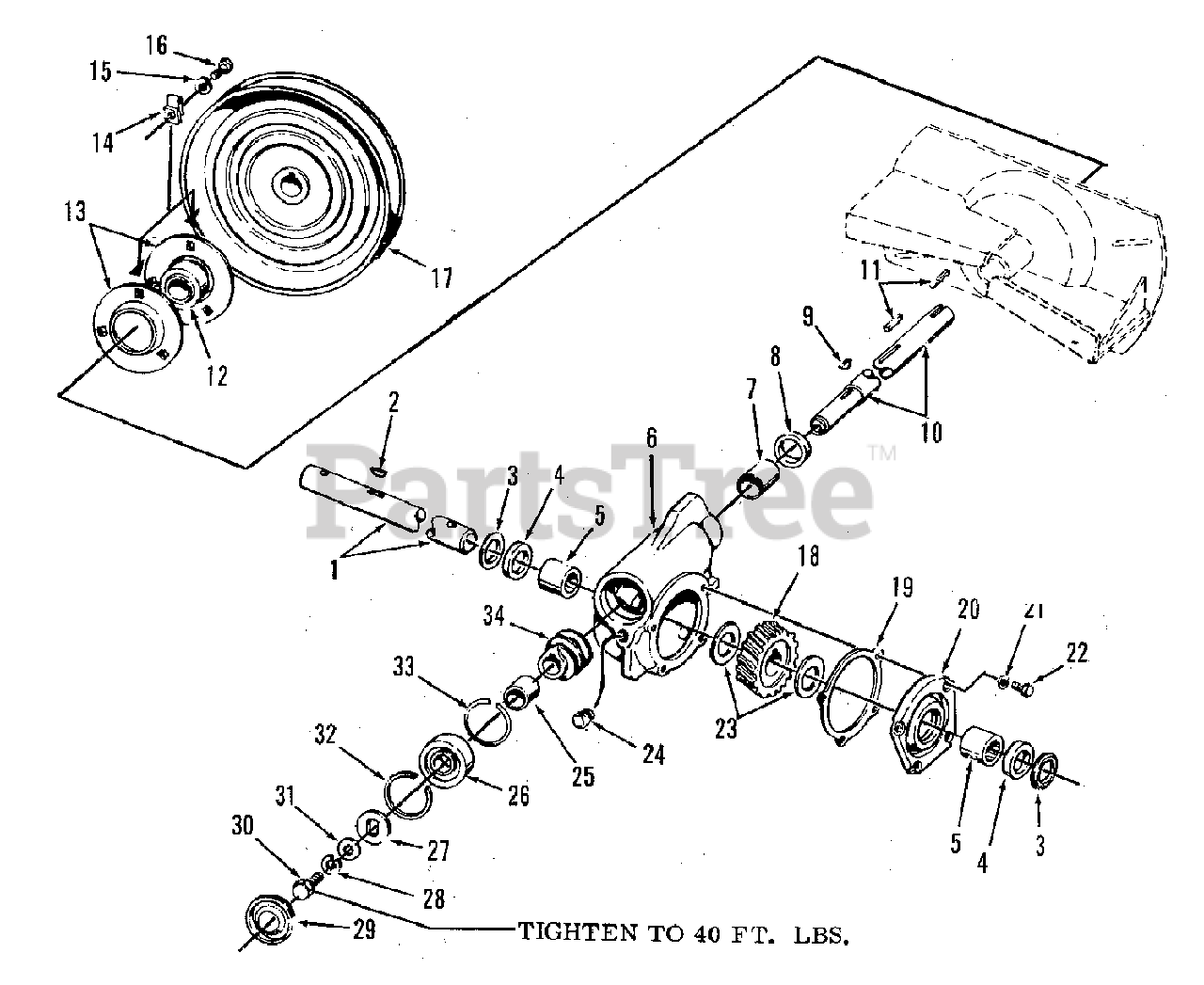

Rotor Drive Group (3841I04) Parts Diagram

  • Title

1

Simplicity LM-01610-66

SHAFT, Worm Gear

$

$

Not available

2

Simplicity LM-09177-55

KEY, Woodruff

$

$

Not available

3

Simplicity LM-01180-82

WASHER

$

$

Not available

4

Simplicity LM-01181-18

SEAL, Oil

$

$

Not available

5

Simplicity LM-01180-20

BEARING, Needle

$

$

Not available

6

Simplicity LM-01610-18

HOUSING, Worm Drive

$

$

Not available

7

Simplicity LM-01583-37

BUSHING

$

$

Not available

8

Simplicity LM-01181-17

SEAL, Oil

$

$

Not available

9

Simplicity LM-09111-71

KEY, 3/16 x 7/8

$

$

Not available

10

Simplicity LM-01610-64

SHAFT, Worm Gear

$

$

Not available

11

Simplicity LM-80610-81

KEY

$

$

Not available

12

Simplicity LM-01610-68

BEARING, Cartridge

$

$

Not available

13

Simplicity LM-01610-69

BEARING, Flange

$

$

Not available

14

Simplicity LM-09287-01

NUT, Retainer

$

$

Not available

15

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

16

Simplicity LM-09173-97

SCREW, Hex Cap, 5/16-18 x 3/4

$

$

Not available

17

Simplicity LM-01610-70

PULLEY

$

$

Not available

18

Simplicity LM-01610-67

GEAR, Worm

$

$

Not available

19

Simplicity LM-01180-24

GASKET

$

$

Not available

20

Simplicity LM-01183-16

COVER

$

$

Not available

21

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

22

Simplicity LM-09219-59

SCREW, Hex Cap, 1/4-20 x 5/8

$

$

Not available

23

Simplicity LM-01183-15

WASHER, Thrust

$

$

Not available

24

Simplicity LM-09016-53

PLUG, Pipe, 3/8

$

$

Not available

25

Simplicity LM-01180-60

SPACER

$

$

Not available

26

Simplicity LM-01180-11

BEARING, Ball

$

$

Not available

27

Simplicity LM-01181-78

WASHER

$

$

Not available

28

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

29

Simplicity LM-01181-79

CUP

$

$

Not available

30

Simplicity LM-09270-08

SCREW, Hex Cap, 3/8-24 x 1

$

$

Not available

31

Simplicity LM-09176-42

WASHER, Flat, 5/16

$

$

Not available

32

Simplicity LM-01180-61

RING, Retaining

$

$

Not available

33

Simplicity LM-01180-94

RING, Snap

$

$

Not available

34

Simplicity LM-01610-65

WORM

$

$

Not available
