S-8 (990853) - Homelite 28" Snow Thrower, 8hp Engine and Frame Group (3841I05) Parts Diagram

28" Snow Thrower, 8hp

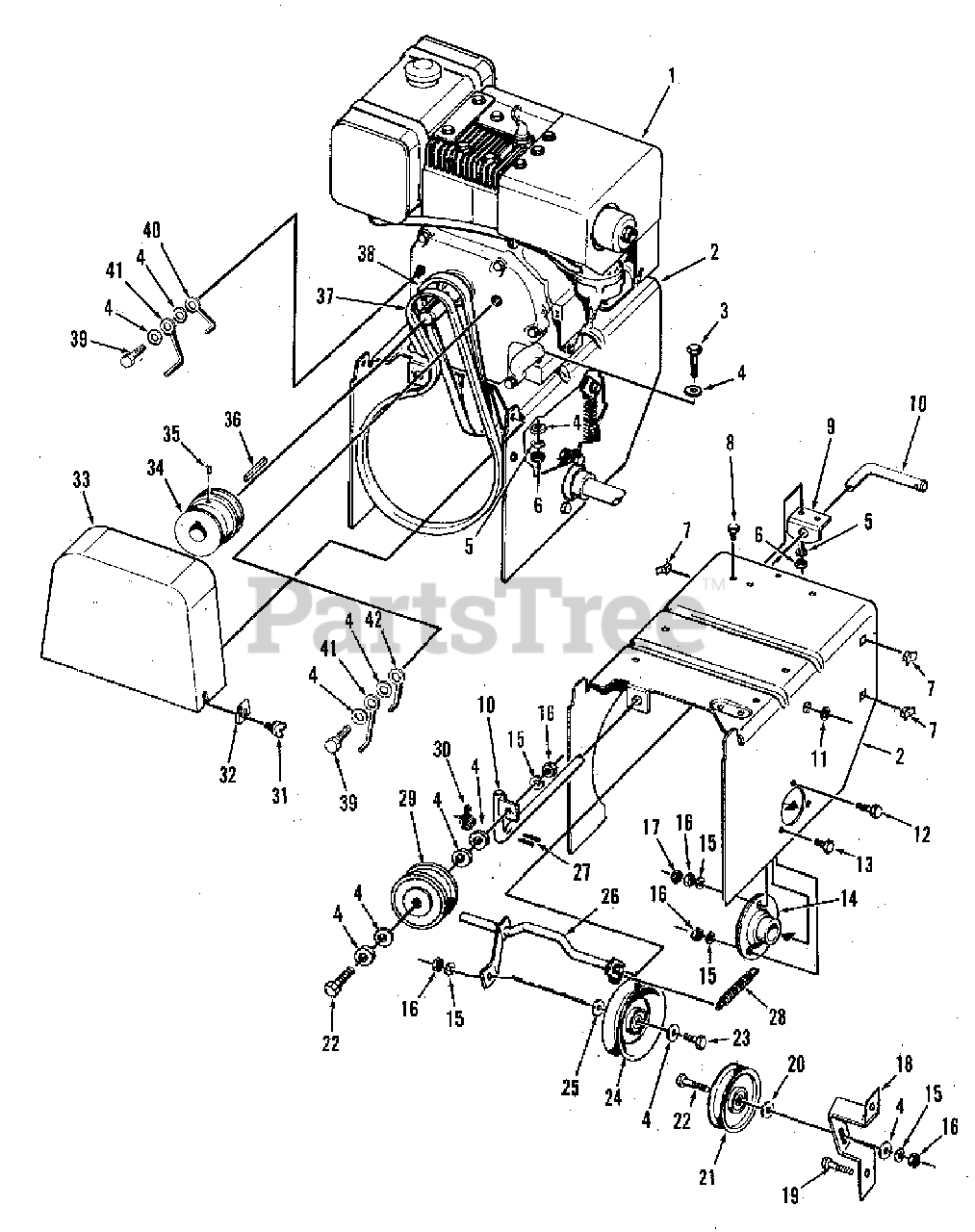

Engine and Frame Group (3841I05) Parts Diagram

  • Title

1

ENGINE, Model 190412 Type 0695-01

$

$

Not available

2

Simplicity LM-01743-39

ENGINE BASE & FRAME

$

$

Not available

3

Simplicity LM-09173-98

SCREW, Hex Cap, 5/16-18 x 1-3/4"

$

$

Not available

4

Simplicity LM-09176-42

WASHER, Flat, 5/16

$

$

Not available

5

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

6

Simplicity LM-09173-72

NUT, 5/16-18

$

$

Not available

7

Simplicity LM-09204-70

NUT, Tinnerman

$

$

Not available

8

Simplicity LM-09193-18

SCREW, Hex, 5/16-18 x 5/8

$

$

Not available

9

Simplicity LM-01610-56

BRACKET, Idler Support

$

$

Not available

10

Simplicity LM-01610-34

ROD ASSEMBLY, Auger

$

$

Not available

11

Simplicity LM-01583-99

RING, Retaining

$

$

Not available

12

Simplicity LM-09174-00

SCREW, Hex Cap, 3/8-16 x 1-1/4

$

$

Not available

13

Simplicity LM-09077-31

SCREW, Hex Cap, 3/8-16 x 1

$

$

Not available

14

Simplicity LM-01612-38

BEARING, Ball

$

$

Not available

15

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

16

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

17

Simplicity LM-09234-28

NUT, Hex

$

$

Not available

18

Simplicity LM-01740-91

BRACKET, Idler

$

$

Not available

19

Simplicity LM-09287-30

SCREW, 3/8-16 x 1/2, Taptite

$

$

Not available

20

Simplicity LM-01063-92

SPACER

$

$

Not available

21

Simplicity LM-01067-16

PULLEY, Idler

$

$

Not available

22

Simplicity LM-09193-60

SCREW, 3/8-16 x 1-1/2

$

$

Not available

23

Simplicity LM-09174-02

SCREW, 3/8-16 x 2

$

$

Not available

24

Simplicity LM-01744-97

PULLEY, Idler

$

$

Not available

25

Simplicity LM-01590-29

SPACER

$

$

Not available

26

Simplicity LM-01743-24

CLUTCH PULLEY PIVOT

$

$

Not available

27

Simplicity LM-09184-55

PIN, Cotter, 5/32 x 1

$

$

Not available

28

Simplicity LM-01591-06

SPRING, Tension

$

$

Not available

29

Simplicity LM-01545-34

PULLEY, Idler

$

$

Not available

30

Simplicity LM-01610-58

SPRING, Torsion

$

$

Not available

31

Simplicity LM-09286-93

SCRWE, Thumb, 5/16-18 x 3/4

$

$

Not available

32

Simplicity LM-09287-01

NUT, Tinnerman

$

$

Not available

33

Simplicity LM-01610-17

COVER, Engine Pulley

$

$

Not available

34

Simplicity LM-01742-39

PULLEY, Engine

$

$

Not available

35

Simplicity LM-09055-64

SCREW, Set, 5/16-18 x 3/8

$

$

Not available

36

Simplicity LM-01591-29

KEY

$

$

Not available

37

Simplicity LM-01610-98

BELT, "V"

$

$

Not available

38

Simplicity LM-01743-23

BELT, V

$

$

Not available

39

Simplicity LM-09219-44

SCREW, Hex, 5/16-24 x 1

$

$

Not available

40

Simplicity LM-01743-26

STOP, Belt

$

$

Not available

41

Simplicity LM-01630-65

STOP, Belt

$

$

Not available

42

Simplicity LM-01743-27

STOP, Belt

$

$

Not available
