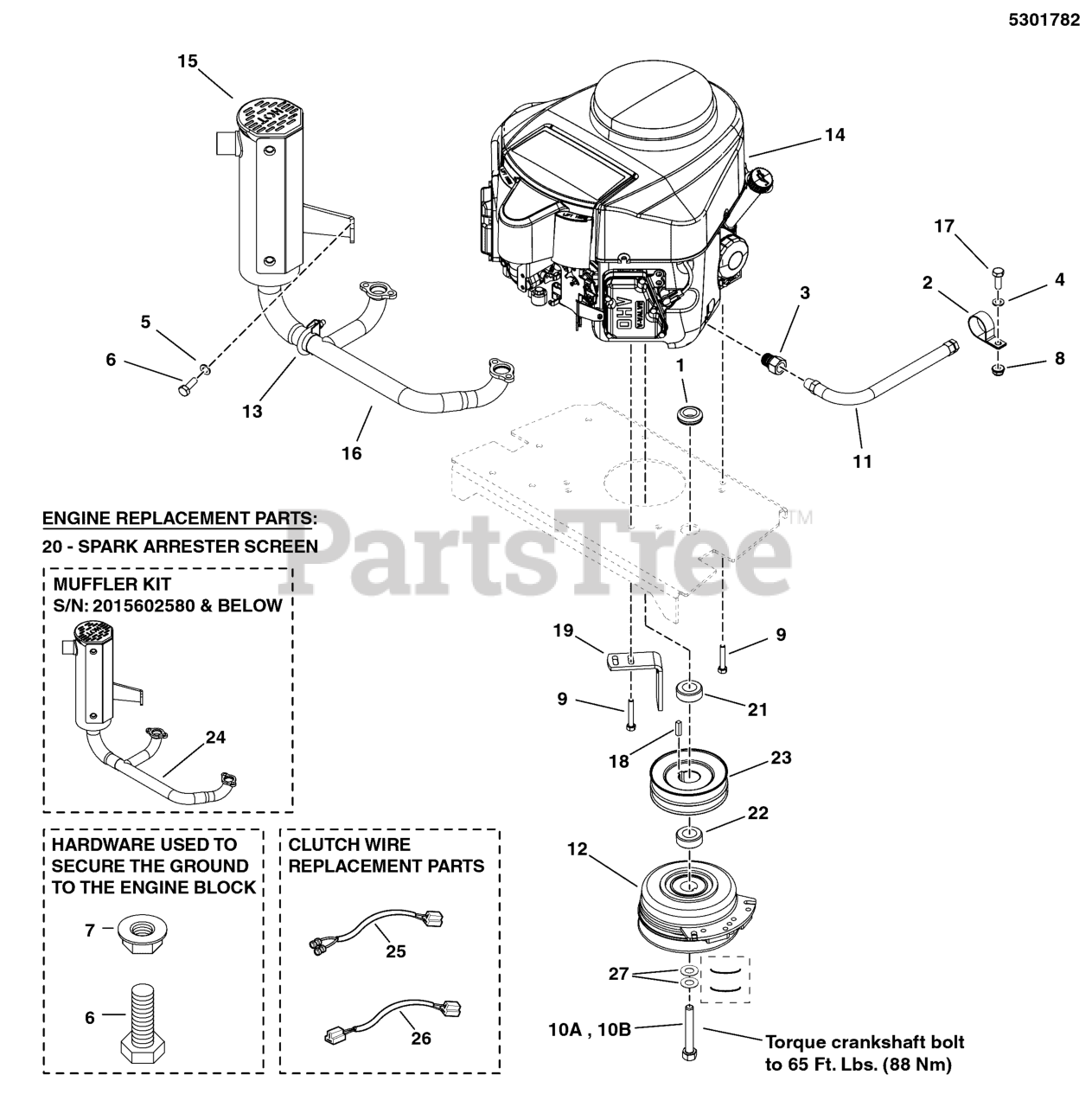

S 75X (5900918) - Snapper Pro S75X Series 52" Stand-On Mower, 22hp Kawasaki Engine & PTO Group Parts Diagram

S75X Series 52" Stand-On Mower, 22hp Kawasaki

Engine & PTO Group Parts Diagram

  • Title

1

Snapper Pro 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5022234

ADAPTER-OIL DRAIN
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Snapper Pro 5025249

BOLT, M8-1.25 X 20MM GD8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025355

NUT, M8-1.25 SERR. FLANGE, CZ
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

9

Snapper Pro 5025532

BOLT,HEX FLG, SER GD5 3/8-16X1-1/4,PATCH
(Superseded to 84003591)

$3.49

$

In Stock, only 4 left!

0

10a

Snapper Pro 5102865

BOLT, CRANKSHAFT, 7/16X2-3/4
(Superseded to 5102865YP)

Note: (S/N: 2015745414 & Above)

$5.49

$

In Stock, only 1 left!

0

10b

Snapper Pro 5102864

BOLT, CRANKSHAFT, 7/16X2-1/2
(Superseded to 5102864YP)

Note: (S/N: 2015745413 & Below)

$5.49

$

In Stock, only 1 left!

0

11

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

12

Snapper Pro 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 1 left!

0

13

Snapper Pro 5022810

CLAMP, EXHAUST EXTENSION
(Superseded to 5022810FS)

$7.49

$

Usually ships in 2-12 days

0

14

ENGINE, KAWASAKI

$

$

Not available

15

Snapper Pro 5102389

MUFFLER, KAWASAKI, VERTICAL
(Superseded to 5102389FS)

Note: (S/N: 2015602581 & Above)

$385.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5102390

MANIFOLD, KAWASAKI, VERTICAL
(Superseded to 5102390FS)

Note: (S/N: 2015602581 & Above)

$168.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

18

Snapper Pro 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

19

Snapper Pro 5404967A

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5101641

SCREEN, SPARK ARRESTER (SV)
(Superseded to 5101641YP)

$84.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5047033

SPACER, 1.13 X 1.75 X 1.03
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5044062

SPACER, 1.13 X 1.75 X .50
(Superseded to 5044062SM)

$19.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5047075

PULLEY, CRANKSHAFT, 1.126 ID X 4.75 OD

$128.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5600597

KIT, MUFFLER & MANIFOLD

Note: (SV - S/N: 2015602580 & Below)

$628.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5600575

KIT, CLUTCH WIRE

Note: (SV - S/N: 2015612213 & Above)

$66.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5403576

WIRE HARNESS, JUMPER, WARNER CLUTCH
(Superseded to 5403576YP)

Note: (SV - S/N: 2015612212 & Below)

$65.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & Above)

$4.49

$

In Stock, only 2 left!

0
