S 75X (5900859) - Snapper Pro S75X Series 52" Stand-On Mower, 26hp Kawasaki Wheel & Tire Group Parts Diagram

S75X Series 52" Stand-On Mower, 26hp Kawasaki

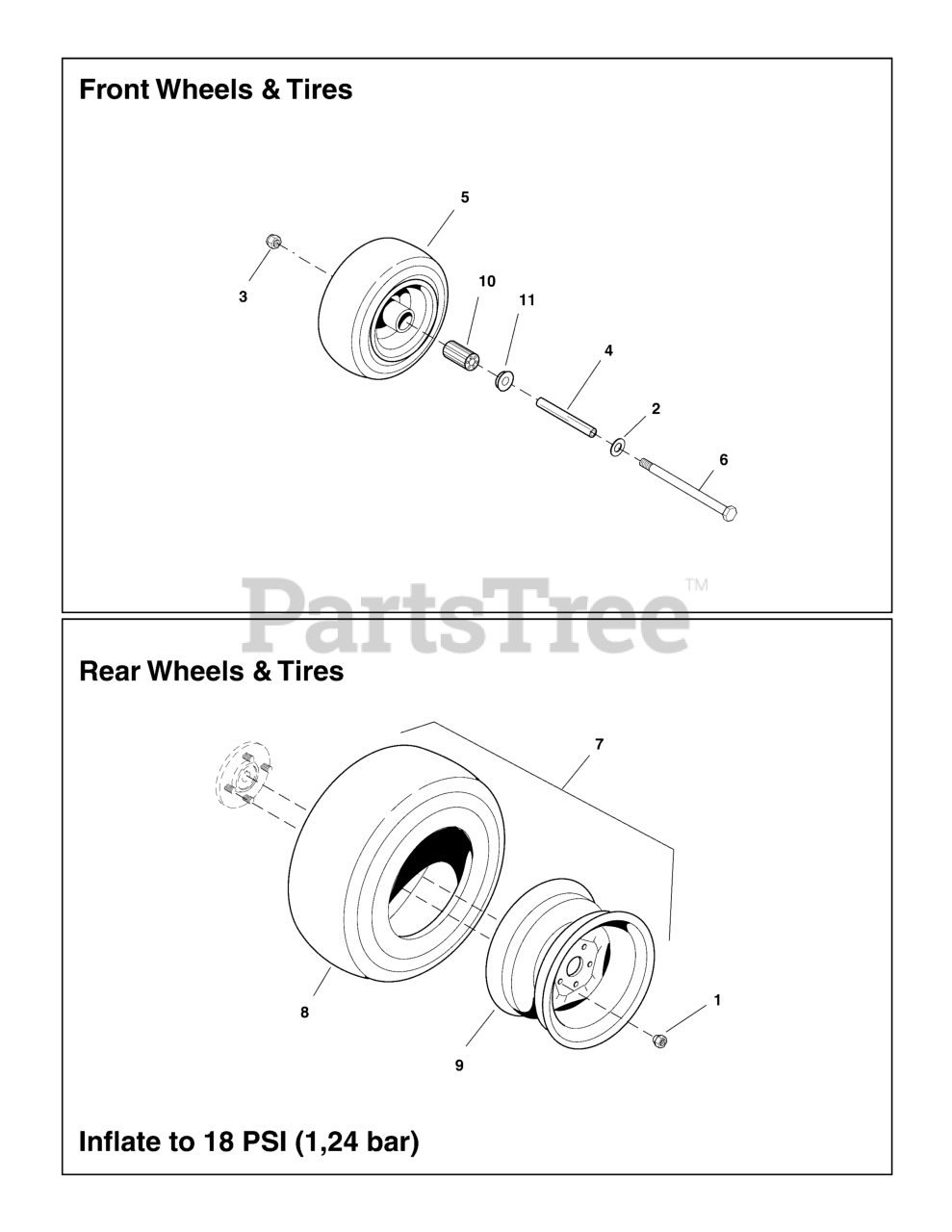

Wheel & Tire Group Parts Diagram

  • Title

1

Snapper Pro 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

2

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

3

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

4

Snapper Pro 5045996

AXLE, Front Caster
(Superseded to 5045996SM)

$15.99

$

In Stock, Qty 18

0

5

Snapper Pro 5100715

TIRE/WHEEL ASSM 11/4.00-5 FLAT FREE
(Superseded to 5100715YP)

$154.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025017X56

BOLT, HEX, 1/2-13 X 7, GD 8, YZ
(Superseded to 5025017X56YP)

$14.99

$

In Stock, Qty 8

0

7

Snapper Pro 5101661

TIRE/WHEEL ASM, 22X10.00 - 10 TURF MASTE

$326.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5100006X1

TIRE, 22 X 10 X 10, RUBBER
(Superseded to 5100006X1FS)

$192.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5101661X1

WHEEL, 10 X 7, 4/4 BC, 1.12" POS OFFSET

$201.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5101418X1

BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK (SV)

$27.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5021043

RETAINER, BEARING (TWO PER TIRE)(SV)

$6.99

$

Usually ships in 2-12 days

0
