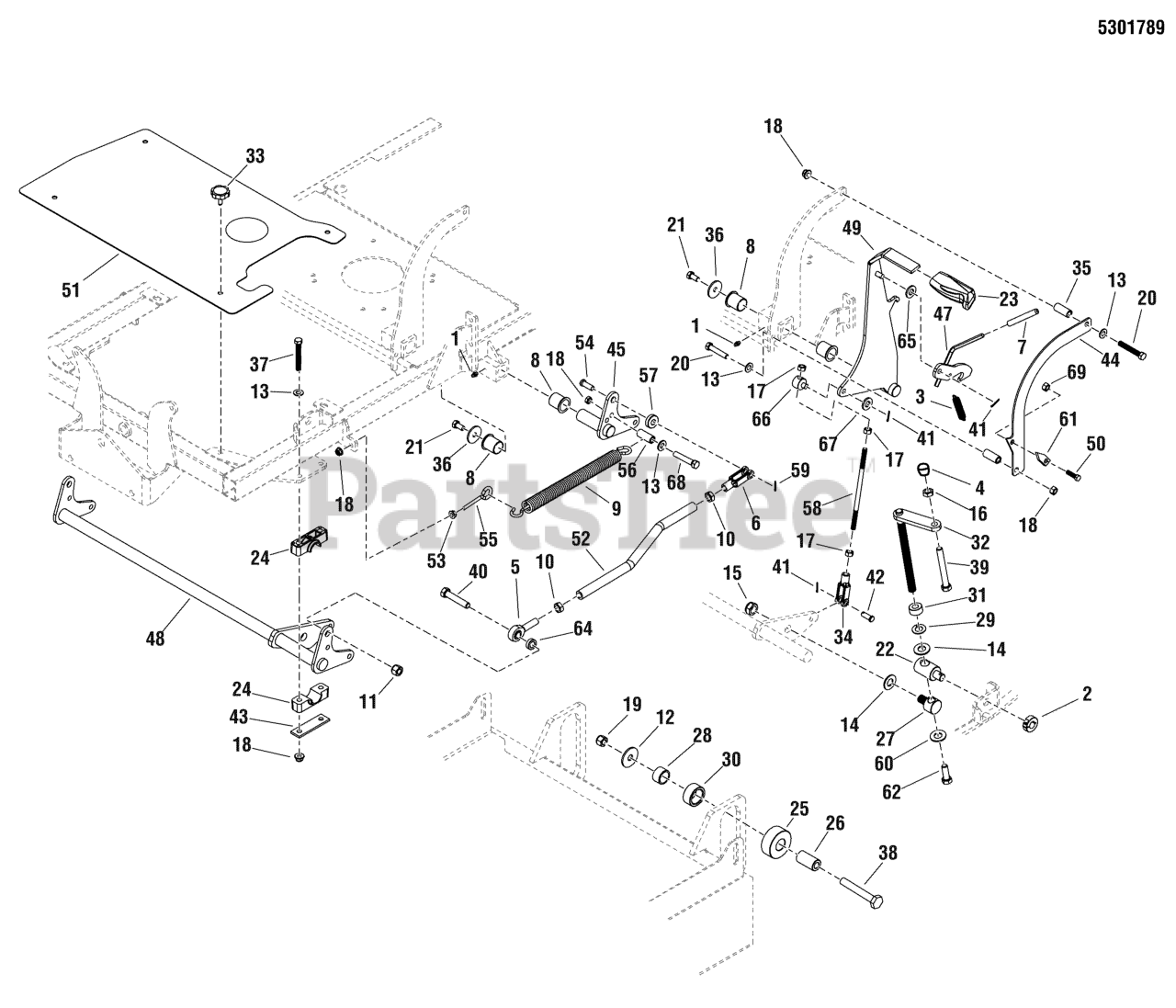

S 75X (5900859) - Snapper Pro S75X Series 52" Stand-On Mower, 26hp Kawasaki Deck Lift Group Parts Diagram

S75X Series 52" Stand-On Mower, 26hp Kawasaki

Deck Lift Group Parts Diagram

  • Title

1

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

2

Snapper Pro 5020441

COLLAR, 5/8 SPLIT
(Superseded to 5020441SM)

$14.99

$

In Stock, Qty 20+

0

3

Snapper Pro 5020639

SPRING, EXTENSION
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5021733

KNOB, PLASTIC, 1/2-13
(Superseded to 5021733SM)

$9.49

$

In Stock, only 2 left!

0

5

Snapper Pro 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

$42.99

$

In Stock, only 2 left!

0

6

Snapper Pro 5023174

CLEVIS, 1/2-20, STEEL
(Superseded to 5023174SM)

$16.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5023198

COVER, VINYL HANDLE
(Superseded to 5023198SM)

$4.49

$

In Stock, only 2 left!

0

8

Snapper Pro 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5023355

SPRING, DECK LIFT ASSIST
(Superseded to 5023355SM)

$49.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 18

0

11

Snapper Pro 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

12

Snapper Pro 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025281

WASHER, 5/8 SAE
(Superseded to 5025281SM)

$3.99

$

In Stock, Qty 6

0

15

Snapper Pro 5025282

NUT, 5/8-11 HEX JAM NYLON LOCK
(Superseded to 5025282FS)

$5.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025301

NUT, 1/2-13 HEX JAM
(Superseded to 5025301SM)

$3.49

$

In Stock, only 1 left!

0

17

Snapper Pro 5025309

NUT, 3/8-24 HEX JAM
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

19

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

20

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

21

Snapper Pro 5025443

BOLT, 3/8-16 X 3/4, GD5, YZ WITH PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5045856

PIVOT, SPRING ROD

$

$

Currently unavailable

23

Snapper Pro 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

$13.99

$

In Stock, only 3 left!

0

24

Snapper Pro 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5100646

GUIDE, DECK - TWR
(Superseded to 5100646FS)

$43.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5100689

SPACER, .52 X 1.00 X 1.88 - SS
(Superseded to 5100689FS)

$37.99

$

In Stock, only 1 left!

0

27

Snapper Pro 5100803

PIVOT, DECK LIFT
(Superseded to 5100803YP)

$31.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5100809

BUSHING, SLEEVE, 1.00 X 1.25 X .75
(Superseded to 5100809FS)

$3.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5100823

WASHER, THRUST, .63 X 1.13 X .06
(Superseded to 5100823FS)

$6.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5100826

ROLLER, 1.256 X 1.75 X .813
(Superseded to 5100826FS)

$20.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5100836

SPACER, .64 X 1.13 X .63
(Superseded to 5100836YP)

$10.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5101729

HANDLE, CRANK, COMPACT RIDER

$51.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5101731

KNOB, 5/16-18 X 1.00, ROSETTE, BLK
(Superseded to 5101731YP)

$10.99

$

In Stock, only 4 left!

0

34

Snapper Pro 5101800

CLEVIS, 3/8-24 RH, 3/8" PIN HOLE
(Superseded to 5101800YP)

$10.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5101933

SPACER, .39 X .63 X 1.00, YZ
(Superseded to 5101933YP)

$4.49

$

Usually ships in 2-12 days

0

36

Snapper Pro 5101964

WASHER, .390 X 1.38 X .109, YZ

$2.49

$

Usually ships in 2-12 days

0

37

Snapper Pro 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 5

0

38

Snapper Pro 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

39

Snapper Pro 5025017X44

BOLT, 1/2-13 X 5-1/2 GD5 YZ
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 3 left!

0

40

Snapper Pro 5025018X18

BOLT, 1/2-20 X 2-1/4 GD5 CZ
(Superseded to 5025018X18SM)

$3.99

$

Usually ships in 2-12 days

0

41

Snapper Pro 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

42

Snapper Pro 5025214X9

PIN, CLEVIS, 3/8 X 1-1/8
(Superseded to 5025214X9SM)

$3.99

$

In Stock, only 2 left!

0

43

Snapper Pro 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0

44

Snapper Pro 5404116D

PLATE, OUTER TRANSPORT BRACKET - RED

$

$

Currently unavailable

45

Snapper Pro 5404763D

WELD, BOOMER, LH - RED

$

$

Currently unavailable

46

Snapper Pro 5404765D

WELD, BOOMER, RH - RED

$

$

Currently unavailable

47

Snapper Pro 5404820D

WELD, DECK LOCK - RED

$34.99

$

Usually ships in 2-12 days

0

48

Snapper Pro 5404840D

WELD, DECK LIFT SHAFT, 48 - RED

$

$

Currently unavailable

49

Snapper Pro 5405548D

WELD, DECK LIFT HANDLE - RED

$84.99

$

Usually ships in 2-12 days

0

50

Snapper Pro 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.49

$

In Stock, Qty 15

0

51

Snapper Pro 5405409D

GUARD, DECK TOP, EVO 52 - RED

$100.99

$

Usually ships in 2-12 days

0

52

Snapper Pro 5101895

ROD, DECK LIFT, EVOLUTION 48"

$

$

Currently unavailable

53

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

54

Snapper Pro 5025479

CLEVIS PIN, 1/2 X 1.36 SAE STANDARD
(Superseded to 5025479YP)

$3.99

$

In Stock, only 2 left!

0

55

Snapper Pro 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

56

Snapper Pro 5042658

SPACER, .38 X .75 X 1.06, YZ
(Superseded to 5042658SM)

$7.49

$

In Stock, only 1 left!

0

57

Snapper Pro 5100520

SPACER, .52 X 1.00 X .22, PM, CZ
(Superseded to 5100520SM)

$6.49

$

In Stock, only 2 left!

0

58

Snapper Pro 5048707

ROD, LEVER CONNECTING
(Superseded to 5048707SM)

$16.99

$

In Stock, only 1 left!

0

59

Snapper Pro 5025203X6

PIN, COTTER, 1/8 X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 3 left!

0

60

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

61

Snapper Pro 5101310

POINTER, DECK HEIGHT

$3.49

$

Usually ships in 2-12 days

0

62

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

63

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

64

Snapper Pro 5045023

SPACER, .52 X 1.00 X .44
(Superseded to 5045023SM)

$6.49

$

In Stock, only 1 left!

0

65

Snapper Pro 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

66

Snapper Pro 5100985

ADJUSTER, BRAKE LINKAGE
(Superseded to 5100985YP)

$23.99

$

Usually ships in 2-12 days

0

67

Snapper Pro 5025526

SHIM, .375 X .625 X .031 THK

$

$

Currently unavailable

68

Snapper Pro 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

69

Snapper Pro 5025126
