S 75X (5900859) - Snapper Pro S75X Series 52" Stand-On Mower, 26hp Kawasaki 52" Mower Deck - Rollers Parts Diagram

S75X Series 52" Stand-On Mower, 26hp Kawasaki

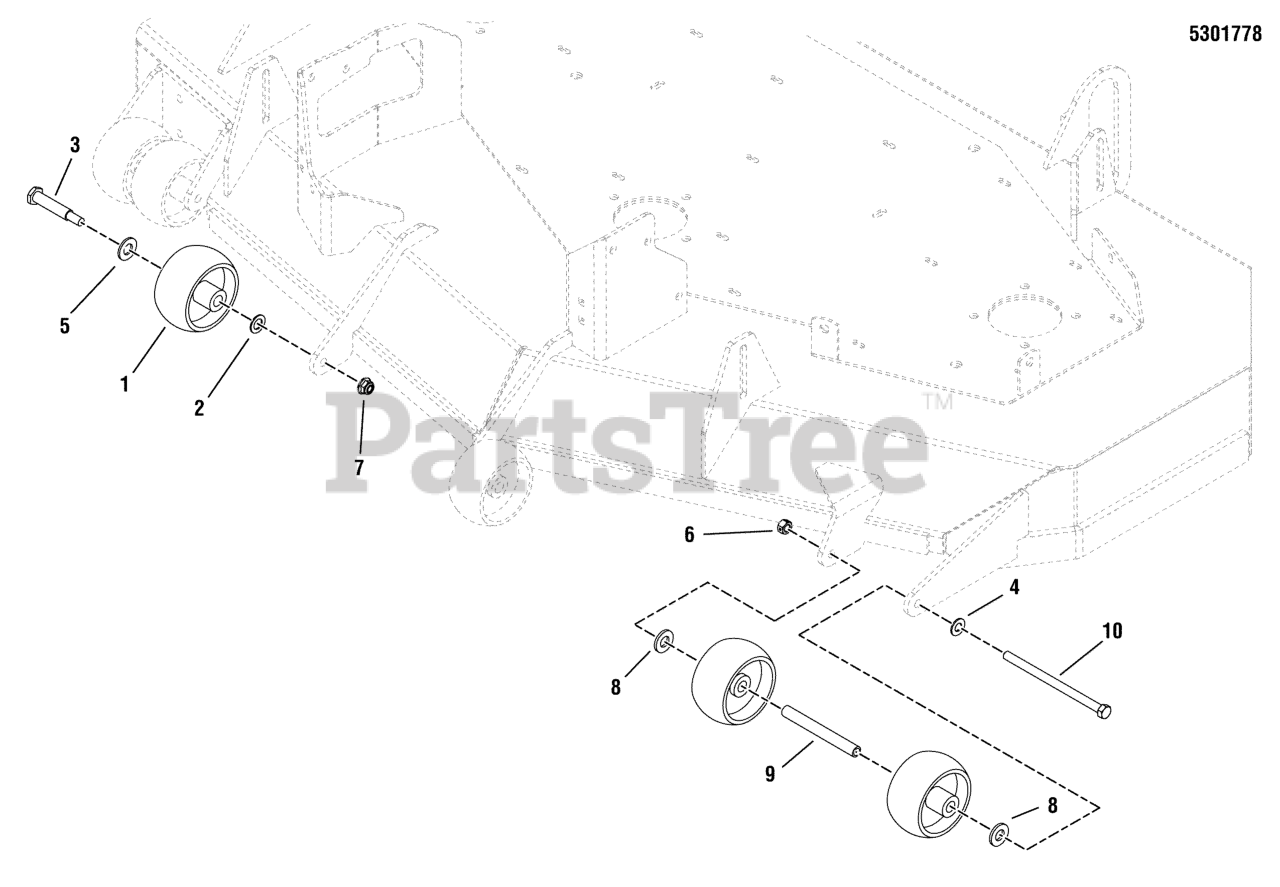

52" Mower Deck - Rollers Parts Diagram

  • Title
1

Snapper Pro 1714760

WHEEL- 2.00 WIDE 3.88 DIA 0.531ID POLY
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

2

Snapper Pro 80003590

WASHER,.516IDX.875ODX.06,FLAT,ZC/CL
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

3

Snapper Pro 2108765

BOLT-WHEEL 3/8-16X2.781 .750 THRD YELLOW
(Superseded to 2108765SM)

$6.49

$

In Stock, Qty 20+

0

4

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

6

Snapper Pro 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

7

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

8

Snapper Pro 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

9

Snapper Pro 5046586

SPACER, .38 X .50 X 5.06
(Superseded to 5046586SM)

$12.99

$

In Stock, Qty 20+

0

10

Snapper Pro 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 20+

0
