S 75X (5900551) - Snapper Pro S75X Series 52" Stand-On Mower, 23hp Kawasaki 52" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

S75X Series 52" Stand-On Mower, 23hp Kawasaki

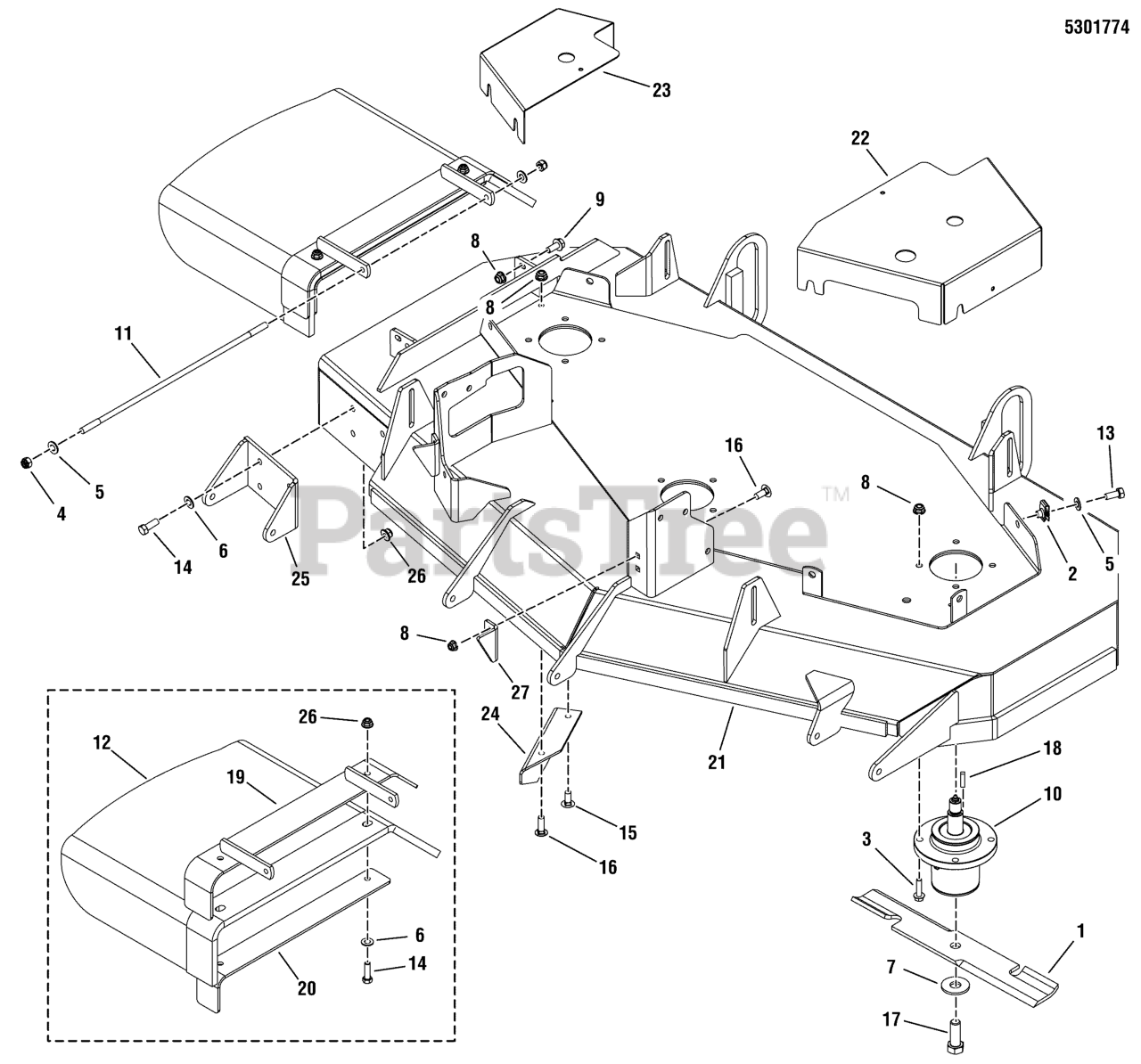

52" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Snapper Pro 5101756S

BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF 3)

$

$

Currently unavailable

2

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

3

Snapper Pro 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

5

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 12

0

8

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

10

Snapper Pro 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer sold seperately)

$231.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5061300

ROD MOUNT, CHUTE 61"
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5402403

CHUTE, DISCHARGE, RUBBER 61/72"
(Superseded to 5402403SM)

$186.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

14

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

15

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

16

Snapper Pro 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

17

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque to 120 ft.lbs (163 Nm))

$3.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

19

Snapper Pro 5405756D

WELD, FRAME, CHUTE, 52 - RED

$52.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5402360A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5402360AYP)

$43.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5600743

DECK SHELL W/ DECALS, 52, S75X

Note: (5405179D)

$

$

Currently unavailable

22

Snapper Pro 5405239D

GUARD, LH PULLEY, EVO 52 - RED

$51.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5405240D

GUARD, 52 MOWER DECK, RH - RED

$30.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5405557A

PLATE, DEFLECTOR - BLK
(Superseded to 5405557AAFS)

Note: (52" Models)

$19.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5408810D

PLATE, BRACKET, ANTI SCALP - RED
(Superseded to 5408810DYP)

$41.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

27

Snapper Pro 5405103D

PLATE, DECK STOP, EVO 48

$

$

Currently unavailable
