S 65Z (2691385-01) - Ferris S65Z Series 48" Zero-Turn Mower, 25hp Briggs & Stratton Suspension Group Parts Diagram

S65Z Series 48" Zero-Turn Mower, 25hp Briggs & Stratton

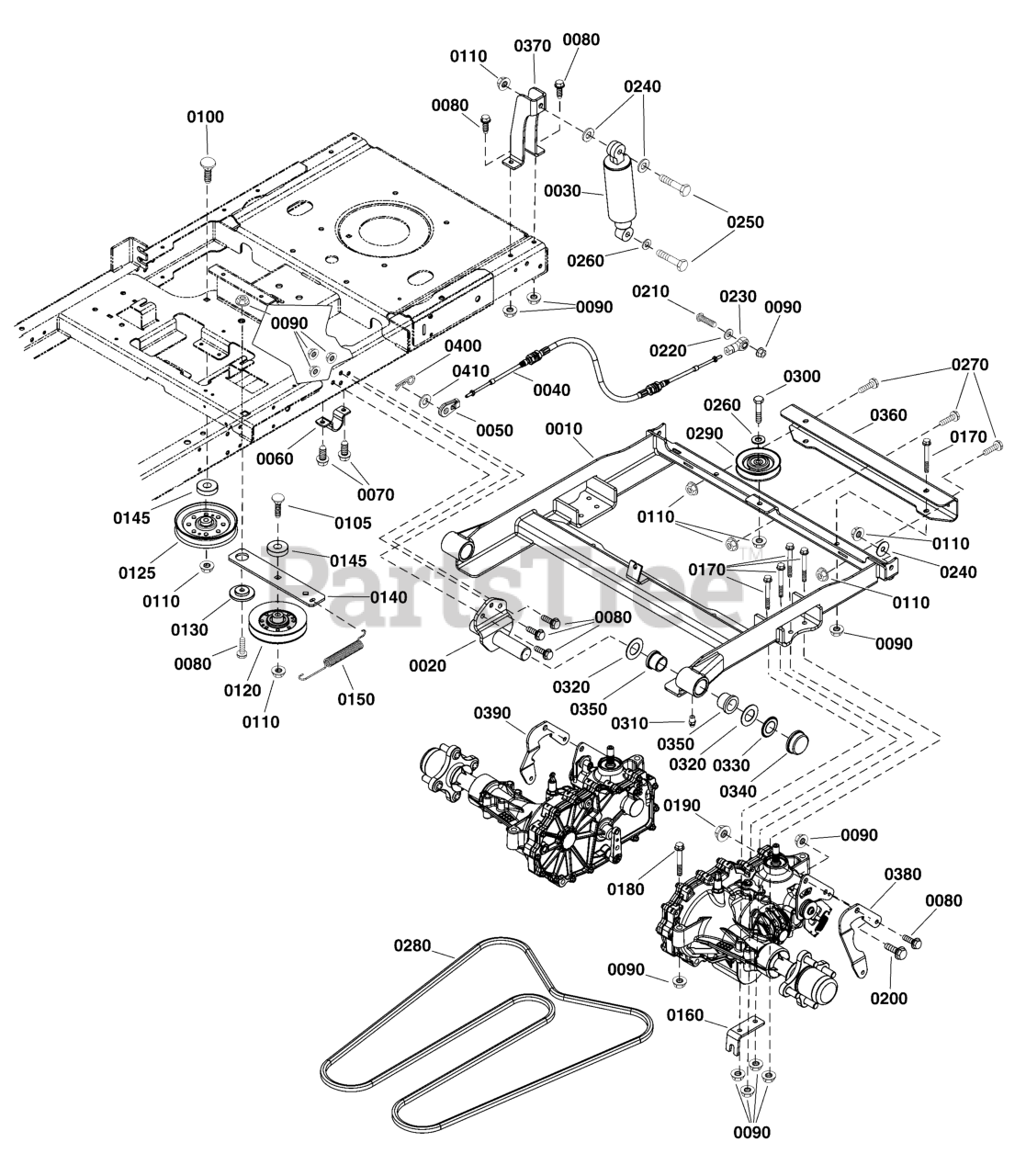

Suspension Group Parts Diagram

  • Title

0010

Ferris 1758718BYP

CARRIER, Transmission

$478.99

$

Usually ships in 2-12 days

0

0020

Ferris 1758716BYP

ARM-LINK

$49.99

$

Usually ships in 2-12 days

0

0030

Ferris 1755531YP

*ABSORBER, Shock

$118.99

$

Usually ships in 2-12 days

0

0040

Ferris 1759206YP

CABLE, Push/Pull

$158.99

$

In Stock, only 4 left!

0

0050

Ferris 1759413YP

END-CABLE

$10.99

$

Usually ships in 2-12 days

0

0060

Ferris 1720147SM

STRAP, Shaft
(Superseded to 1720147BZYP)

$9.99

$

Usually ships in 2-12 days

0

0070

Ferris 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0080

Ferris 770697

SCREW, Hex Flange, 5/16-18 x 1

$

$

Not available

0090

Ferris 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0100

Ferris 703858

BOLT, 3/8-16X1.75

$4.99

$

In Stock, Qty 6

0

0105

Ferris 703872

SCREW

$4.99

$

In Stock, Qty 20+

0

0110

Ferris 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0120

Ferris 1759212YP

PULLEY

$57.99

$

In Stock, only 1 left!

0

0125

Ferris 5103456YP

PULLEY-IDLER-V, 4.85OB, .38ID
(Superseded to 84004874)

$33.99

$

Usually ships in 2-12 days

0

0130

Ferris 1727935SM

SPACER-PIVOT 0.330ID

$5.99

$

In Stock, only 1 left!

0

0140

Ferris 1761878AYP

ARM, IDLER

$13.99

$

Usually ships in 2-12 days

0

0145

Ferris 5044960SM

SPACER, .39 X 1.00 X

$5.49

$

In Stock, Qty 7

0

0150

Ferris 1758045YP

SPRING-EXTENSION

$8.49

$

In Stock, only 3 left!

0

0160

Ferris 1758822AYP

MOUNT, Cable

$13.99

$

Usually ships in 2-12 days

0

0170

Ferris 707943

SCREW

$5.99

$

Usually ships in 2-12 days

0

0180

Ferris 707944

SCREW, Washer Head, 5/16-18 X 2 1/4

$4.99

$

Usually ships in 2-12 days

0

0190

Ferris 1930650SM

NUT-HEX FLANGE 7/16-1

$5.49

$

In Stock, only 4 left!

0

0200

Ferris 1960043SM

SCREW-HEX WZ LOCK FLN

$7.49

$

Usually ships in 2-12 days

0

0210

Ferris 703172

SCREW

$3.99

$

Usually ships in 2-12 days

0

0220

Ferris 703302

WASHER, 5/16

$4.49

$

In Stock, Qty 20+

0

0230

Ferris 5101801YP

JOINT-BALL

$19.99

$

Usually ships in 2-12 days

0

0240

Ferris 5025165SM

WASHER, 3/8" FENDER

$3.99

$

In Stock, only 2 left!

0

0250

Ferris 1921971SM

BOLT, 3/8-16 X 1-3/4, GR 5, CZ
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

0260

Ferris 71072MA

WASHER, FLAT .406X.81

$4.49

$

In Stock, only 4 left!

0

0270

Ferris 5025390X8YP

BOLT, Flange, 3/8-16 X 1, GR 5
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

0280

Ferris 885714YP

BELT, DECK

$81.99

$

In Stock, Qty 20+

0

0290

Ferris 885482YP

PULLEY, DECK IDLER

$33.99

$

In Stock, only 1 left!

0

0300

Ferris 703872

SCREW

$4.99

$

In Stock, Qty 20+

0

0310

Ferris 1704314SM

LUBE FITTING, .250 DR
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0320

Ferris 703199

WASHER, 1

$4.99

$

In Stock, only 2 left!

0

0330

Ferris 703200

PUSHNUT

$4.99

$

Usually ships in 2-12 days

0

0340

Ferris 094618MA

HUB CAP

$5.99

$

In Stock, only 4 left!

0

0350

Ferris 1758717YP

BUSHING

$8.99

$

Usually ships in 2-12 days

0

0360

Ferris 1759163BYP

SUPPORT-TRANSAXLE

$42.99

$

Usually ships in 2-12 days

0

0370

Ferris 1758778BYP

MOUNT

$34.99

$

Usually ships in 2-12 days

0

0380

Ferris 1759021AYP

ARM

$25.99

$

Usually ships in 2-12 days

0

0390

Ferris 1759022AYP

ARM

$24.99

$

Usually ships in 2-12 days

0

0400

Ferris 403162MA

PIN, Hair, 3/32 X 1.6

$

$

Not available

0410

Ferris 703878

WASHER, FLAT

$3.99

$

In Stock, Qty 20+

0
