S 65Z (2691385-01) - Ferris S65Z Series 48" Zero-Turn Mower, 25hp Briggs & Stratton Electrical Group Parts Diagram

S65Z Series 48" Zero-Turn Mower, 25hp Briggs & Stratton

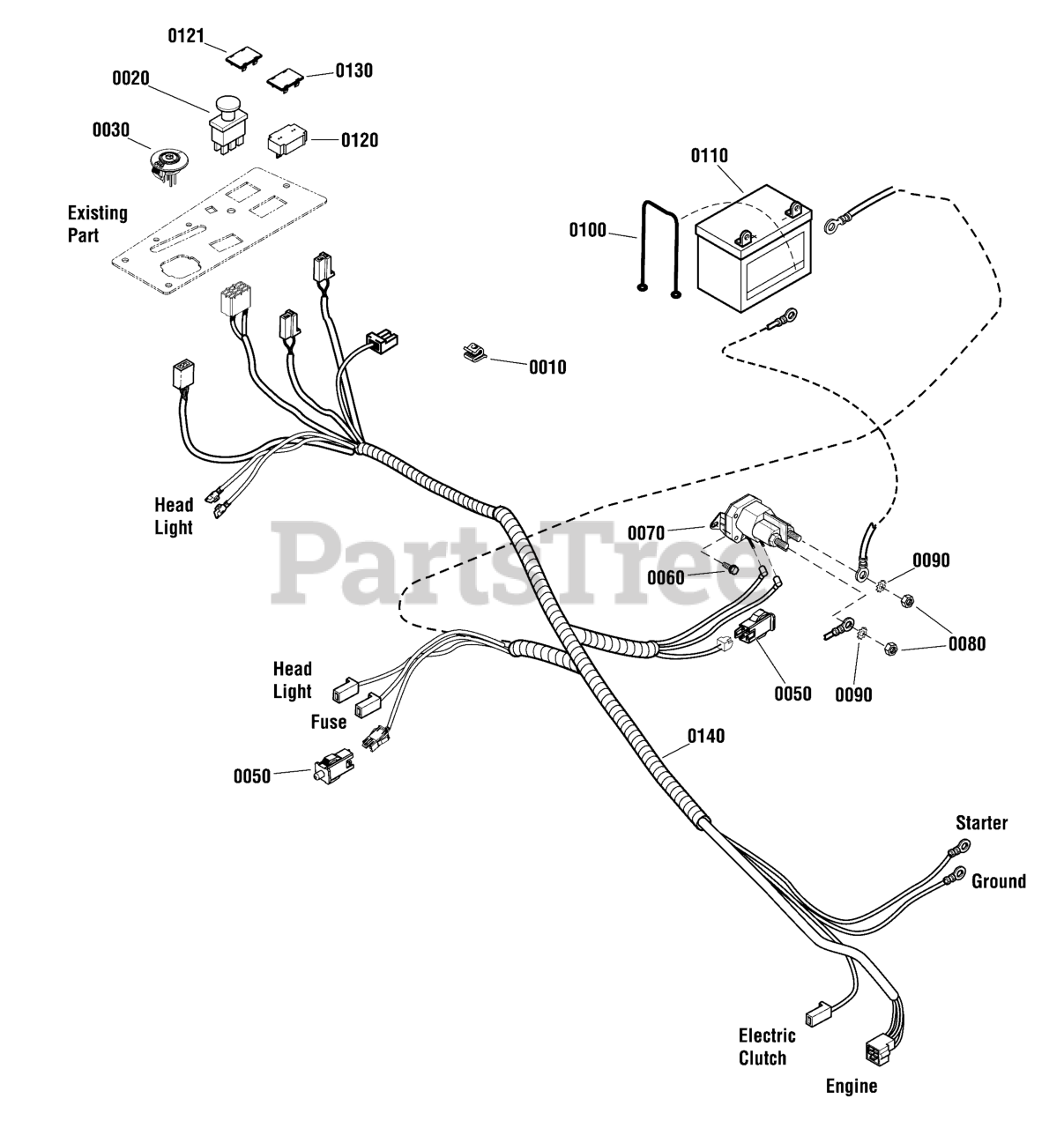

Electrical Group Parts Diagram

  • Title

0010

Ferris 2172434SM

CLIP- WIRE DIA .390

$4.99

$

Usually ships in 2-12 days

0

0020

Ferris 1722887SM

SWITCH-PTO PUSH

$33.99

$

In Stock, Qty 20+

0

0030

Ferris 7106169YP

SWITCH, IGNITION, DEL

$17.99

$

In Stock, Qty 20+

0

0050

Ferris 7022886YP

SWITCH, DP NO/NC SNAP

$14.99

$

In Stock, Qty 20+

0

0060

Ferris 1960252SM

BOLT-RD HD SH SQ NK 1

$3.99

$

In Stock, only 1 left!

0

0070

Ferris 1755382YP

SOLENOID

$29.99

$

In Stock, Qty 20+

0

0080

Ferris 703463

NUT, GR5,1/4-20

$4.49

$

In Stock, Qty 20+

0

0090

Ferris 703061

NUT, HEX KEPS, 1/4-20

$3.49

$

In Stock, Qty 11

0

0100

Ferris 1722009SM

STRAP, Rubber, 13"

$10.99

$

In Stock, only 1 left!

0

0110

BATTERY, 12 VOLT, 230 CCA

Note: (Not a Serviceable part)

$

$

Not available

0120

Ferris 1731185SM

METER-HOUR DIGITAL NO

$60.99

$

In Stock, only 2 left!

0

0121

Ferris 1729993SM

PLUG, Hole, 1.180 X 1.690

$4.49

$

Usually ships in 2-12 days

0

0130

Ferris 1722611SM

PLUG-HOLE BLACK

$6.99

$

In Stock, only 1 left!

0

0140

Ferris 1758084YP

HARNESS, Main, ZTR
(Superseded to 84002334)

$158.99

$

Usually ships in 2-12 days

0
