S 65Z (2691385-00) - Ferris S65Z Series 48" Zero-Turn Mower, 25hp Briggs & Stratton 48" Mower Deck - Clutch & Support Group Parts Diagram

S65Z Series 48" Zero-Turn Mower, 25hp Briggs & Stratton

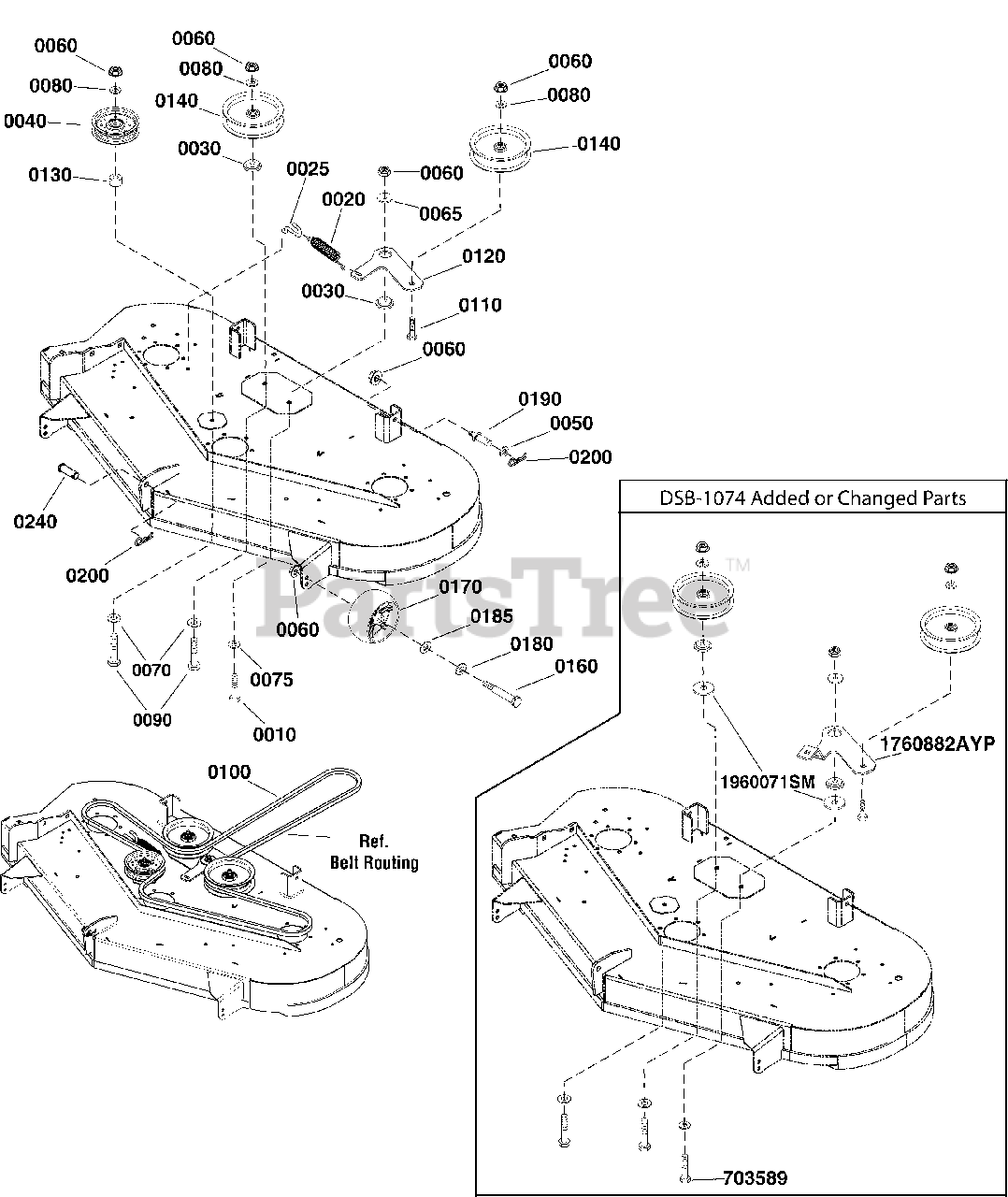

48" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

0010

Ferris 703406

CAPSCREW,3/8-16X1.5

$4.99

$

In Stock, only 1 left!

0

0020

Ferris 1715772SM

SPRING, Extension

$13.99

$

In Stock, Qty 20+

0

0025

Ferris 1758170YP

ANCHOR, Spring

$8.49

$

In Stock, only 1 left!

0

0030

Ferris 706128

SPACER, IDLER

$6.99

$

In Stock, only 4 left!

0

0040

Ferris 1757823YP

PULLEY-IDLER 4"

$22.99

$

In Stock, Qty 14

0

0050

Ferris 703853

WASHER, 0.516IDX1OD

$4.99

$

In Stock, Qty 20+

0

0060

Ferris 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0065

Ferris 5025305SM

WASHER, .41 X 1.75 X

$3.99

$

In Stock, only 3 left!

0

0070

Ferris 703591

WASHER, .406X1.5X.12

$5.49

$

In Stock, Qty 20+

0

0075

Ferris 1919384SM

WASHER-0.375(0.44IDX1

$5.49

$

In Stock, only 1 left!

0

0080

Ferris 703878

WASHER, FLAT

$3.99

$

In Stock, Qty 20+

0

0090

Ferris 703133

HHCS,3/8-16X2.750

$3.99

$

Usually ships in 2-12 days

0

0100

Ferris 84003367

V-BELT, HA

$71.99

$

In Stock, Qty 20+

0

0110

Ferris 7900009SM

RHSSNB, 3/8-16 X 2-1/

$3.99

$

In Stock, only 1 left!

0

0120

Ferris 1758073AYP

ARM, Idler

$13.99

$

In Stock, only 1 left!

0

0130

Ferris 1667812SM

SPACER

$5.99

$

In Stock, Qty 16

0

0140

Ferris 7034422SM

(C) PULLEY, FLAT IDLE

$38.99

$

In Stock, Qty 20+

0

0160

Ferris 1736539YP

BOLT, SHOULDER

$8.99

$

Usually ships in 2-12 days

0

0170

Ferris 1736896YP

WHEEL, GAUGE

$16.99

$

In Stock, only 4 left!

0

0180

Ferris 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 8

0

0185

Ferris 0020X3MA

WASHER,SPRING .52X.99

$4.49

$

Usually ships in 2-12 days

0

0190

Ferris 704054

PIN, 3/8-16

$7.49

$

In Stock, Qty 20+

0

0200

Ferris 403162MA

PIN, Hair, 3/32 X 1.6

$

$

Not available

0240

Ferris 5025479YP

CLEVIS PIN, 1/2 X 1.3

$3.99

$

In Stock, only 2 left!

0
