S 65Z (2691384-01) - Ferris S65Z Series 42" Zero-Turn Mower, 25hp Briggs & Stratton Engine Group Parts Diagram

S65Z Series 42" Zero-Turn Mower, 25hp Briggs & Stratton

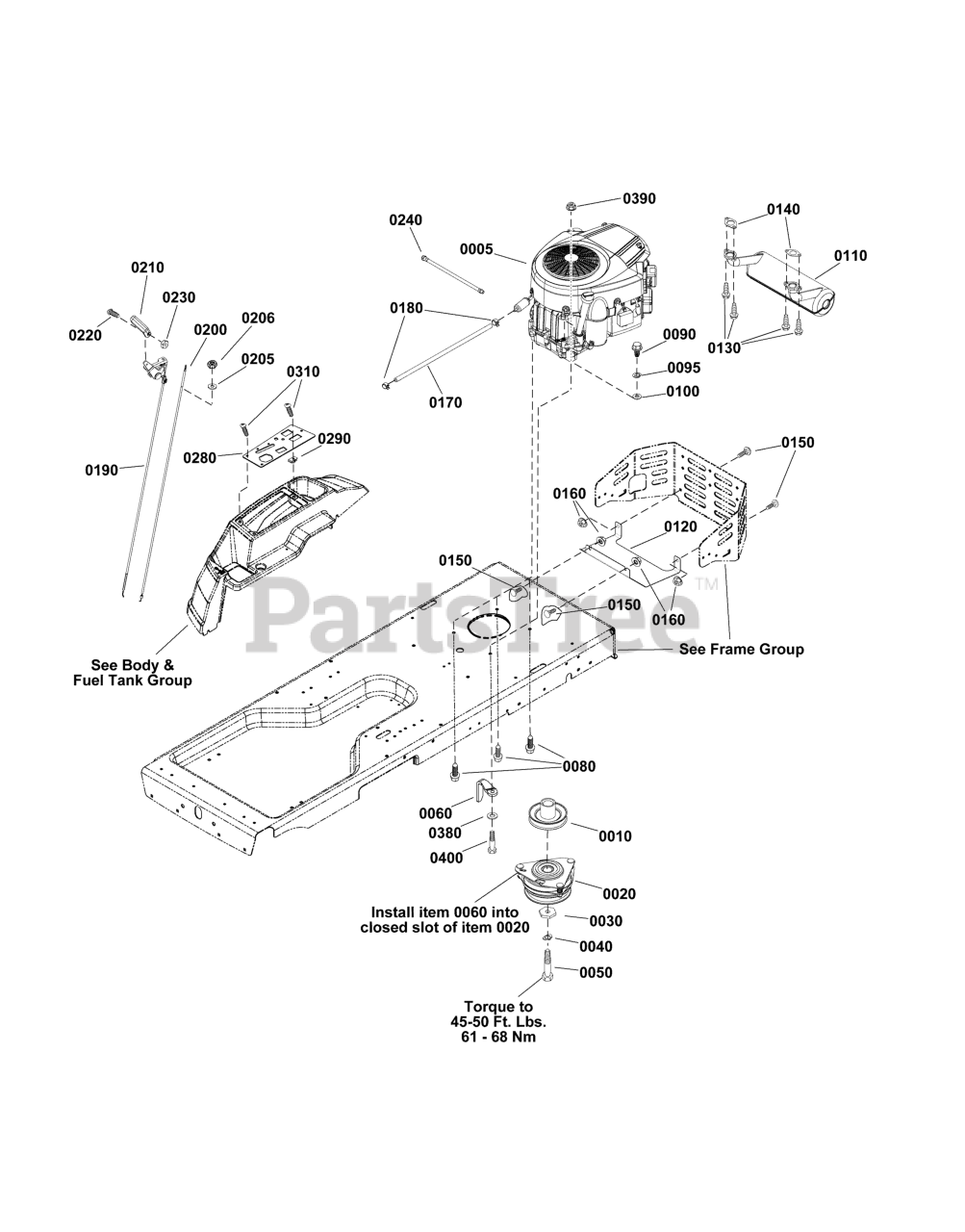

Engine Group Parts Diagram

  • Title

0005

* ENGINE, 25 Gross HP B&S PRO Series Twin

Note: (Engine Model: 44T977-0006-G1)

$

$

Not available

0010

Ferris 1757995YP

ASSEMBLY-PULLEY

$39.99

$

Usually ships in 2-12 days

0

0020

Ferris 1736105SM

CLUTCH, ELECTRIC

$387.99

$

Usually ships in 2-12 days

0

0030

Ferris 1708264SM

WASHER, HEX, 0.453ID

$8.99

$

In Stock, Qty 5

0

0040

Ferris 704007

LCKWSHR,7/16,SPLIT RE

$4.49

$

In Stock, Qty 20+

0

0050

Ferris 1960649SM

CAPSCREW, Hex Head, 7/16-20 X 3 1/2, G5

$7.49

$

In Stock, only 1 left!

0

0060

Ferris 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, Qty 10

0

0080

Ferris 2828635SM

SCREW-HEX WSHR HD TAP

$4.99

$

In Stock, Qty 20+

0

0090

Ferris 703054

SCREW, 1/4-20X0.625

$4.49

$

In Stock, Qty 9

0

0095

Ferris 703332

WASHER

$4.49

$

In Stock, Qty 20+

0

0100

Ferris 1921880SM

LOCKWASHER-EXTERNALTO

$3.49

$

Usually ships in 2-12 days

0

0110

Ferris 1758350YP

MUFFLER

$225.99

$

Usually ships in 2-12 days

0

0120

Ferris 1759502AYP

SHIELD, Heat

$63.99

$

In Stock, only 1 left!

0

0130

Ferris 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

0140

Ferris 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

0150

Ferris 703185

RHSSNB

$3.49

$

In Stock, Qty 20+

0

0160

Ferris 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0170

Ferris 327290MA

HOSE, Fuel
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

0180

Ferris 93053B

CLAMP, Hose

$

$

Not available

0190

Ferris 1759205YP

CONTROL-THROTTLE

$43.99

$

In Stock, only 3 left!

0

0200

Ferris 5046501SM

CABLE, CHOKE CONTROL,

$55.99

$

In Stock, only 1 left!

0

0205

Ferris 703864

WASHER, EXT, 3/8

$4.49

$

Usually ships in 2-12 days

0

0206

Ferris 703895

NUT, HEX, 3/8-24

$4.49

$

In Stock, only 2 left!

0

0210

Ferris 1739312YP

KNOB, THROTTLE

$11.99

$

Usually ships in 2-12 days

0

0220

Ferris 797483

SCREW

$4.49

$

Usually ships in 2-12 days

0

0230

Ferris 703460

NUT, HEX, ZINC, #8-32

$3.99

$

In Stock, Qty 9

0

0240

Ferris 1726498SM

HOSE-OIL DRAIN .375ID

$26.99

$

Usually ships in 2-12 days

0

0280

Ferris 1759430AYP

PANEL, Control

$15.99

$

Usually ships in 2-12 days

0

0280

Ferris 1759429AYP

PANEL, Control

$37.99

$

Usually ships in 2-12 days

0

0290

Ferris 705876

NUT

$4.49

$

In Stock, Qty 20+

0

0310

Ferris 7090999SM

SCREW, Pan Head, 1/4-20 X 5/8
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

0380

Ferris 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

0390

Ferris 5025392SM

NUT, Ny Lock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0400

Ferris 5025011X14SM

BOLT, 5/16-18 X 1-3/4

$3.99

$

In Stock, Qty 20+

0
