S 621 SS (12A-979U100) - Cub Cadet Walk-Behind Mower (2001) Speed Assembly Parts Diagram

Walk-Behind Mower

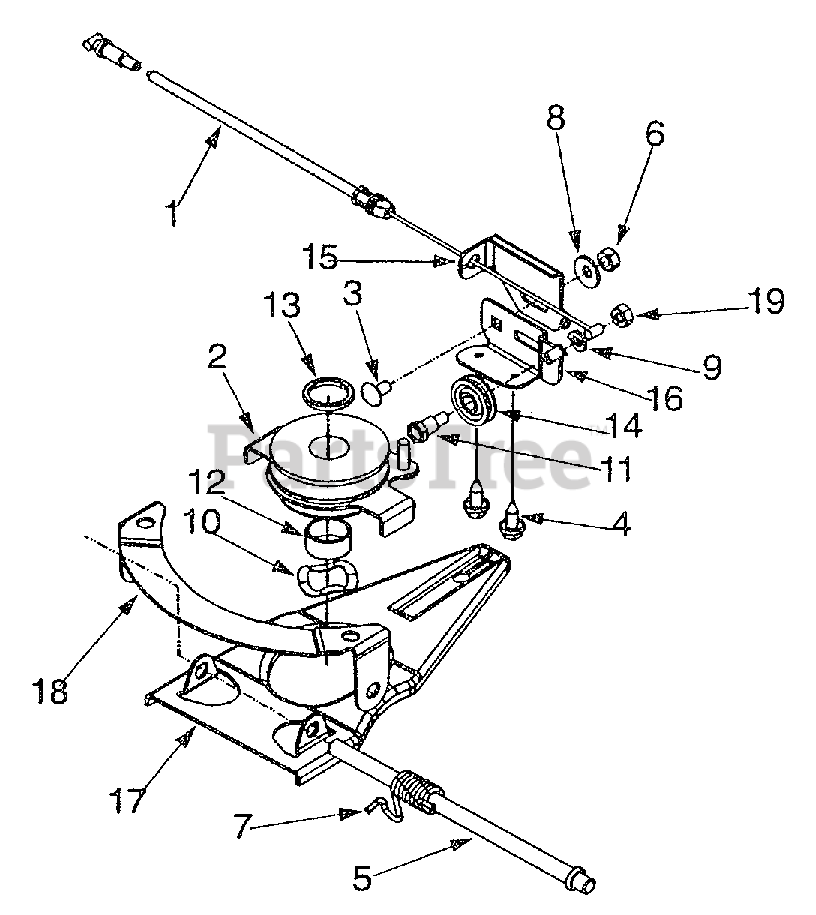

Speed Assembly Parts Diagram

  • Title
1

Cub Cadet 746-0939

6 Spd. Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

2

Cub Cadet 656-0613

Pulley Ass'y Multi-Spd.
(Superseded to 956-0613A)

$72.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-0167

Scr. 1/4-20 x .50 Carr.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0896

Scr. AB 1/4-14 x .625 Hxinwsh

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 711-1114

Pivot Shaft

$12.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-3006

Nut 1/4-20

$4.99

$

In Stock, Qty 19

0

7

Cub Cadet 732-0807

Torsion Spring LH
(Superseded to 932-0807)

$7.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0270

Bell Wash. .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0329

Lock Wash. 1/4 Reg Duty
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

Cub Cadet 736-0526

Wave Wash. 1.38 x .88 x .029

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 738-0924

Shld. Scr. .375 x 1/4-14 AB
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

12

Cub Cadet 750-1070

Slev Spcr .88 ID x 1.00 OD x .48
(Superseded to 950-1070)

$5.99

$

In Stock, Qty 9

0

13

Cub Cadet 750-1071

Slev Spcr .88 ID x 1.13 ID x .12
(Superseded to 950-1071)

$4.49

$

In Stock, Qty 5

0

14

Cub Cadet 756-0625

Roller Cable

$9.49

$

In Stock, Qty 14

0

15

Cub Cadet 782-7574A

6 Spd. Cable Adj. Bracket
(Superseded to 782-7574A-0637)

Variations

Cub Cadet 782-7574A-0637

Cable Adjusting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

16

Cub Cadet 782-7575A

6 Spd. Cable Mt. Bracket
(Superseded to 782-7575B-0637)

Variations

Cub Cadet 782-7575A-0637

Cable Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

17

Cub Cadet 782-7596

6 Sp. Control Arm
(Superseded to 782-7596A)

Variations

Cub Cadet 782-7596-0637

Control Arm, 6-Speed - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 782-7597

6 Sp. Pivot Bracket

Variations

Cub Cadet 782-7597-0637

Pivot Bracket - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

19

Cub Cadet 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0
