S 621 SS (12A-979U100) - Cub Cadet Walk-Behind Mower (2001) Handle & Bag Parts Diagram

Walk-Behind Mower

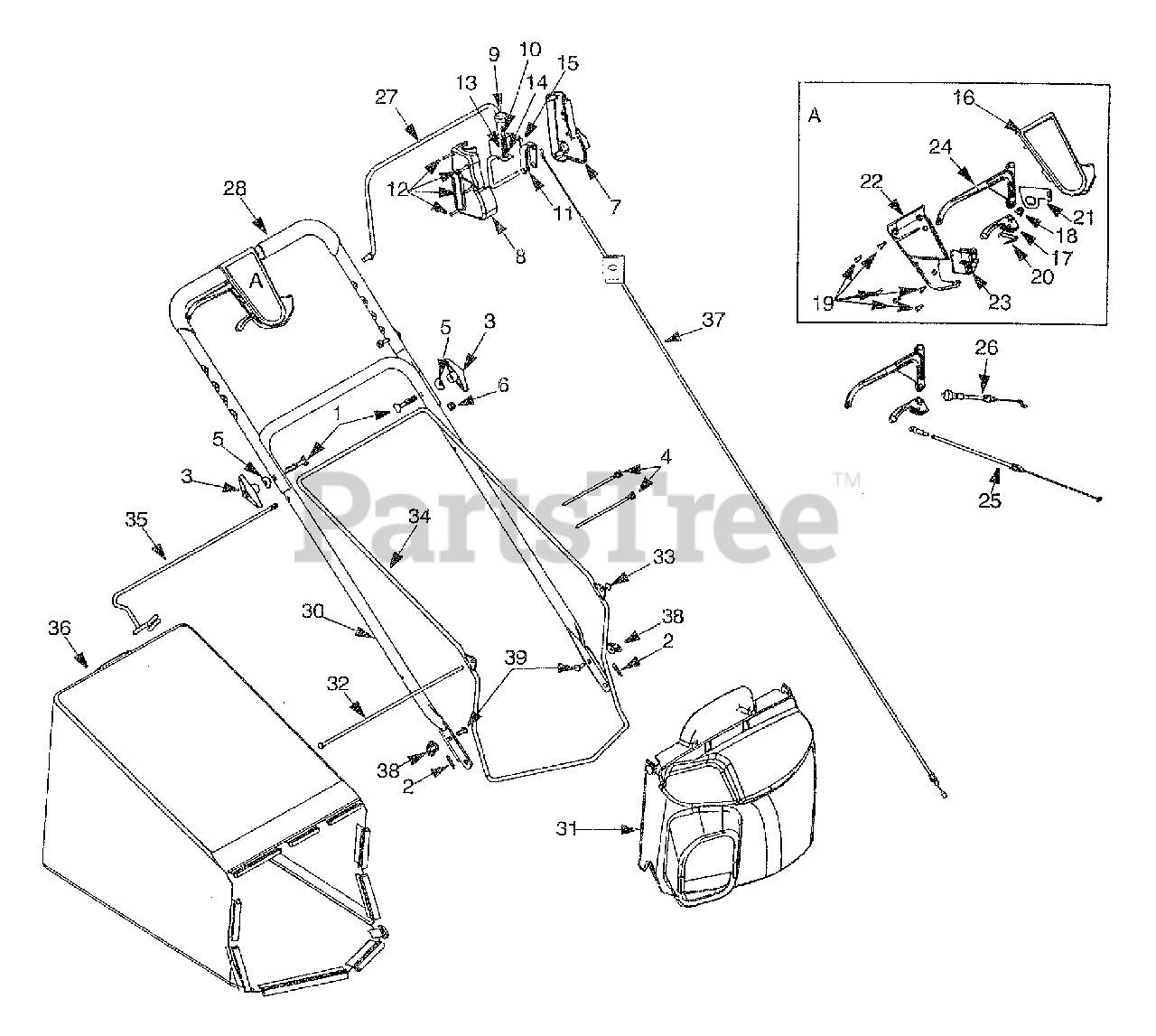

Handle & Bag Parts Diagram

  • Title

1

Cub Cadet 710-1174

Bolt Cur. Carr. 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

2

Cub Cadet 714-0104

Cotter Pin .072 x 1.12 Lg.

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 720-0241

Knob Ass'y Wing Nut 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

4

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0451

Wash. Sad. .320 ID x.830 OD

$4.49

$

In Stock, Qty 11

0

6

Cub Cadet 712-0429

Hex Nut 5/16

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 731-2532

Control Cover LH

$

$

Not available

8

Cub Cadet 731-2533

Control Cover RH

$

$

Not available

9

Cub Cadet 720-0428

Button

$8.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 715-0168

Pin

$

$

Not available

11

Cub Cadet 782-0156

Lever

$

$

Not available

12

Cub Cadet 710-1256

Hi-Low Screw

$5.99

$

In Stock, only 2 left!

0

13

Cub Cadet 732-1171

Compression Spring

$

$

Not available

14

Cub Cadet 716-0209

Retention Spring

$

$

Not available

15

Cub Cadet 732-1172

Torsion Spring

$

$

Not available

16

Cub Cadet 731-0904A

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

17

Cub Cadet 731-0924

6-Speed Shift Lever

$

$

Not available

18

Cub Cadet 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

19

Cub Cadet 710-1667A

C-Sunk Tap Screw #10 x .75 L

$4.49

$

In Stock, Qty 13

0

20

Cub Cadet 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

21

Cub Cadet 16864

6-Speed Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-0905A

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

23

Cub Cadet 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

24

Cub Cadet 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

25

Cub Cadet 746-0939

6-Speed Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

26

Cub Cadet 746-0711A

Self-Propelled Cable
(Superseded to 946-0711B)

$32.99

$

In Stock, only 1 left!

0

27

Cub Cadet 647-0058

Control Handle
(Superseded to 647-0058-0637)

$

$

Not available

28

Cub Cadet 720-0294

Foam Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, only 3 left!

0

?29

Cub Cadet 749-1405

Upper Handle
(Superseded to 749-1405A-0637)

Variations

Cub Cadet 749-1405-0637

USE 749-1405A-0637 HANDLE-UPR - POWDER BLACK (0637)

$

$

Not available

$

$

30

Cub Cadet 749-0907A

Lower Handle
(Superseded to 749-0907B)

Variations

Cub Cadet 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

31

Cub Cadet 631-0071

Grassbag Cover w/Label

$103.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 747-0937

Grassbag Frame
(Superseded to 747-0937-0637)

Variations

Cub Cadet 747-0937-0637

Grass Catcher Bag Frame, Upper - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 747-0940A

Support Rod w/Rope Guide
(Superseded to 747-0940A-0637)

Variations

Cub Cadet 747-0940A-0637

Grass Support Rod - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 664-0111

Grass Bag
(Superseded to 964-0076A)

$98.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 746-1141

Control Cable 58.25"
(Superseded to 946-1141)

$52.99

$

In Stock, only 3 left!

0

38

Cub Cadet 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 710-0703

Carriage Bolt 1/4-20

$4.49

$

In Stock, Qty 20+

0
