S 621 (12A-959I101) - Cub Cadet Walk-Behind Mower (1999) Handle Parts Diagram

Walk-Behind Mower

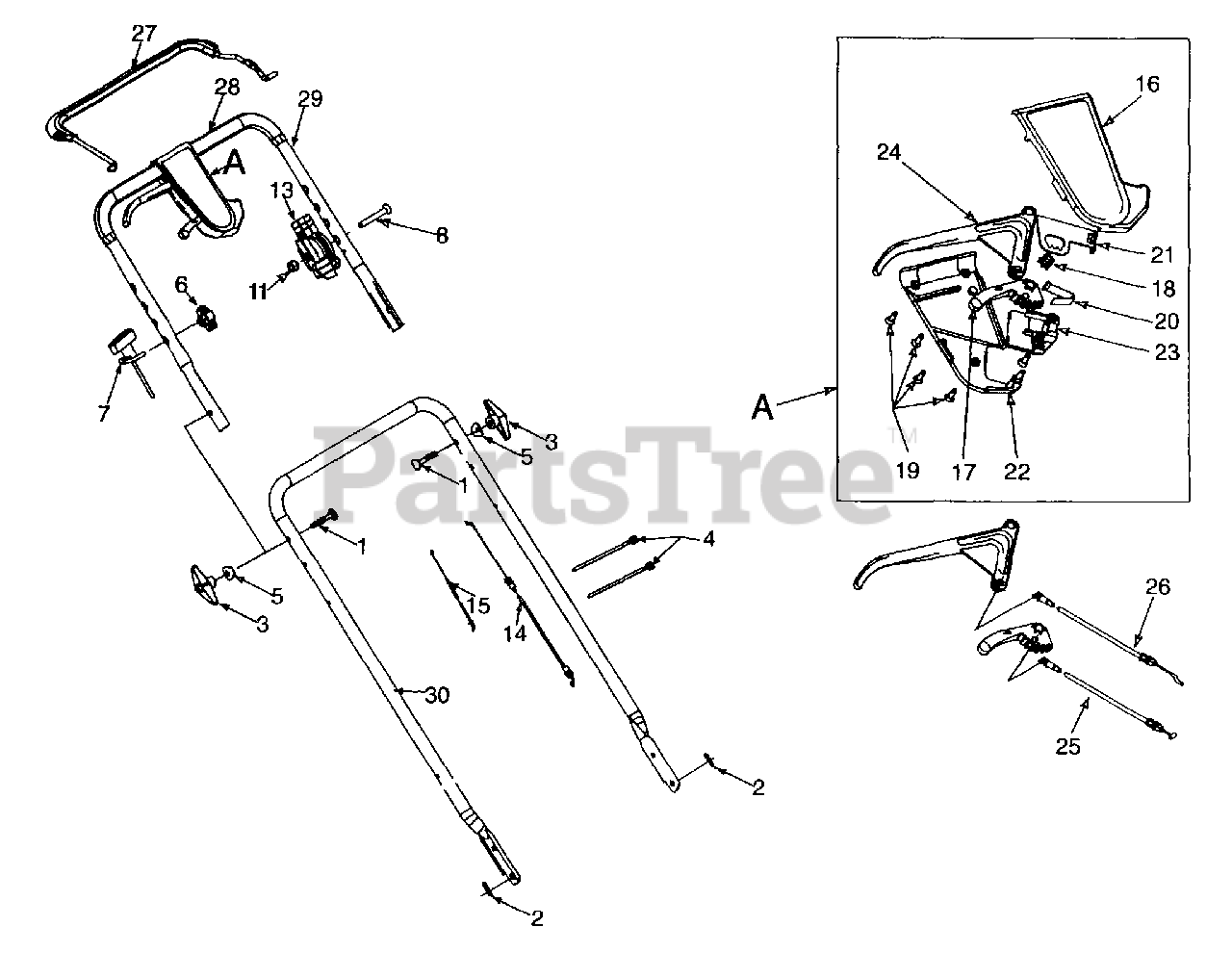

Handle Parts Diagram

  • Title
1

Cub Cadet 710-1174

Bolt Curv. Carr. 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

2

Cub Cadet 714-0104

Cotter Pin .072 x 1.12 Lg.

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 720-0241

Knob Assembly
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

4

Cub Cadet 726-0240

Strap
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

5

Cub Cadet 736-0451

Wash. Sad. .320 ID x .830 OD

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 720-0279

Knob Handle ERS - 1/4-20

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-1205

Rope Guide Eyebolt

$3.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-0324

Nut 1/4-20 Top lock Nut Insert

$3.99

$

In Stock, Qty 17

0

13

Cub Cadet 746-0883

Control Housing

$16.99

$

In Stock, only 4 left!

0

14

Cub Cadet 746-0912

Control Cable 44" Lg.
(Superseded to 946-0912)

$26.99

$

In Stock, only 1 left!

0

15

UNKNOWN

$

$

Not available

16

Cub Cadet 731-0904A

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

17

Cub Cadet 731-0924

6 Speed Shift Lever

$

$

Not available

18

Cub Cadet 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

19

Cub Cadet 710-1667

C Sunk Tap Scr #10 x .75 L
(Superseded to 710-1667A)

$4.49

$

In Stock, Qty 13

0

20

Cub Cadet 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

21

Cub Cadet 16864

6 Spd. Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-0905A

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

23

Cub Cadet 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

24

Cub Cadet 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

25

Cub Cadet 746-0939

6 Spd. Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

26

Cub Cadet 746-0710A

S.P. Cable
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

27

Cub Cadet 647-0004

Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

28

Cub Cadet 720-0294

Foam Grip
(Superseded to 720-0294A)

Note: (2 Reqd.)

$7.49

$

In Stock, Qty 5

0

29

Cub Cadet 749-0438B

Upper Handle
(Superseded to 749-0438D-0637)

Variations

Cub Cadet 749-0438B-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

30

Cub Cadet 749-0907

Lower Handle
(Superseded to 749-0907B)

Variations

Cub Cadet 749-0907-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0
