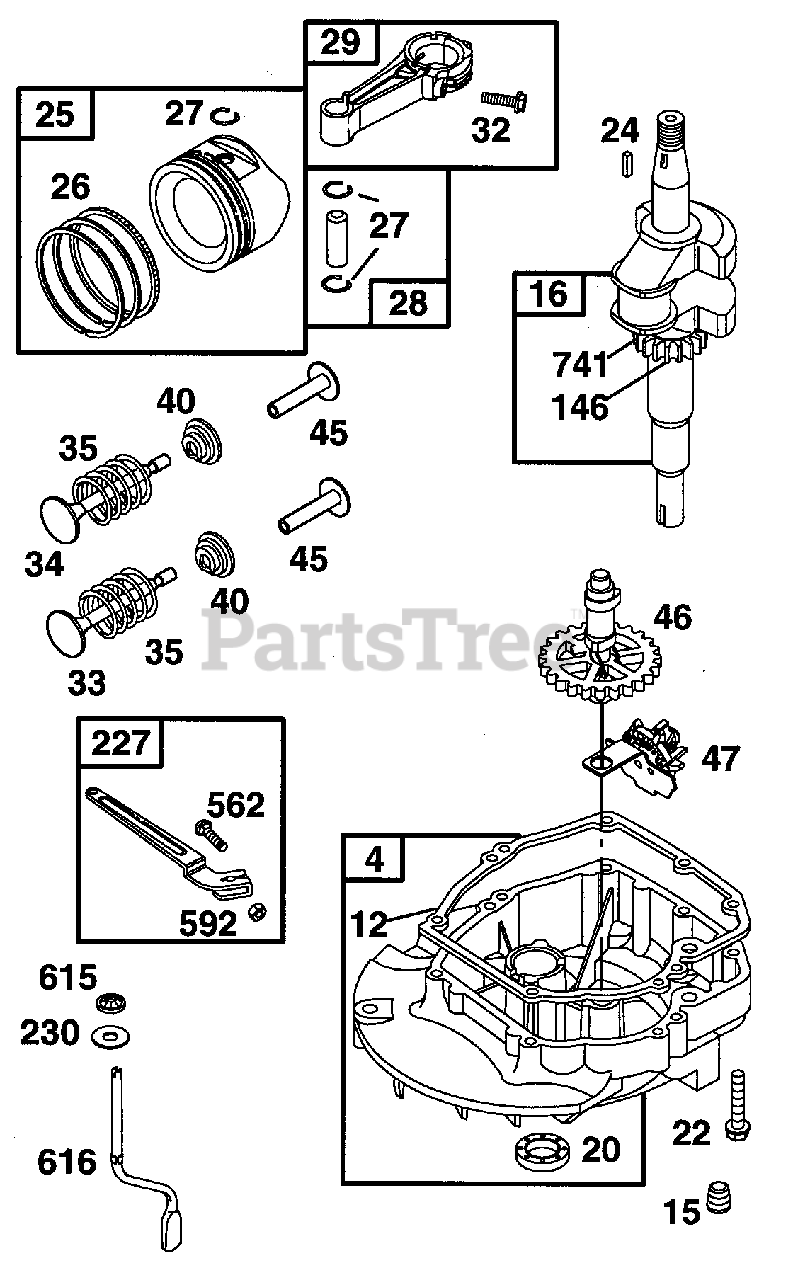

S 621 (12A-959D100) - Cub Cadet Walk-Behind Mower Engine (1997) Base, Oil Filter & Internal Parts Parts Diagram

Walk-Behind Mower Engine

Base, Oil Filter & Internal Parts Parts Diagram

  • Title
4

Cub Cadet BS-493279

Sump-Engine

$120.99

$

In Stock, only 2 left!

0

12

Cub Cadet BS-272198

Gasket-Crankcase
(Superseded to BS-692232)

$5.99

$

In Stock, Qty 20+

0

15

Cub Cadet BS-94720

Plug-Oil Drain
(Superseded to BS-691680)

$5.99

$

In Stock, only 1 left!

0

16

Cub Cadet BS-498565

Crankshaft
(Superseded to BS-797018)

$179.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-399781

Seal-Oil
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-94220

Screw-Hex Head
(Superseded to BS-691092)

Note: P/N 94612 Screw-Hex Head One used in hole nearest Breather.

$3.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-499433

Piston Assy (Std)

$

$

Currently unavailable

26

Cub Cadet BS-499425

Ring Set (Std)

$

$

Not available

27

Cub Cadet BS-263190

Lock-Piston Pin
(Superseded to BS-691866)

$4.49

$

In Stock, Qty 8

0

28

Cub Cadet BS-499423

Pin-Piston (Std)

$9.49

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-499424

Rod-Connecting
(Superseded to BS-590406)

$87.99

$

In Stock, only 1 left!

0

32

Cub Cadet BS-94699

Screw-Connecting Rod

$

$

Not available

33

Cub Cadet BS-262651

Valve-Exhaust

$

$

Not available

34

Cub Cadet BS-262652

Valve-Intake

$

$

Not available

35

Cub Cadet BS-262224

Spring-Valve
(Superseded to BS-691270)

$5.49

$

In Stock, Qty 7

0

40

Cub Cadet BS-93312

Retainer-Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 9

0

45

Cub Cadet BS-262204

Tappet-Valve
(Superseded to BS-690548)

$9.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-498275

Gear-Cam
(Superseded to BS-691449)

$73.99

$

In Stock, only 1 left!

0

47

Cub Cadet BS-493737

Slinger-Oil
(Superseded to BS-691997)

$25.99

$

Usually ships in 2-12 days

0

146

Cub Cadet BS-94388

Key-Timing
(Superseded to BS-690979)

$3.49

$

In Stock, Qty 7

0

227

Cub Cadet BS-492349

Lever Assy-Governor
(Superseded to BS-690783)

$15.99

$

Usually ships in 2-12 days

0

230

Cub Cadet BS-67072

Washer-Governor Crank
(Superseded to BS-690272)

$3.99

$

In Stock, only 2 left!

0

562

Cub Cadet BS-92613

Bolt-Carriage

$

$

Not available

592

$

$

Not available

615

Cub Cadet BS-94474

Nut-Push
(Superseded to BS-690340)

$4.49

$

In Stock, Qty 10

0

616

Cub Cadet BS-263175

Crank-Governor

$

$

Not available

741

Cub Cadet BS-262598

Gear-Timing
(Superseded to BS-691830)

$17.99

$

Usually ships in 2-12 days

0
