S 621 (12A-959D100) - Cub Cadet Walk-Behind Mower Engine (1997) Air Filter & Controls Parts Diagram

Walk-Behind Mower Engine

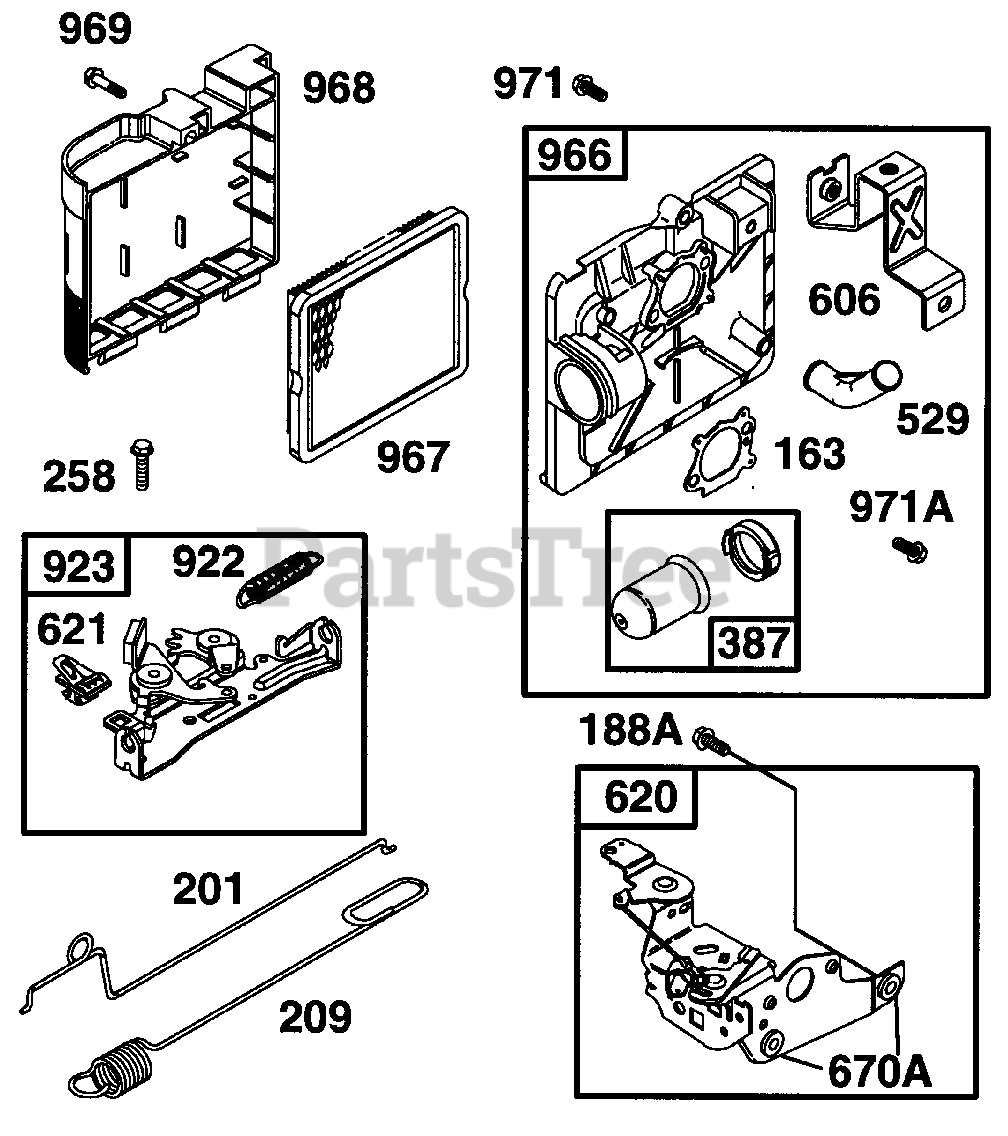

Air Filter & Controls Parts Diagram

  • Title

163

Cub Cadet BS-272653

Gasket-Air Cleaner
(Superseded to BS-795629)

$3.49

$

In Stock, Qty 20+

0

188A

Cub Cadet BS-94644

Screw-Hex Hd
(Superseded to BS-690877)

$3.99

$

In Stock, Qty 5

0

201

Cub Cadet BS-262579

Link-Governor
(Superseded to BS-691829)

$8.49

$

Usually ships in 2-12 days

0

209

Cub Cadet BS-263044

Spring-Governor
(Superseded to BS-690319)

$8.49

$

In Stock, only 1 left!

0

258

Cub Cadet BS-94512

Screw-Hex Head
(Superseded to BS-691648)

$4.99

$

Usually ships in 2-12 days

0

387

Cub Cadet BS-496115

Primer-Carburetor
(Superseded to BS-694395)

$4.49

$

In Stock, Qty 20+

0

529

Cub Cadet BS-281299

Grommet
(Superseded to BS-691923)

$9.49

$

In Stock, only 1 left!

0

606

Cub Cadet BS-224815

Strap-Bracket
(Superseded to BS-795259)

$32.99

$

In Stock, Qty 8

0

620

Cub Cadet BS-497203

Bracket-Carburetor
(Superseded to BS-790143)

$44.99

$

Usually ships in 2-12 days

0

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

670A

Cub Cadet BS-493823

Spacer-Bracket

Note: (Includes 2)

$6.49

$

In Stock, only 1 left!

0

922

Cub Cadet BS-262640

Spring-Brake
(Superseded to BS-691831)

$10.99

$

In Stock, only 2 left!

0

923

Cub Cadet BS-493442

Brake Assy
(Superseded to BS-796387)

$

$

Not available

966

Cub Cadet BS-496116

Base-Air Cleaner
(Superseded to BS-795259)

$32.99

$

In Stock, Qty 8

0

967

Cub Cadet BS-491588

Filter-Air
(Superseded to BS-491588S)

$6.49

$

In Stock, Qty 20+

0

968

Cub Cadet BS-281340

Cover-Air Cleaner
(Superseded to BS-692298)

$27.99

$

In Stock, only 1 left!

0

969

Cub Cadet BS-94120

Screw-Hex Head
(Superseded to BS-690670)

$5.99

$

In Stock, Qty 6

0

971

Cub Cadet BS-94121

Screw-Hex Head
(Superseded to BS-692523)

$7.49

$

In Stock, only 2 left!

0

971A

Cub Cadet BS-94749

Screw-Hex Head
(Superseded to BS-691669)

$3.99

$

In Stock, only 1 left!

0

?991

Cub Cadet BS-493537

Filter-Air
(Superseded to BS-493537S)

Note: (Pre-Filter)

$6.49

$

In Stock, Qty 18

0
