S 621 (12A-387A100) - Cub Cadet Walk-Behind Mower (2003) Transmission & Bag Assembly Parts Diagram

Walk-Behind Mower

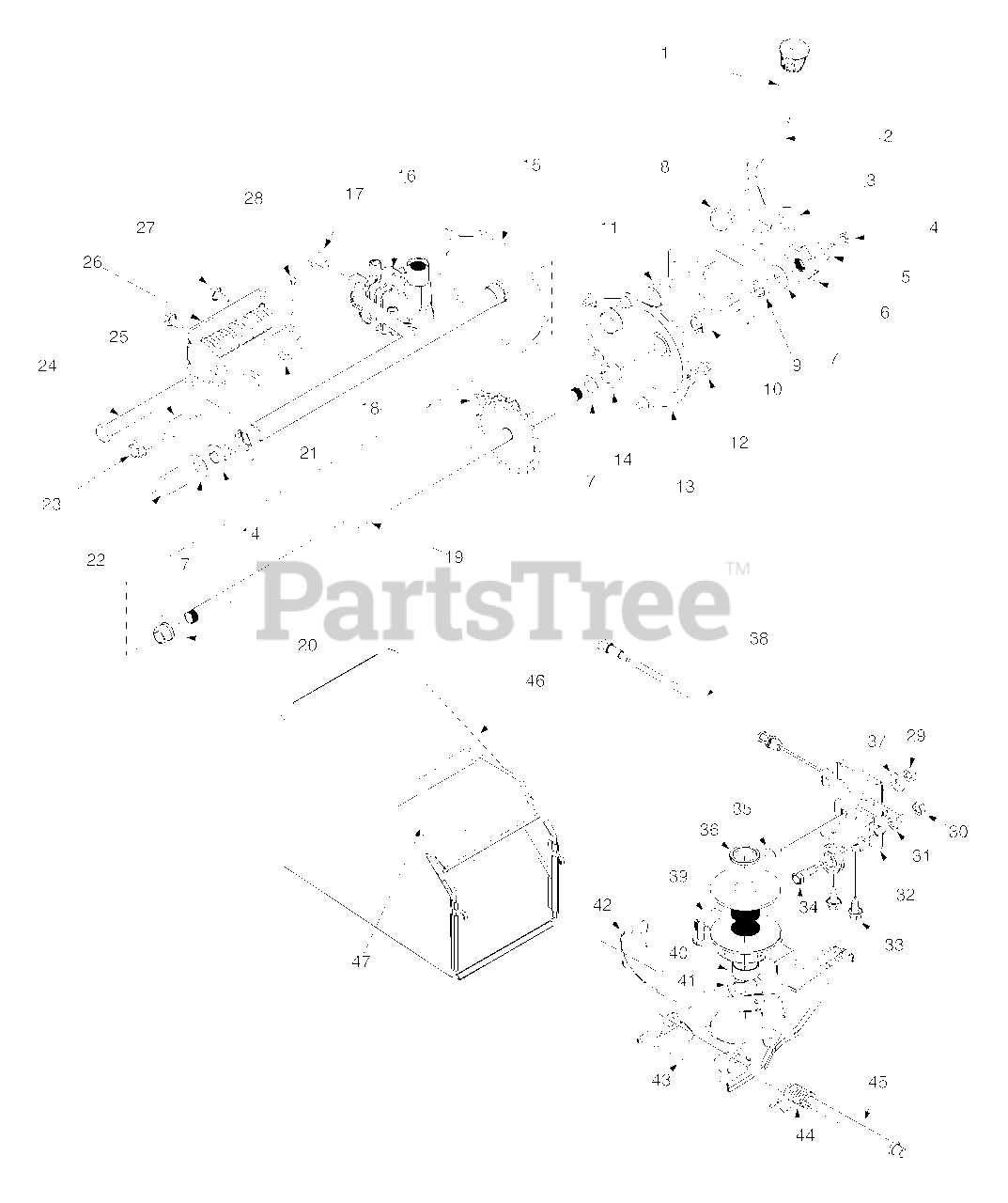

Transmission & Bag Assembly Parts Diagram

  • Title

1

Cub Cadet 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

2

Cub Cadet 732-0803A

Spring Lever

$15.99

$

In Stock, Qty 16

0

3

Cub Cadet 738-0529

Shoulder Nut .825 x .165 Lg.
(Superseded to 938-0529)

$11.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0751

Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0270

Bell Washer .285 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 748-0318

Wheel Rachet
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 15

0

7

Cub Cadet 736-0369

Flat Washer .508 ID x 1.0 OD

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 682-0531

Pivot Arm Assembly
(Superseded to 682-0531-0637)

Variations

Cub Cadet 682-0531-0637

Pivot Arm, Rear - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 750-0515

Spacer .510 ID x .70 OD

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet 741-0978

Sleeve Bearing .504 ID x .830 OD

$4.99

$

In Stock, only 3 left!

0

11

Cub Cadet 750-1056

Shoulder
(Superseded to 950-1056)

$7.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0653

Tap Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 7

0

13

Cub Cadet 682-7528

Chain Cover Assembly
(Superseded to 682-7528-0637)

Variations

Cub Cadet 682-7528-0637

Chain Assembly Cover, Black - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 741-0324

Flange Bearing .506 ID x .590 Lg
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

15

Cub Cadet 682-7526

Transmission Axle Assembly
(Superseded to 682-7526-0637)

Variations

Cub Cadet 682-7526-0637

AXLE:CHAIN ASM. - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 618-0263A

Transmission Assembly Complete
(Superseded to 918-0263A)

$

$

Not available

17

Cub Cadet 710-0604A

Hex Screw 5/16-18

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 713-0453

Chain
(Superseded to 913-0453)

$12.99

$

In Stock, only 2 left!

0

19

Cub Cadet 638-0012

Rear Axle Assembly
(Superseded to 938-0012A)

$74.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 741-0522

Flange Bearing .506 ID x .715 Lg

$

$

Not available

21

Cub Cadet 732-0832

Torsion Spring

$19.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 750-0151

Spacer .550 ID x .750 OD
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-1315

Screw 3/8-16 x .25

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 711-0835

Clevis Pin .50 Dia x 4.82 Lg.
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

25

Cub Cadet 750-0807

Spacer .385 ID x .624 OD

$6.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 782-0568

Hgt Adjustment Spring Bracket
(Superseded to 782-0568B-0637)

Variations

Cub Cadet 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 710-1652

Screw 1/4-14 x .825

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 714-0474

Cotter Pin

$4.99

$

In Stock, Qty 13

0

29

Cub Cadet 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 17

0

30

Cub Cadet 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0329

Lock washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

32

Cub Cadet 782-7575A

Cable Bracket MT
(Superseded to 782-7575B-0637)

Variations

Cub Cadet 782-7575A-0637

Cable Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

33

Cub Cadet 710-0896

Screw Hex Washer 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 738-0924

Screw 1/4-20 x .375
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

35

Cub Cadet 710-0167

Screw 1/4-20 x .625
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 750-1071

Spacer Sleeve 88ID x 1.13 x .12
(Superseded to 950-1071)

$4.49

$

In Stock, only 3 left!

0

37

Cub Cadet 736-0270

Bell Washer.265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 746-0939

Cable - 6-Speed (53")
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

39

Cub Cadet 656-0613

Pulley Assembly Complete
(Superseded to 956-0613A)

$72.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 750-1070

Spacer Sleeve 88 ID x 1.00 x .48
(Superseded to 950-1070)

$5.99

$

In Stock, Qty 9

0

41

Cub Cadet 736-0526

Wave Washer 1.38 OD x .88 ID .029

$6.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 782-7597

Pivot Bracket 6-Speed

Variations

Cub Cadet 782-7597-0637

Pivot Bracket - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

43

Cub Cadet 782-7596A

Arm, Control 6-Speed

Variations

Cub Cadet 782-7596A-0637

Control Arm, 6-Speed - POWDER BLACK (0637)

$

$

Not available

$

$

44

Cub Cadet 732-0807

Torsion Spring
(Superseded to 932-0807)

$7.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 711-1114

Shaft Pivot 3/8OD x 7.75 LG

$12.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 664-04002

Grassbag - Black

$133.99

$

In Stock, only 1 left!

0

47

Cub Cadet 747-04003

Grassbag Frame

Variations

Cub Cadet 747-04003-0716

FRAME-GRASSCTCHR (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

Cub Cadet 782-7574A

Bracket Adjustment 6-Speed
(Superseded to 782-7574A-0637)

Note: See 'General Assembly' Page

Variations

Cub Cadet 782-7574A-0637

Cable Adjusting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$
