S 621 (12A-387A100) - Cub Cadet Walk-Behind Mower (2003) General Assembly Parts Diagram

Walk-Behind Mower

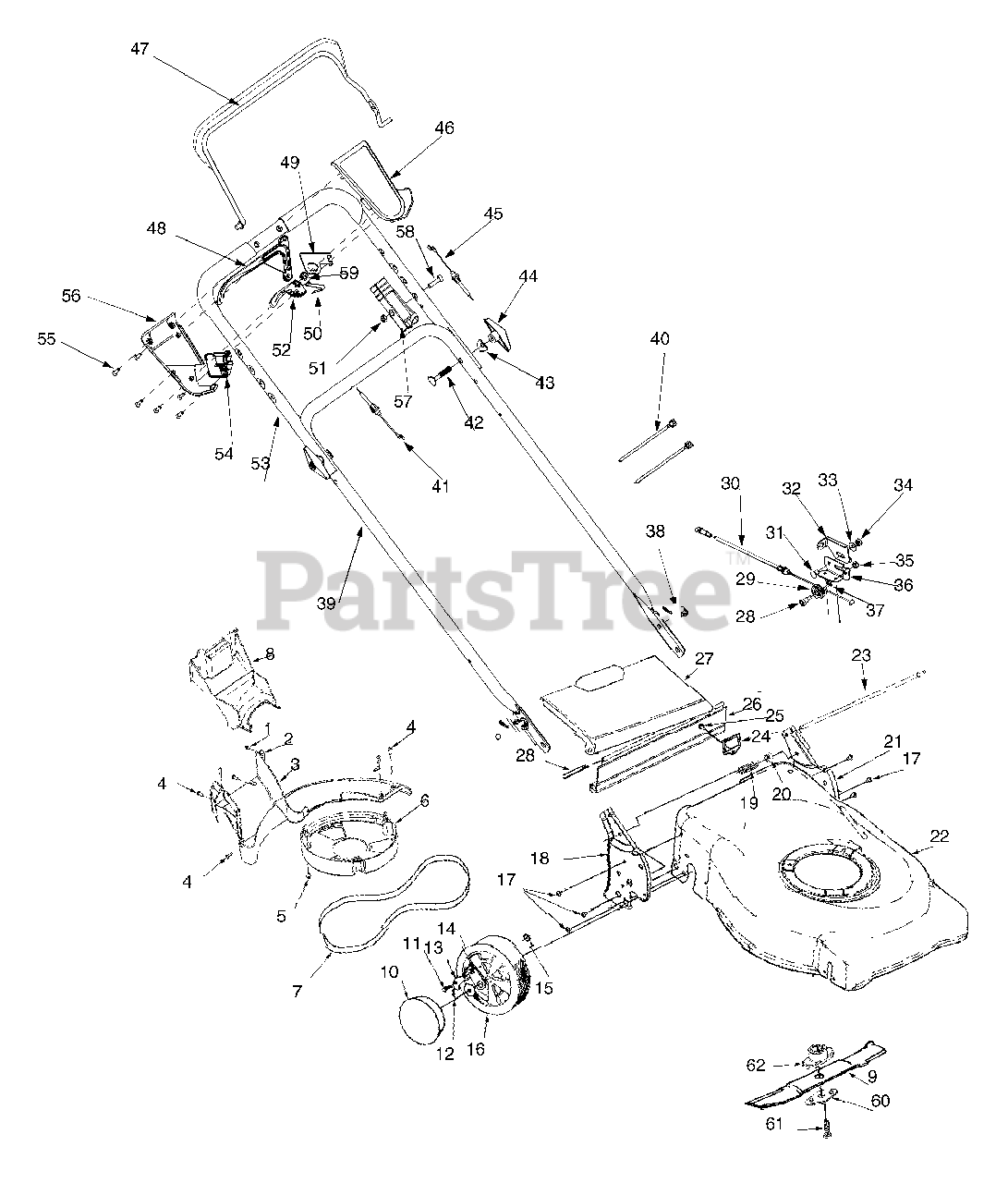

General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-0351

Screw Mach. B Tapp

$4.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-0400

U-Nut
(Superseded to 912-0400)

$5.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-1639

Baffle

$

$

Not available

4

Cub Cadet 710-1220

Screw HL 12-24

$4.99

$

In Stock, only 4 left!

0

5

Cub Cadet 710-0653

Screw Tap 1/4-20

$4.49

$

In Stock, Qty 7

0

6

Cub Cadet 731-1714A

Belt Cover

$

$

Not available

7

Cub Cadet 754-0271

Belt
(Superseded to 954-0271)

$28.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-1685

Mulch Plug
(Superseded to 931-1685)

$

$

Not available

9

Cub Cadet 742-0741

21" Mulching Blade w/Star
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

10

Cub Cadet 731-0982A

Hub Cap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

11

Cub Cadet 738-0137A

Shldr. Scr. .340x.285

$10.99

$

In Stock, Qty 10

0

12

Cub Cadet 10622B

Spring, Ratchet

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet 748-0188B

Pawl L.H. (Not Shown)
(Superseded to 948-0188B)

$

$

Not available

13

Cub Cadet 748-0381

Pawl R.H.

$11.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 16855

Pawl Plate

$6.49

$

In Stock, Qty 7

0

15

Cub Cadet 712-0414

Weld Top L. 1/4-20

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 734-2015A

Wheel Assembly
(Superseded to 734-04226A)

$54.99

$

In Stock, Qty 18

0

17

Cub Cadet 710-1348

Screw AB 1/4-20

$6.99

$

In Stock, only 3 left!

0

18

Cub Cadet 782-3030

Handle Brkt. Ass'y - R.H.

Variations

Cub Cadet 782-3030-0637

HANDLE BRACKET (RH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 782-3030-0638

HANDLE BRACKET (RH) (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 782-3030-0716

HANDLE BRACKET (RH) (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

19

Cub Cadet 732-0809

Torsion Spring L.H.
(Superseded to 932-0809)

$18.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 750-1068

Spacer .385 I.D.
(Superseded to 950-1068)

$

$

Not available

21

Cub Cadet 782-3029

Handle Brkt. Ass'y - L.H.

Variations

Cub Cadet 782-3029-0637

HANDLE BRACKET (LH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 782-3029-0638

HANDLE BRACKET (LH) (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 782-3029-0716

HANDLE BRACKET (LH) (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

22

Cub Cadet 682-0075

21" Deck

Variations

Cub Cadet 682-0075-0483

DECK ASSEMBLY-21" CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 682-0075-0629

DECK ASSEMBLY-21" SLV FLAKE - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 682-0075-0638

DECK ASSEMBLY-21" (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 682-0075-0650

21" DECK ASSEMBLY - RED METALLIC (0650)

$

$

Not available

Cub Cadet 682-0075-0662

DECK ASSEMBLY-21" OYS GRAY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 682-0075-0665

DECK ASSEMBLY-21" YM GREEN - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 682-0075-0667

21" DECK ASSEMBLY - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 682-0075-0668

21" DECK ASSEMBLY - MOSS GREEN (0668)

$

$

Not available

Cub Cadet 682-0075-0674

21" DECK ASSEMBLY - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 682-0075-0691

DECK ASSY-21" - BLACK JACK (0691)

$

$

Not available

Cub Cadet 682-0075-0709

21" DECK ASSEMBLY - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 682-0075-0716

DECK ASSY-21" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

23

Cub Cadet 747-0922

Pivot Rod

$

$

Not available

24

Cub Cadet 782-7018

Pulley Cover
(Superseded to 782-7018-0637)

Variations

Cub Cadet 782-7018-0637

WINDOW/INSPECTION - POWDER BLACK (0637)

$

$

Not available

$

$

25

Cub Cadet 710-0896

Hex Washer Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 731-1236

Rear Flap 17.77 Lg.
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

27

Cub Cadet 782-7599B

Rear Chute Door
(Superseded to 782-7599B-0637)

Variations

Cub Cadet 782-7599B-0637

DOOR-GRASSBAG 21" - POWDER BLACK (0637)

$

$

Not available

$

$

28

Cub Cadet 732-0700

Wire-47" Lg.
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

29

Cub Cadet 756-0625

Roller Cable

$9.49

$

In Stock, Qty 11

0

30

Cub Cadet 746-0939

6-Speed Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

31

Cub Cadet 710-0167

Carriage Screw 1/4-20 x .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 782-7574A

Cable Adjustment Bracket
(Superseded to 782-7574A-0637)

Variations

Cub Cadet 782-7574A-0637

Cable Adjusting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

33

Cub Cadet 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 712-0287

Hex Nut 1/4-28
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

35

Cub Cadet 712-0138

Hex Nut 1/4-20

$6.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 782-7575A

Cable Bracket
(Superseded to 782-7575B-0637)

Variations

Cub Cadet 782-7575A-0637

Cable Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 738-0924

Screw 1/4-20 x .375
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

38

Cub Cadet 712-0104

Cotter Pin

$

$

Currently unavailable

39

Cub Cadet 749-0907B

Lower Handle

Variations

Cub Cadet 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

40

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 746-0713

Drive Cable
(Superseded to 946-0713A)

$29.99

$

In Stock, only 1 left!

0

42

Cub Cadet 710-1174

Cr.Hd. Bolt 5 / 16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0451

Saddle Washer .320 ID x .830 OD

$4.49

$

In Stock, Qty 11

0

44

Cub Cadet 720-0284

Wing Nut

$6.99

$

In Stock, Qty 20+

0

45

Cub Cadet 746-04109

Control Cable
(Superseded to 946-04109)

$36.99

$

In Stock, Qty 9

0

46

Cub Cadet 731-0904A

Upper Control Handle
(Superseded to 753-0717)

$

$

Not available

47

Cub Cadet 647-04008

Control Handle Ass'y
(Superseded to 647-04008A)

$52.99

$

In Stock, only 1 left!

0

48

Cub Cadet 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

49

Cub Cadet 16864

6-Speed Rack Cable Bracket

$11.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

51

Cub Cadet 712-0324

Top Lock Nut

$3.99

$

In Stock, Qty 16

0

52

Cub Cadet 731-0924

6-Speed Shift Lever

$

$

Not available

53

Cub Cadet 749-0439D

Upper Handle
(Superseded to 749-0439E-0637)

Variations

Cub Cadet 749-0439D-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

54

Cub Cadet 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

55

Cub Cadet 710-1667A

C-Sunk Tap Screw #10-x.75 Lg

$4.49

$

In Stock, Qty 13

0

56

Cub Cadet 731-0905A

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

57

Cub Cadet 746-0883

Control Housing

$16.99

$

In Stock, only 3 left!

0

58

Cub Cadet 710-1270

Oval C Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

59

Cub Cadet 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

60

Cub Cadet 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

61

Cub Cadet 710-1257

Hex Bolt 3/8-24 x 2.5 Lg.

$7.99

$

In Stock, only 1 left!

0

62

Cub Cadet 753-0609

Blade Adaptor Kit w/Star

$40.99

$

In Stock, Qty 12

0
