S 621 (12A-379I100) - Cub Cadet Walk-Behind Mower Engine (2002) Fuel, Air Filter, Muffler Parts Diagram

Walk-Behind Mower Engine

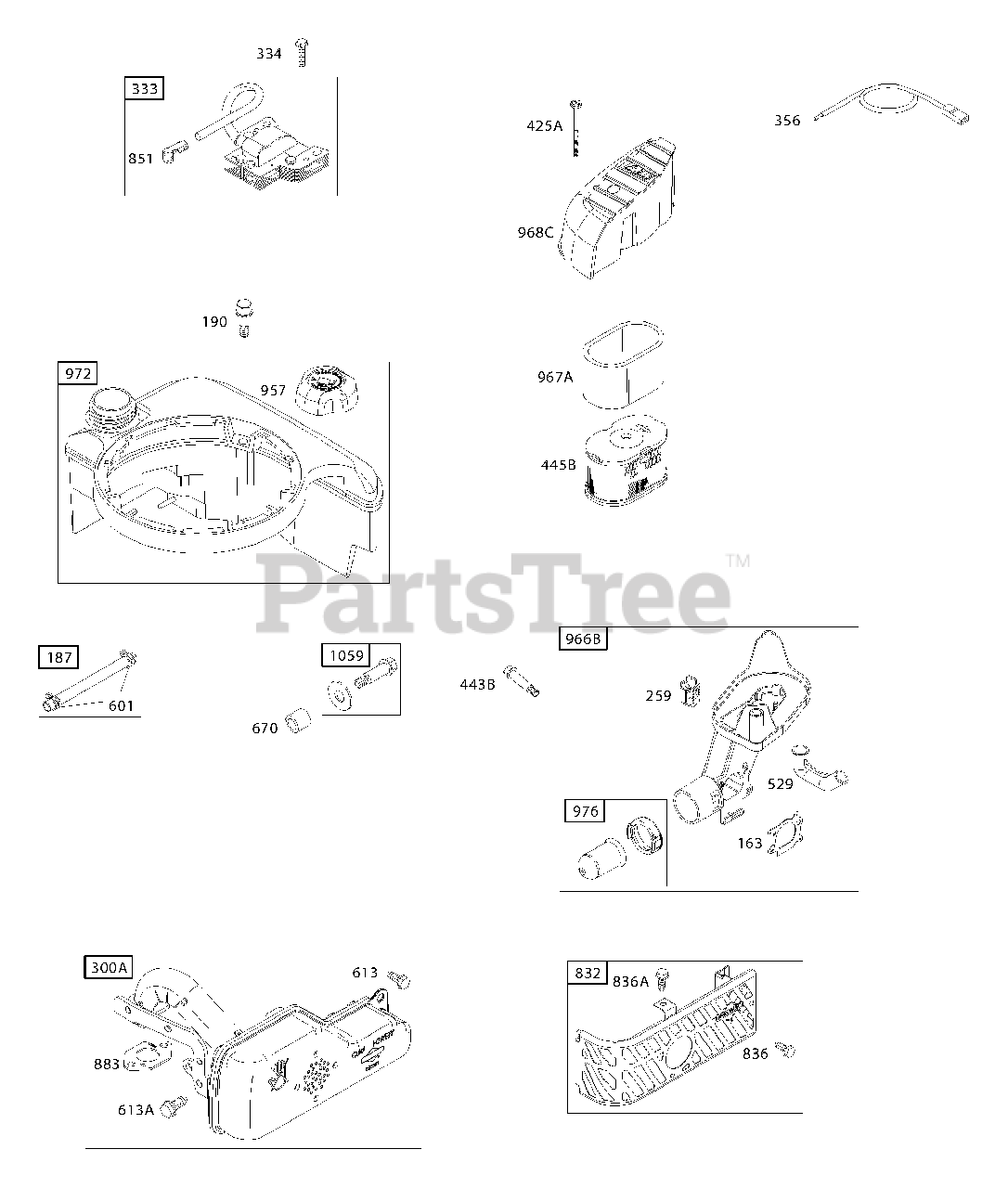

Fuel, Air Filter, Muffler Parts Diagram

  • Title
163

Cub Cadet BS-691894

Gasket-Air Cleaner

$4.99

$

In Stock, Qty 6

0

187

Cub Cadet BS-691050

Line-Fuel
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

190

Cub Cadet BS-690940

Screw (Fuel Tank)

$3.99

$

In Stock, Qty 5

0

259

Cub Cadet BS-691189

Bracket-Casting Clamp

$4.99

$

Usually ships in 2-12 days

0

300A

$

$

Not available

333

Cub Cadet BS-802574

Armature-Magneto
(Superseded to BS-796964)

$55.99

$

In Stock, Qty 9

0

334

Cub Cadet BS-691061

Screw (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

$

$

Not available

425A

Cub Cadet BS-690244

Screw (Air Cleaner Cover)

$3.99

$

In Stock, only 2 left!

0

443B

Cub Cadet BS-690255

Screw (Primer Base)

$5.99

$

In Stock, only 3 left!

0

445B

Cub Cadet BS-697029

Filter-Air Cleaner Cartridge

$13.99

$

In Stock, Qty 20+

0

529

$9.49

$

In Stock, Qty 14

0

601

Cub Cadet BS-95162

Clamp-Hose
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

613

Cub Cadet BS-691108

Screw (Exhaust Muffler)

$3.49

$

In Stock, Qty 20+

0

613A

Cub Cadet BS-691140

Screw (Exhaust Muffler)

$3.99

$

Usually ships in 2-12 days

0

670

Cub Cadet BS-692294

Spacer-Fuel Tank

$4.99

$

In Stock, Qty 5

0

832

Cub Cadet BS-691466

Guard-Muffler

$54.99

$

Usually ships in 2-12 days

0

836

Cub Cadet BS-697551

Screw (Muffler Guard)

$3.49

$

In Stock, Qty 20+

0

836A

Cub Cadet BS-691147

Screw (Muffler Guard)

$3.99

$

Usually ships in 2-12 days

0

851

Cub Cadet BS-493880

Terminal-Spark Plug
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

883

Cub Cadet BS-691893

Gasket-Valve

$4.49

$

In Stock, Qty 20+

0

957

Cub Cadet BS-692046

Cap-Fuel Tank
(Superseded to BS-796577)

$16.99

$

In Stock, only 1 left!

0

966B

Cub Cadet BS-690243

Base-Air Cleaner Primer

$

$

Not available

967A

Cub Cadet BS-273356

Filter-Pre Cleaner
(Superseded to BS-273356S)

$5.49

$

In Stock, Qty 8

0

968C

Cub Cadet BS-692692

Cover-Air Cleaner

$

$

Not available

972

Cub Cadet BS-499618

Tank-Fuel
(Superseded to BS-699374)

$64.99

$

In Stock, Qty 20+

0

976

Cub Cadet BS-694395

Primer-Carburetor

$4.49

$

In Stock, Qty 20+

0

1059

Cub Cadet BS-692311

Kit-Screw/Washer

$7.49

$

In Stock, only 1 left!

0

Cub Cadet BS-692745

Short Block

Note: N/S

$205.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-121602-0515

Complete Engine

Note: N/S

$

$

Not available
