S 621 (12A-379I100) - Cub Cadet Walk-Behind Mower (2002) General Assembly Parts Diagram

Walk-Behind Mower

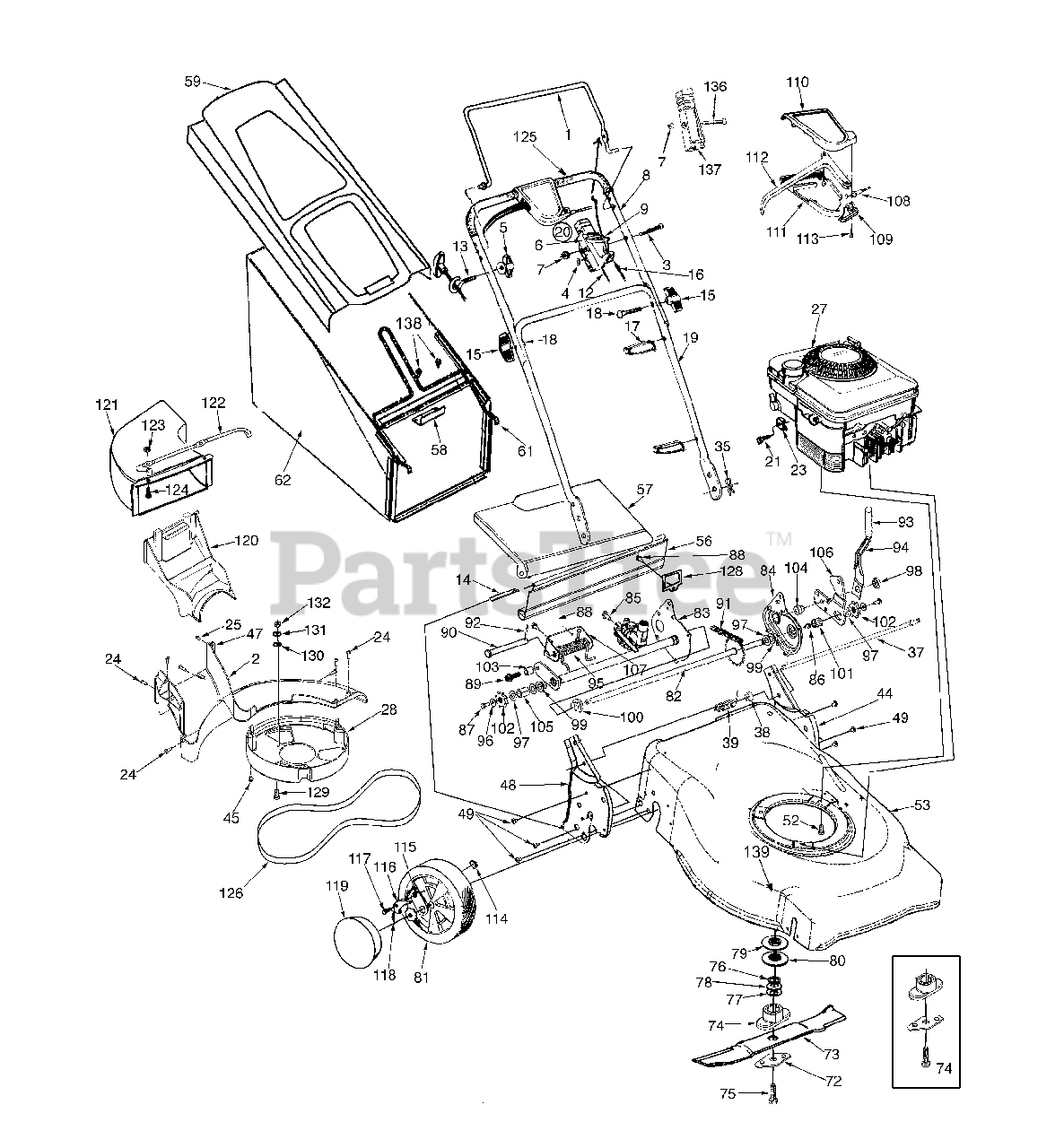

General Assembly Parts Diagram

  • Title

1

Cub Cadet 647-0004A

Control Handle Ass'y
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

Cub Cadet 731-1639

Baffle

$

$

Not available

3

Cub Cadet 710-0605

Oval C-Sunk Mach - Screw

$4.49

$

In Stock, only 3 left!

0

4

Cub Cadet 936-0501

Spring Washer .66" ID

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 946-0875

Throttle Body

Note: If equipped

$9.49

$

In Stock, only 4 left!

0

7

Cub Cadet 712-0324

Hex L-Nut 1/4-20

$3.99

$

In Stock, Qty 17

0

8

Cub Cadet 749-0439E-0637

Upper Handle

$47.99

$

In Stock, only 1 left!

0

9

Cub Cadet 946-0876

Throttle Lever

Note: If equipped

$8.49

$

In Stock, only 2 left!

0

12

Cub Cadet 946-1115

Throttle Control Wire - 47"

Note: If equipped

$28.99

$

In Stock, only 1 left!

0

12

Cub Cadet 946-0671A

Throttle Control Wire - 55"

Note: If equipped

$14.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 946-0674A

Throttle Control Wire - 60"

Note: If equipped

$18.99

$

In Stock, only 1 left!

0

13

Cub Cadet 710-1205

Rope Guide

$3.99

$

In Stock, only 3 left!

0

14

Cub Cadet 732-0700

Wire-47" Lg.
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

15

Cub Cadet 720-0314

Hand Knob

$6.49

$

In Stock, only 1 left!

0

16

Cub Cadet 946-0557

Control Cable-45"

$26.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

18

Cub Cadet 710-1174

Cr.Hd. Bolt 5 / 16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

19

Cub Cadet 749-0907B

Lower Handle

Variations

Cub Cadet 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

20

Cub Cadet 811-0185

Throttle Ass’y (Incl. 3,4,6,7,9)

Note: If equipped

$36.99

$

In Stock, only 1 left!

0

21

Cub Cadet 710-1237

Hex Self-Tap Scr. #10-32 x .62"

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0871

Hex Sems Scr. #10-32 x .3" Lg.

$

$

Not available

22

Cub Cadet 735-0639

Spark Plug Boot

$

$

Not available

23

Cub Cadet 751B213146

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

24

Cub Cadet 710-1220

Screw H.L. 12-24

$4.99

$

In Stock, only 4 left!

0

25

Cub Cadet 710-0351

Screw Mach. B Tapp.

$4.49

$

In Stock, only 2 left!

0

28

Cub Cadet 731-1714A

Belt Cover

$

$

Not available

35

Cub Cadet 914-0104

Int. Cotter Pin 5/15" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 747-0922

Pivot Rod

$

$

Not available

38

Cub Cadet 950-1068

Spacer .385 I.D.

$

$

Not available

39

Cub Cadet 932-0809

Torsion Spring L.H.

$18.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 782-3029

Handle Brkt. Ass'y - L.H.

Variations

Cub Cadet 782-3029-0637

HANDLE BRACKET (LH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 782-3029-0638

HANDLE BRACKET (LH) (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 782-3029-0716

HANDLE BRACKET (LH) (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

45

Cub Cadet 710-0653

Screw, Tap 1/4-20

$4.49

$

In Stock, Qty 13

0

47

Cub Cadet 912-0400

U-Nut

$5.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 782-3030

Handle Brkt. Ass'y - R.H.

Variations

Cub Cadet 782-3030-0637

HANDLE BRACKET (RH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 782-3030-0638

HANDLE BRACKET (RH) (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 782-3030-0716

HANDLE BRACKET (RH) (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

49

Cub Cadet 710-1348

Screw AB 1/4-20

$6.99

$

In Stock, only 3 left!

0

52

Cub Cadet 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1"

$4.49

$

In Stock, only 3 left!

0

53

Cub Cadet 682-0075

21" Deck

Variations

Cub Cadet 682-0075-0483

DECK ASSEMBLY-21" CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 682-0075-0629

DECK ASSEMBLY-21" SLV FLAKE - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 682-0075-0638

DECK ASSEMBLY-21" (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 682-0075-0650

21" DECK ASSEMBLY - RED METALLIC (0650)

$

$

Not available

Cub Cadet 682-0075-0662

DECK ASSEMBLY-21" OYS GRAY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 682-0075-0665

DECK ASSEMBLY-21" YM GREEN - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 682-0075-0667

21" DECK ASSEMBLY - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 682-0075-0668

21" DECK ASSEMBLY - MOSS GREEN (0668)

$

$

Not available

Cub Cadet 682-0075-0674

21" DECK ASSEMBLY - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 682-0075-0691

DECK ASSY-21" - BLACK JACK (0691)

$

$

Not available

Cub Cadet 682-0075-0709

21" DECK ASSEMBLY - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 682-0075-0716

DECK ASSY-21" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

56

Cub Cadet 731-04998

Rear Flap 17.77 Lg.

$31.99

$

In Stock, Qty 6

0

57

Cub Cadet 782-7599B-0637

Rear Chute Door

$

$

Not available

58

Cub Cadet 782-9050-0637

Brkt. Mtg. Grassbag Black

$

$

Not available

59

Cub Cadet 731-0068

Hardtop Bag Cover

Note: If equipped

$

$

Not available

61

Cub Cadet 747-04003-0716

Catcher Frame

$

$

Not available

62

Cub Cadet 664-04002

Grass Bag Asm - Cub Cadet

$133.99

$

In Stock, only 1 left!

0

62

Cub Cadet 964-0080

Grass Bag - Black

$

$

Not available

72

Cub Cadet 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

73

Cub Cadet 942-0741

21" Mulching Blade w/Star
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

74

Cub Cadet 753-0609

Blade Adaptor Kit w/Star

$40.99

$

In Stock, Qty 12

0

75

Cub Cadet 710-1257

Hex Bolt 3/8-24 x 2.5 Lg.

$7.99

$

In Stock, only 2 left!

0

76

Cub Cadet 748-0358

Spacer

$

$

Not available

77

Cub Cadet 936-0514

Fl. Wash. .885 x 1.85 x .06
(Superseded to 736-0514)

$

$

Not available

78

Cub Cadet 936-0513

Spr. Wash. .890 x .7x .04

$

$

Not available

79

Cub Cadet 756-0962

Pulley Half - Upper

$

$

Not available

80

Cub Cadet 956-0979

Pulley Half - Lower

$

$

Not available

81

Cub Cadet 734-2005B

Wheel Assembly, Rear
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

82

Cub Cadet 638-0005

Axle Assy: RR

$

$

Not available

83

Cub Cadet 682-7518-0637

Axle Assy: Trans.

$

$

Not available

84

Cub Cadet 682-7524-0716

Cover Ass'y - Chain

$

$

Not available

85

Cub Cadet 710-0604A

Scr. TT 5/16-18

$4.49

$

In Stock, Qty 20+

0

86

Cub Cadet 710-0653

Scr. TT 1/4-20

$4.49

$

In Stock, Qty 13

0

87

Cub Cadet 710-0751

Hx Cap Screw 1/4-20

$3.99

$

In Stock, Qty 20+

0

88

Cub Cadet 710-0896

Hex Washer Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

89

Cub Cadet 710-1315

Scr 3/8 - 16 x 1.25

$4.49

$

In Stock, only 3 left!

0

90

Cub Cadet 911-0835

Pin - Clv. .500 Dia.x.4.62 Lg.

$12.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 913-0421

Chain:Endless 48:.500P x 22 Lg.

$

$

Not available

92

Cub Cadet 914-0474

Pin-Cotter .125 O.D. x .75
(Superseded to 714-0474)

$

$

Not available

93

Cub Cadet 720-0230

Grip-Foam

$7.49

$

In Stock, only 3 left!

0

94

Cub Cadet 732-0803A

Spring Lever

$15.99

$

In Stock, Qty 16

0

95

Cub Cadet 732-0818

Torsion Spring

$

$

Not available

96

Cub Cadet 736-0270

Bell Washer .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

97

Cub Cadet 936-0369

Wash.Flat .508 I.D. x 1.0 O.D.
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 8

0

98

Cub Cadet 938-0529

Nut - Shoulder .625 x .165 Lg.

$11.99

$

In Stock, only 2 left!

0

99

Cub Cadet 741-0324A

Bearing-Flg Hex

$7.99

$

In Stock, Qty 5

0

100

Cub Cadet 941-0522

Bearing-Flg. Hex
(Superseded to 741-0522)

$

$

Not available

101

Cub Cadet 741-0978

Bearing-Sleeve

$4.99

$

In Stock, only 3 left!

0

102

Cub Cadet 948-0318

Ratchet Wheel

$10.99

$

In Stock, only 2 left!

0

103

Cub Cadet 750-0807

Spacer - .385 x .625 x .700

$6.49

$

Usually ships in 3-6 days

0

104

Cub Cadet 950-1056

Spacer-Shld. .385 I.D.x .715 Lg.

$7.49

$

Usually ships in 3-6 days

0

105

Cub Cadet 950-1075

Spacer Slv. .520 I.D. x .950 Lg.

Note: NLA

$

$

Not available

106

Cub Cadet 782-0566B-0637

Pivot Arm

$44.99

$

In Stock, only 1 left!

0

107

Cub Cadet 782-0568-0637

Spring Bracket
(Superseded to 782-0568B-0637)

$

$

Not available

108

Cub Cadet 946-0713A

S.P. Cable 52.5"

$29.99

$

In Stock, only 1 left!

0

109

Cub Cadet 753-0833

Control Cable Kit

Note: replaces 731-1059

$50.99

$

In Stock, only 1 left!

0

110

Cub Cadet 753-0833

Control Cable Kit

Note: replaces 731-1057

$50.99

$

In Stock, only 1 left!

0

111

Cub Cadet 753-0833

Control Cable Kit

Note: replaces 731-1058

$50.99

$

In Stock, only 1 left!

0

112

Cub Cadet 731-0620A

Lever

$15.99

$

In Stock, only 1 left!

0

113

Cub Cadet 710-1667A

Screw #10-16 x .625

$4.49

$

In Stock, Qty 13

0

114

Cub Cadet 912-0414

Weld Top L. 1/4-20
(Superseded to 712-0414)

$4.49

$

In Stock, only 4 left!

0

115

Cub Cadet 16855

Pawl Plate

$6.49

$

In Stock, Qty 6

0

116

Cub Cadet 948-0188B

Pawl L.H.

Note: Not shown

$11.99

$

Usually ships in 3-6 days

0

116

Cub Cadet 748-0381

Pawl R.H.

$11.99

$

In Stock, only 1 left!

0

117

Cub Cadet 938-0137A

Shldr. Scr. .340x.285
(Superseded to 738-0137A)

$10.99

$

In Stock, Qty 10

0

118

Cub Cadet 10622BP

Spring, Ratchet
(Superseded to 10622B)

$5.49

$

In Stock, Qty 20+

0

119

Cub Cadet 731-0982C

Hub Cap

$11.99

$

In Stock, Qty 18

0

120

Cub Cadet 931-1685

Mulch Plug

$

$

Not available

121

Cub Cadet 931-1461

Chute Deflector

$

$

Not available

122

Cub Cadet 747-0958

Chute Mounting Rod

Note: NLA

$

$

Not available

123

Cub Cadet 712-0324

Hex-L-Nut 1/4-20 thd.

$3.99

$

In Stock, Qty 17

0

124

Cub Cadet 710-0924

Mach. Scr. 1/4-20

$4.49

$

In Stock, Qty 20+

0

125

Cub Cadet 720-0294

Foam Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, Qty 5

0

126

Cub Cadet 954-0271

Belt

$28.99

$

Usually ships in 3-6 days

0

128

Cub Cadet 782-7018-0637

Pulley Cover

$

$

Not available

129

Cub Cadet 710-1026

Scr. TT 1/4-20:1.750 Hx Ind Wash

$6.99

$

In Stock, Qty 13

0

130

Cub Cadet 936-0329

Lockwasher 1/4" Reg.

$4.49

$

In Stock, Qty 11

0

131

Cub Cadet 936-3020

Fl. Wash. .271 x .630 x .065
(Superseded to 736-3020)

$

$

Not available

132

Cub Cadet 912-0287

Nut 1/4-20

$4.99

$

Usually ships in 3-6 days

0

136

Cub Cadet 710-1270

Scr. 1/4-20:1.31 Lg.

$4.49

$

Usually ships in 3-6 days

0

137

Cub Cadet 746-0883

Housing (w/o Throttle)

$16.99

$

In Stock, only 4 left!

0

138

Cub Cadet 710-0896

Hex Washer Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

139

Cub Cadet 682-0075-0716

Deck

$

$

Not available
