S-60 KH (53RN2RUD050) - Cub Cadet 60" Tank S Zero-Turn Mower, Kohler (2016) Deck Lift Parts Diagram

60" Tank S Zero-Turn Mower, Kohler

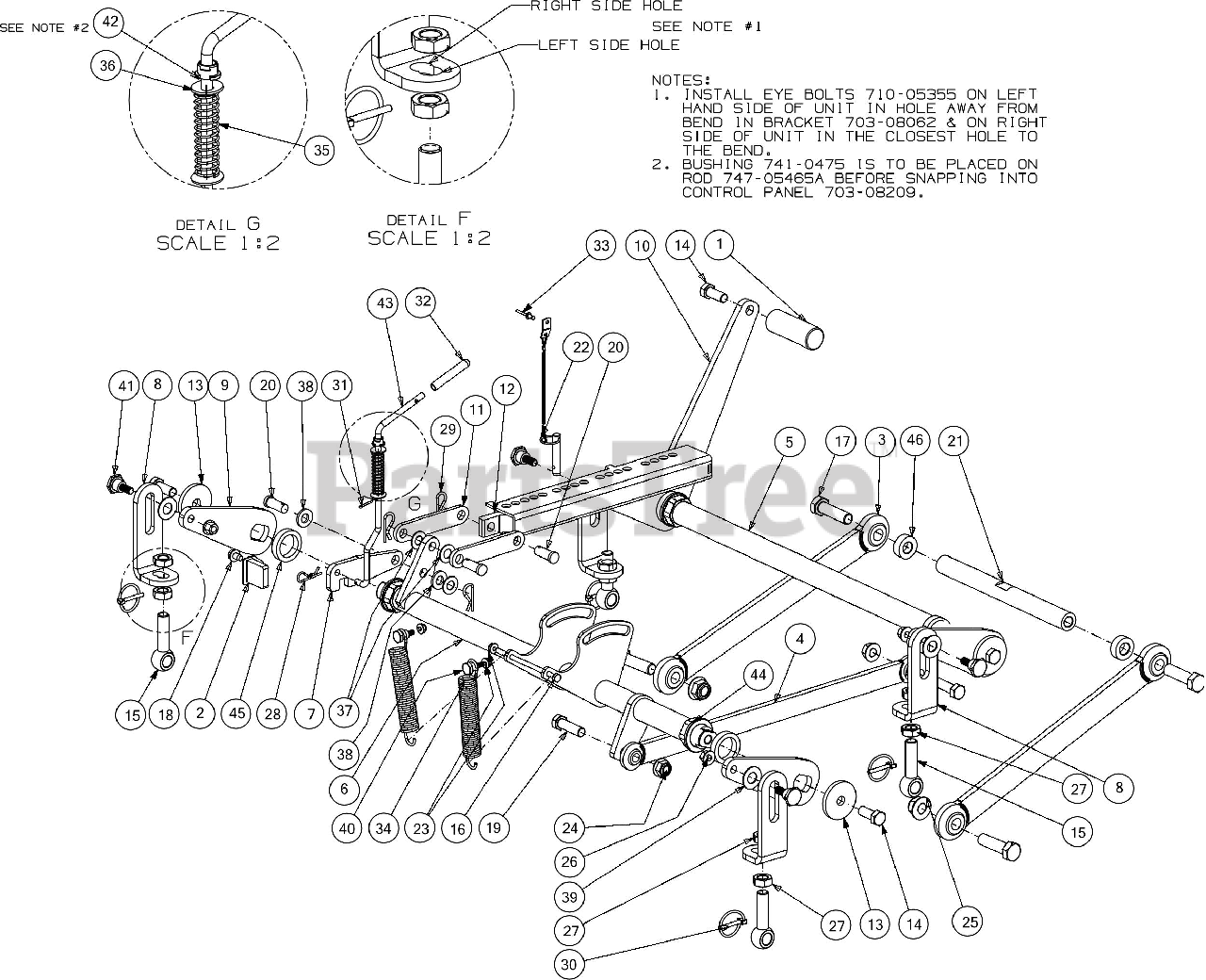

Deck Lift Parts Diagram

  • Title

1

Cub Cadet 02002596

DECK LIFT PEDAL

$29.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00158-0637

LIFT LOCK MOUNT
(Superseded to 680E01914)

$34.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00322

DECK FRONT ROD ASSEMBLY

$127.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00347-0637

DECK LIFT ARM ASSEMBLY

$109.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 680-00349-0637

FRONT DECK LIFT SHAFT

$181.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 680-00350-0637

DECK LIFT SHAFT

$218.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08032

LOCK LATCH BRACKET
(Superseded to 703E08032)

$9.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08062-0637

DECK LIFT ARM

$19.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08070-0637

DECK LIFT BELLCRANK

$21.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08252-0637

DECK LIFT PEDAL

$46.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-08384

DECK LIFT LINK

$10.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-08388A

DECK LIFT LINK

$321.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-09695-0637

FLAT WASHER
(Superseded to 703-09695A)

$5.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-04186

SCREW 1/2-13 X 1.25 GR5

$7.49

$

In Stock, only 1 left!

0

15

Cub Cadet 710-05355

BOLT 5/8-16 X 2.63

$17.99

$

In Stock, only 2 left!

0

16

Cub Cadet 710-05418

SCREW 1/4-20 X 5.00 GR5

$

$

Not available

17

Cub Cadet 710-06047

SCREW 5/8-11 X 2.25 GR5

$4.49

$

In Stock, only 1 left!

0

18

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

19

Cub Cadet 710-3067

BOLT 1/2-13X1.75 GR5

$6.99

$

In Stock, only 2 left!

0

20

Cub Cadet 711-04061

CLEVIS PIN .500 X 1.25

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 711-05072

FRONT LIFT SHAFT

$61.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 711-05629

DETENT PIN

$14.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04150

NUT

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-04151

FLANGE LOCK NUT

$3.99

$

In Stock, only 4 left!

0

26

Cub Cadet 712-05007

NUT-CTRLCK FLG HEX

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 912-3015

HEX NUT
(Superseded to 712-3015)

$4.99

$

In Stock, only 2 left!

0

28

Cub Cadet 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 914-0149B

COTTER PIN
(Superseded to 714-0149B)

$

$

Not available

30

Cub Cadet 753-04070

LYNCH PIN

$9.99

$

In Stock, Qty 20+

0

31

Cub Cadet 914-0507

COTTER PIN 3/32

$4.49

$

In Stock, Qty 17

0

32

Cub Cadet 720-04183

GRIP

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 728-04016

FULL TUBULAR RIVET

$3.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 732-04929

EXTENSION SPRING

$8.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 732-0992

COMPRESSION SPRING .656 ODX 2.445"

$4.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0242

BELL WASHER .337 X.867 X .057

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 936-0272

FLAT WASHER .510 X 1.00 X .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 936-0326

FLAT WASHER .510 X 1.000 X .125
(Superseded to 736-0326)

$4.49

$

In Stock, only 4 left!

0

39

Cub Cadet 736-04602

FLAT WASHER NYLON 5/8

$3.99

$

In Stock, Qty 8

0

40

Cub Cadet 738-04222

SHOULDER SCREW .437X.50 1/4-20

$2.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 738-1127B

SHOULDER SCREW .625 X .442 X 3/8-16

$7.49

$

In Stock, Qty 11

0

42

Cub Cadet 941-0475

BUSHING .380 ID

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 747-05465A

LIFT LATCH LOCK ROD

$14.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 948-3051

FLANGE BEARING
(Superseded to 948-3051A)

$26.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 750-05468

SPACER

$8.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 950-0960A

SPACER

$13.99

$

In Stock, only 3 left!

0
