S-60 KH (53RN2RUD050) - Cub Cadet 60" Tank S Zero-Turn Mower, Kohler (2015) Fuel Tank Assembly Parts Diagram

60" Tank S Zero-Turn Mower, Kohler

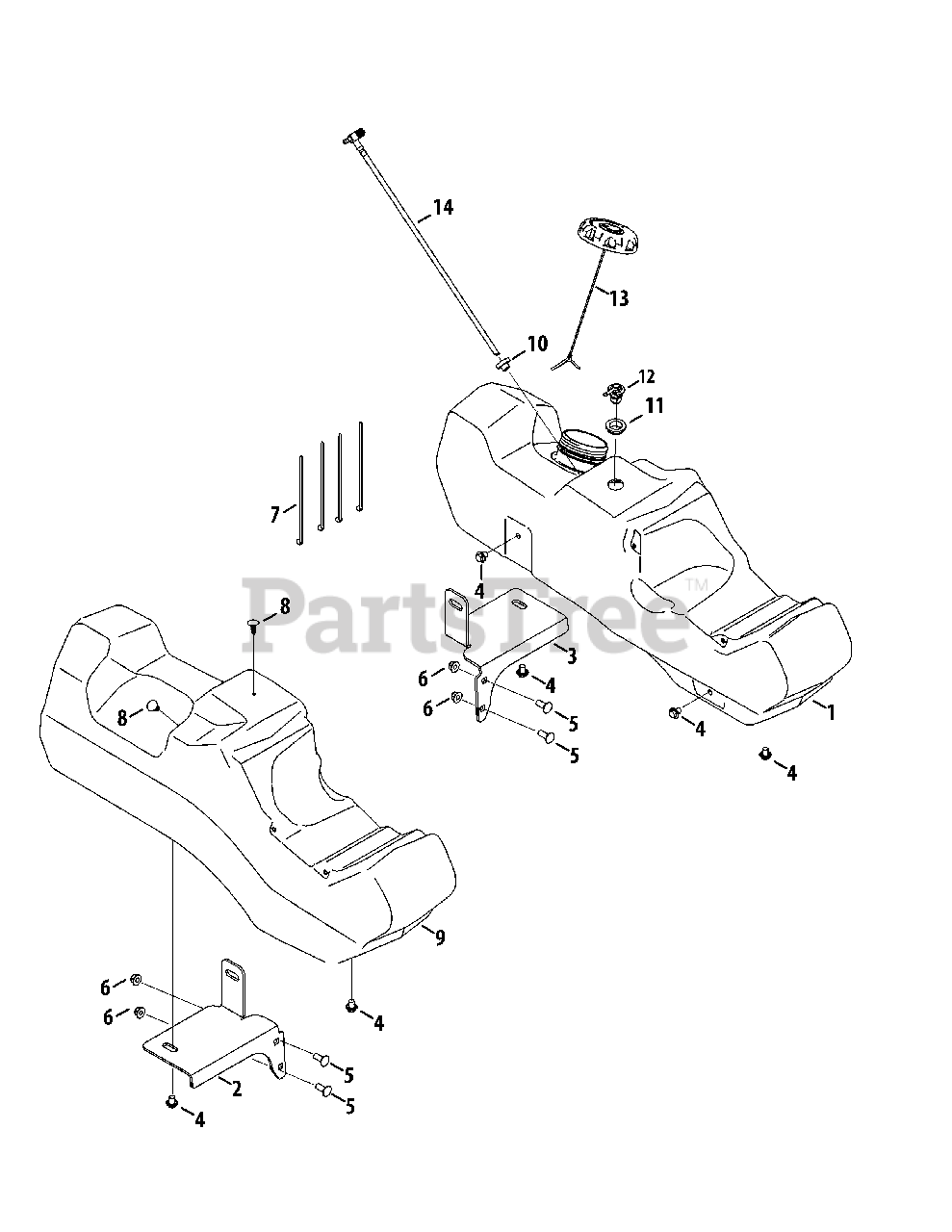

Fuel Tank Assembly Parts Diagram

  • Title

1

Cub Cadet 651-05090

Fuel Tank Assembly, LH
(Superseded to 951-05090)

$424.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-08484-0637

Rear Fuel Bracket, RH

$47.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08495-0637

Rear Fuel Bracket, LH

$47.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-05412

Hex Cap Screw, 3/8-16 x .500

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x .500

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04065

Nut, 3/8-16, Flangelock

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 726-3046

Clip, .250 Dia.

$3.99

$

In Stock, Qty 16

0

9

Cub Cadet 751-14490

Console, RH

$256.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 02002253

Fuel Tank Grommet

$4.99

$

In Stock, only 2 left!

0

11

Cub Cadet n/a

Grommet, .755 x .955 x .55

$

$

Currently unavailable

12

Cub Cadet 951-10375

Fuel Rollover Valve

$77.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 951-12754

Fuel Cap

$49.99

$

In Stock, only 4 left!

0

14

Cub Cadet n/a

Fuel Pickup Valve

$

$

Currently unavailable
