S-60 KH (53RN2RUD050) - Cub Cadet 60" Tank S Zero-Turn Mower, Kohler (2015) Front Axle Assembly Parts Diagram

60" Tank S Zero-Turn Mower, Kohler

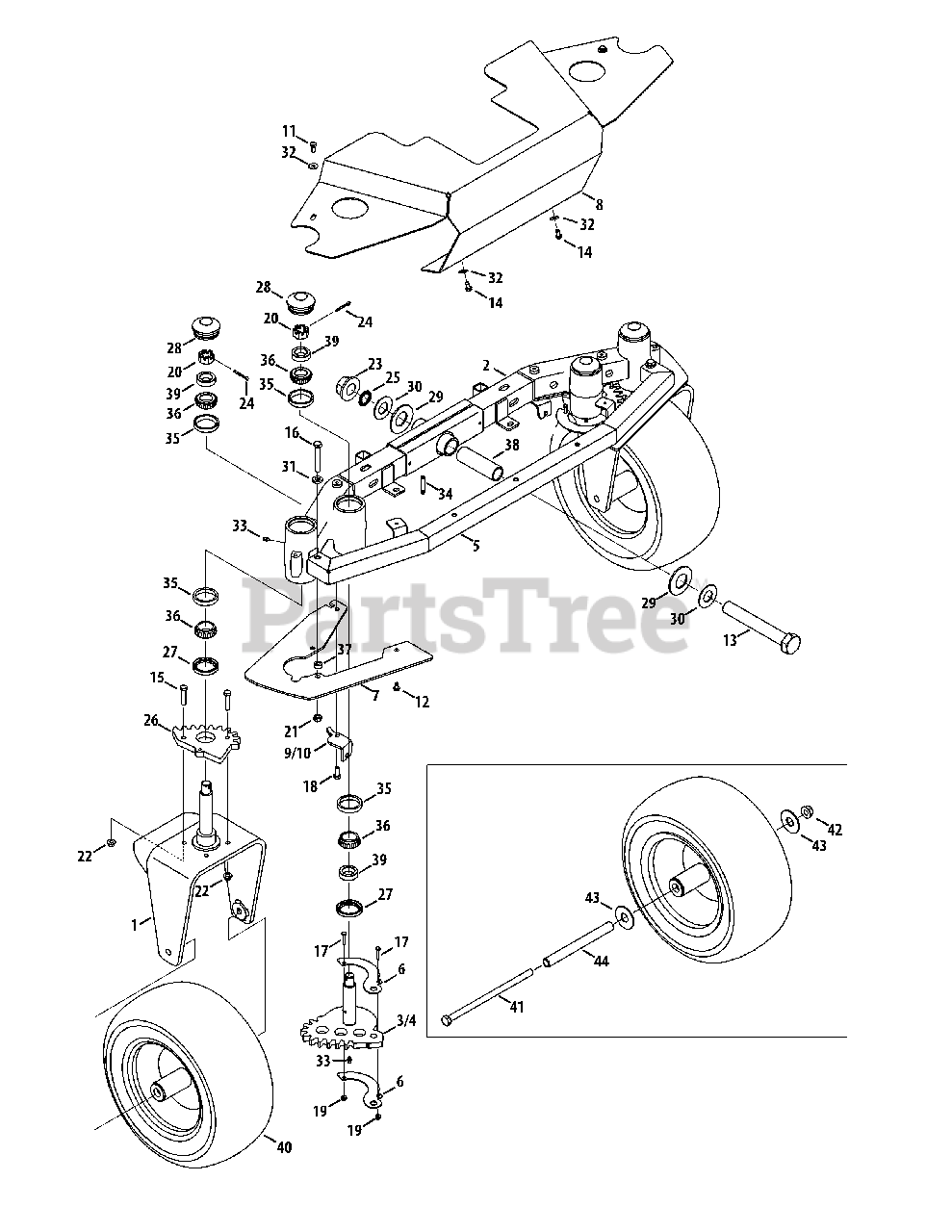

Front Axle Assembly Parts Diagram

  • Title

1

Cub Cadet 680-00138-0637

Yoke Assembly

$211.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00153-0637

Axle Assembly

$710.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 980-00154

LH Steering Gear

$149.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 980-00155

RH Steering Gear

$149.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 680-00165-0637

Front Bumper

$175.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-07931A

Gear Cable Mounting Bracket

$16.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08383-0637

Gear Panel Cover

$55.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08396-0637

Axle Cover

$146.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08800-0637

RH Steering Cable Bracket

$16.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08801-0637

LH Steering Cable Bracket

$19.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0433

Hex Cap Screw, 1/4-20 x .625

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 710-05070A

Screw, 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

13

Cub Cadet 710-05189

Hex Cap Screw, 1-14 x 7.0
(Superseded to 710-05189C)

$59.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0805A

Hex Cap Screw, 5/16-18 x 1.50

$4.49

$

In Stock, only 3 left!

0

16

Cub Cadet 710-0859

Hex Cap Screw, 3/8-16 x 2.50

$6.99

$

In Stock, Qty 16

0

17

Cub Cadet 710-1194

Machine Screw, #10-24 x 1.00

$3.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-1880

Hex Cap Screw, 5/16-18 x .75

$4.99

$

In Stock, Qty 11

0

19

Cub Cadet 712-0161

Nut, #10-24, Hexlock

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet 712-0359

Nut, 3/4-16, Slotted

$11.99

$

In Stock, only 1 left!

0

21

Cub Cadet 712-0375

Nut, 3/8-16, Hexlock

$4.49

$

In Stock, Qty 6

0

22

Cub Cadet 712-04054

Nut, 5/16-18, Flangelock

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04310

Nut, 1.0-14, Flangelock

$9.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 716-04191

Retainer Ring

$3.99

$

In Stock, only 4 left!

0

26

Cub Cadet 917-04822

Steering Gear

$71.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 721-04462

Seal, 14858

$10.99

$

In Stock, Qty 10

0

28

Cub Cadet 731-07348

Axle Grease Cap

$8.99

$

In Stock, only 2 left!

0

29

Cub Cadet 736-04604

Bell Washer, 1.25 x 2.50 x .180

$8.49

$

In Stock, only 3 left!

0

30

Cub Cadet 736-04605

Washer, 1.00 x 2.00 x .075

$4.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-3010

Washer, .407 x .812 x .135

$4.99

$

In Stock, only 2 left!

0

32

Cub Cadet 736-3090

Washer, .260 x .720 x .060

$6.99

$

In Stock, only 1 left!

0

33

Cub Cadet 737-04345

Grease Fitting, 1/4-28

$4.99

$

In Stock, Qty 6

0

34

Cub Cadet 737-04352

Grease Fitting, 1 39/64

$15.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 741-04548

Cup Bearing

$8.99

$

In Stock, Qty 14

0

36

Cub Cadet 741-04549

Cone Bearing

$19.99

$

In Stock, Qty 14

0

37

Cub Cadet 750-04776

Spacer, .380 x .625 x .265

$5.49

$

In Stock, only 2 left!

0

38

Cub Cadet 750-05438

Spacer, 1.005 x 1.247 x 4.1

$25.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 750-05600

Spacer, 1.00 x 1.50 x .437

$7.49

$

In Stock, only 1 left!

0

40

Cub Cadet 634-05150-0931

Wheel Assembly, 15 x 6.5-8

$343.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-05374

Hex Cap Screw, 1/2-13 x 9.5

$11.99

$

In Stock, only 1 left!

0

42

Cub Cadet 712-04150

Nut, 1/2-13, Flangelock

$4.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 736-3014

Washer, .781 x 2.00 x .105

$4.49

$

In Stock, only 4 left!

0

44

Cub Cadet 750-05595

Spacer, .51 x .750 x 7.38

$16.99

$

In Stock, only 1 left!

0
