S 50XT (5901616) - Snapper Pro S50XT Series 48" Zero-Turn Mower, 25hp Briggs & Stratton, CARB Wheel & Tire Group Parts Diagram

S50XT Series 48" Zero-Turn Mower, 25hp Briggs & Stratton, CARB

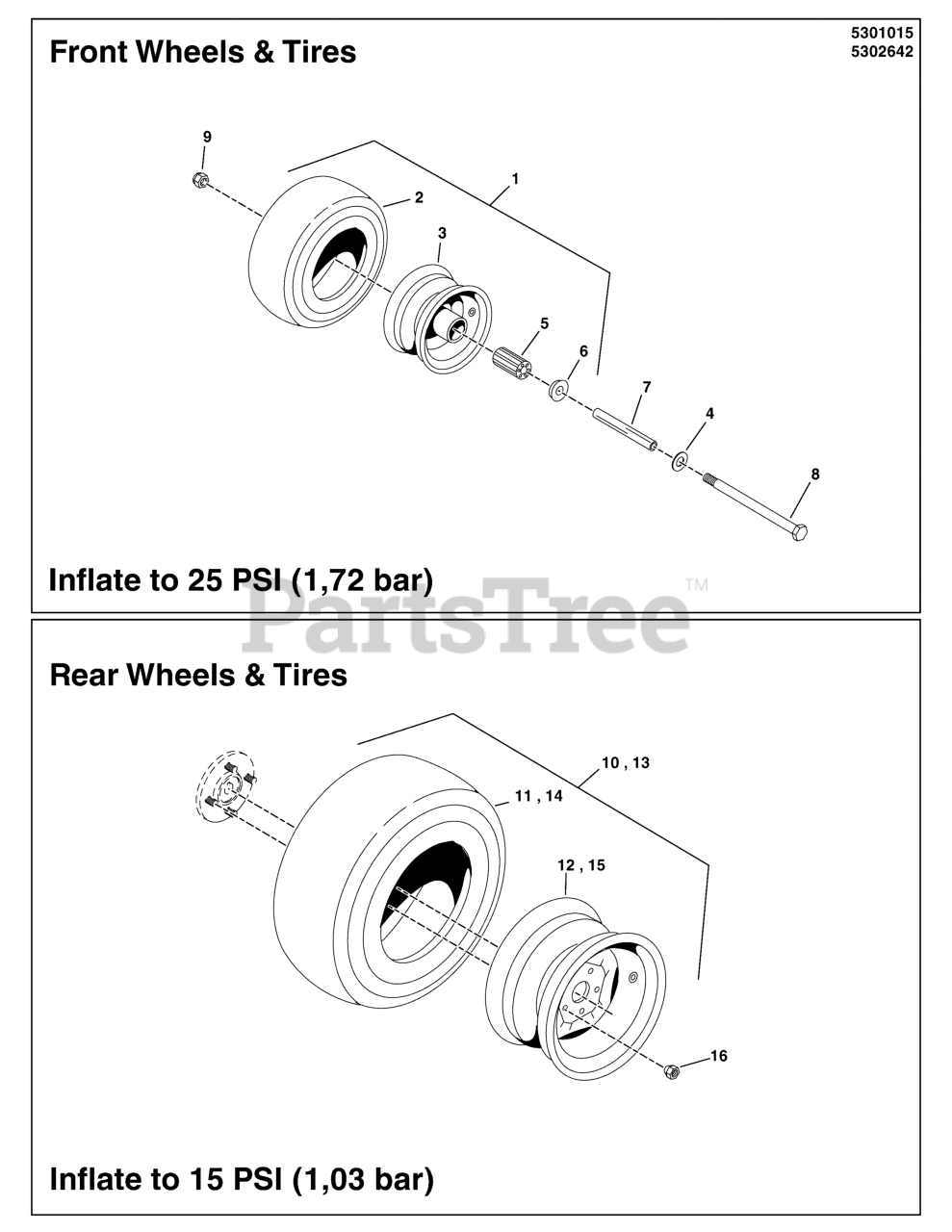

Wheel & Tire Group Parts Diagram

  • Title

1

Snapper Pro 5101418

WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO
(Superseded to 5101418YP)

$127.99

$

In Stock, Qty 11

0

2

Snapper Pro 5022433X1

TIRE, 11 X 4.0-5

Note: (SV)

$70.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5101418X2

WHEEL FOR 11X4.0-5 TIRE ASSM

Note: (SV)

$

$

Currently unavailable

4

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

5

Snapper Pro 5101418X1

BEARING, CASTER WHEEL, 11X4-5 BEAD LOCK

Note: (SV)

$27.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5021043

RETAINER, BEARING

Note: (SV)

$6.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5045996

CASTER AXLE DDSH
(Superseded to 5045996SM)

$15.99

$

In Stock, Qty 18

0

8

Snapper Pro 5025017X56

BOLT, 1/2-13 X 7 GD8 YZ
(Superseded to 5025017X56YP)

$14.99

$

In Stock, Qty 8

0

9

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

10

Snapper Pro 5101068

TIRE ASM, 20 X 7 - 10, TURF MASTER
(Superseded to 5101068FS)

Note: (36" Models)

$284.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5101068X1

TIRE, 20 X 7 -10 NHS, TURF MASTER

Note: (SV - 36" Models)

$225.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5101068X2

WHEEL, 10 X 6.00 4/4 SOLID, F237

Note: (SV - 36" Models)

$228.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5103019

TIRE ASM, REAR, 20 X 10.0 X 10
(Superseded to 5103019YP)

Note: (48" Models)

$373.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5101345X1

TIRE, REAR, 20 X 10.0 X 10

Note: (SV - 48" Models)

$

$

Currently unavailable

15

Snapper Pro 5102329X2

WHEEL, 10X7.00 4/4 SOLID F237 2.625 OS

Note: (SV - 48" Models)

$

$

Currently unavailable

16

Snapper Pro 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0
