S 50XT (5901616) - Snapper Pro S50XT Series 48" Zero-Turn Mower, 25hp Briggs & Stratton, CARB Electrical Group - Briggs & Stratton Parts Diagram

S50XT Series 48" Zero-Turn Mower, 25hp Briggs & Stratton, CARB

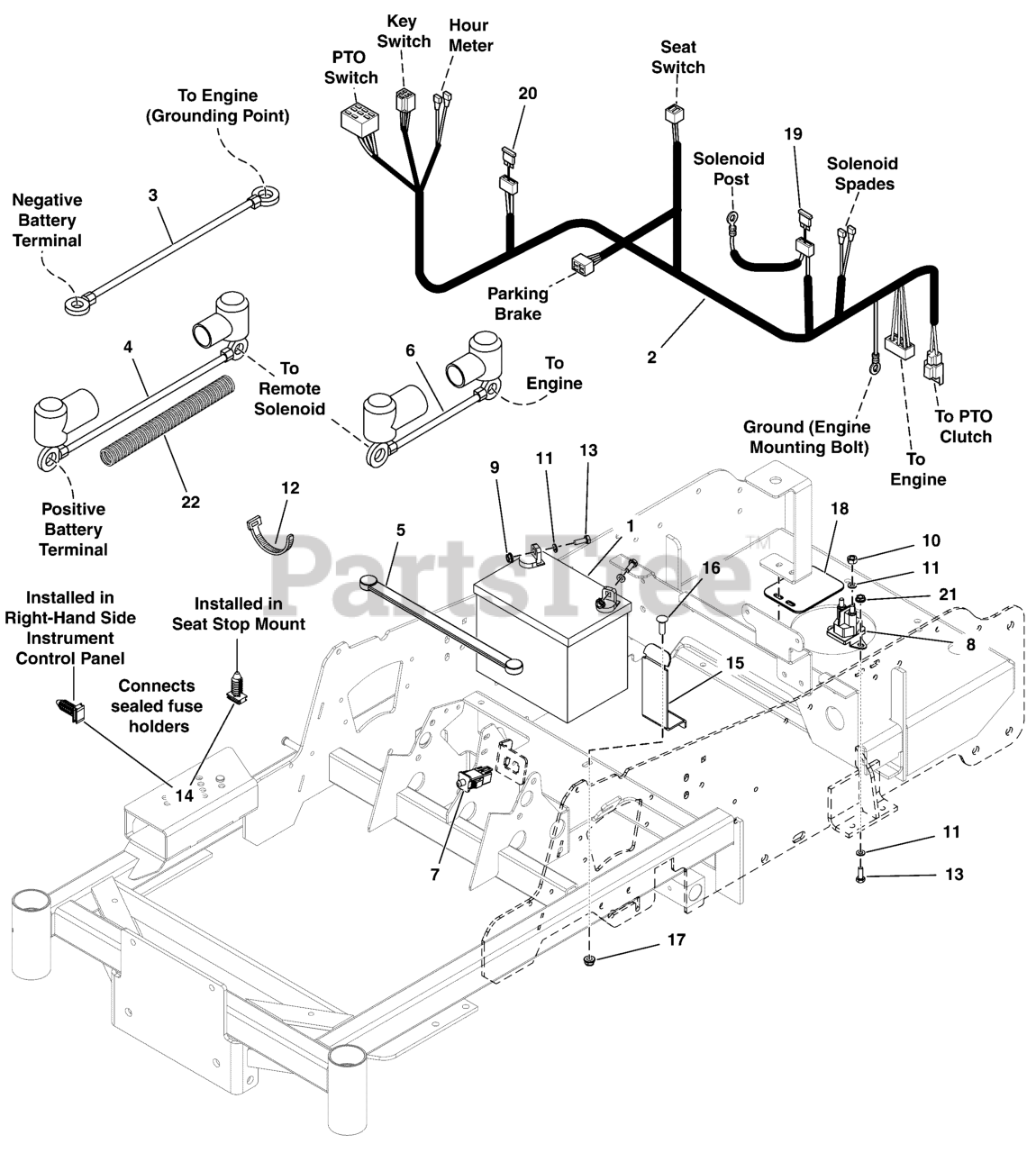

Electrical Group - Briggs & Stratton Parts Diagram

  • Title

1

BATTERY, WET ( BCIU1, 350 CCA)

$

$

Not available

2

Snapper Pro 5415589

WIRE HARNESS, MAIN, PROSUMER, NO NEUTRAL
(Superseded to 5415589FS)

Note: (S/N: 2017633638 & Below)

$160.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5416016

WIRE HARNESS, MAIN, SM, ZTR

Note: (S/N: 2017633639 - 2017954955)

$176.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5105536

HARNESS, Wiring, Small ZTR
(Superseded to 5105536YP)

Note: (S/N: 2017954956 & Above)

$198.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5101396

CABLE, BATTERY, NEG, 30, 1/4-5/16
(Superseded to 5101396YP)

$35.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5021405

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 1722009

STRAP, BATTERY, 14 LONG, Rubber
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5044732

BATTERY CABLE, POS, 8, 1/4-5/16
(Superseded to 5044732YP)

$10.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

8

Snapper Pro 1755382

SOLENOID, STD-BRACKET, 2-SPADE
(Superseded to 1755382FS)

$27.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 80003921

NUT,1/4-20,KEPS,CONICAL WSHR,ZC/CL
(Superseded to 703061)

$3.49

$

In Stock, Qty 13

0

11

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

13

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

14

Snapper Pro 5103761

FIR TREE MOUNT, PACKARD
(Superseded to 5103761YP)

$5.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5415727A

PLATE, HARNESS/BATTERY SUPPORT - BLK

$

$

Currently unavailable

16

Snapper Pro 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

17

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5415767A

PLATE, SOLENOID COVER - BLK

$

$

Currently unavailable

19

Snapper Pro 5021603

FUSE, ATO-20 (20 AMP)(SV)
(Superseded to 5021603SM)

Note: (SV)

$4.99

$

In Stock, only 2 left!

0

20

Snapper Pro 5101935

FUSE, ATO-15 (15 AMP)(SV)
(Superseded to 5101935YP)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

22

Snapper Pro 5050927X18

WIRE LOOM, 3/8 ID X 18 IN

$

$

Currently unavailable
