S 50XT (5901611) - Snapper Pro S50XT Series 48" Zero-Turn Mower, 19hp Kawasaki Transaxle Drive Group - Kawasaki Models Parts Diagram

S50XT Series 48" Zero-Turn Mower, 19hp Kawasaki

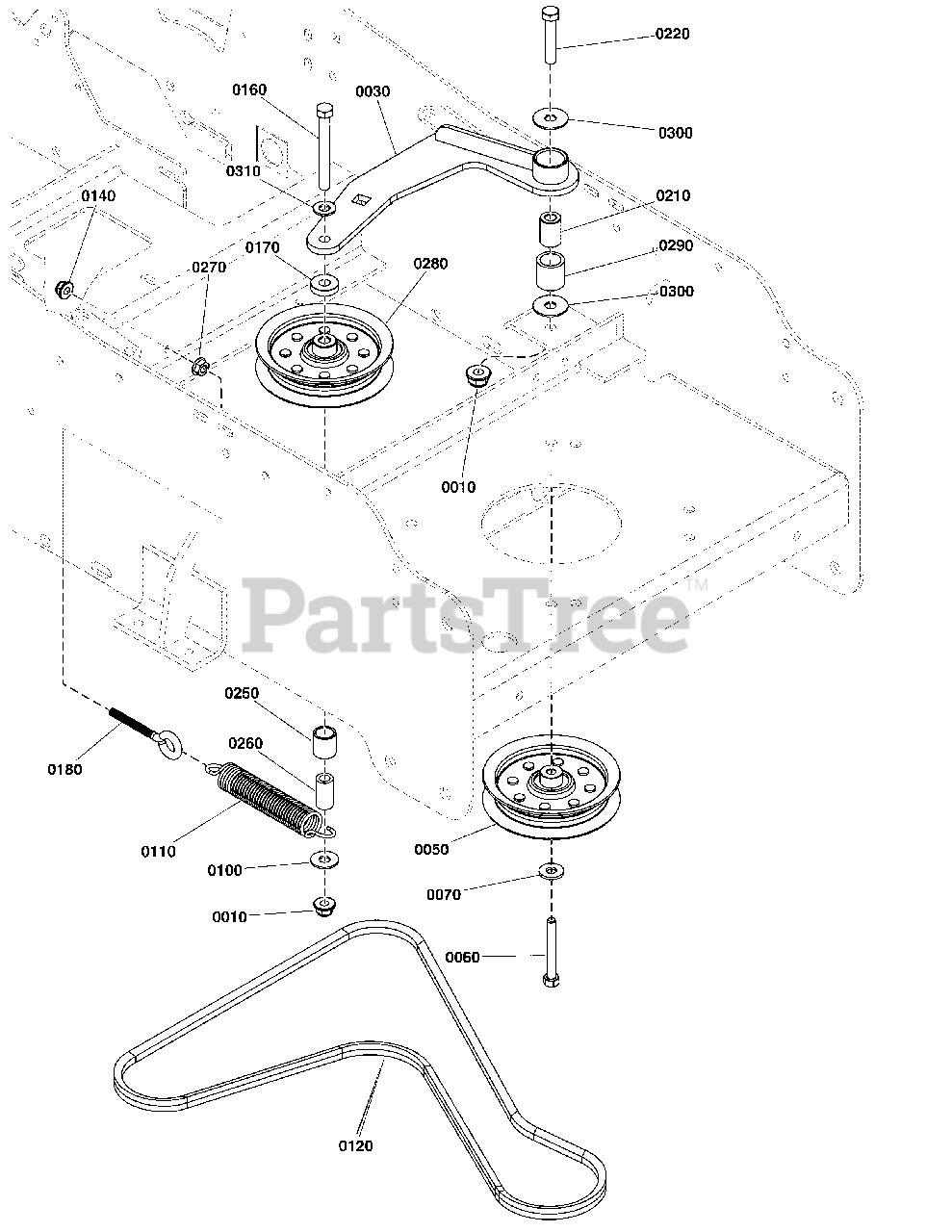

Transaxle Drive Group - Kawasaki Models Parts Diagram

  • Title

0010

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0030

Snapper Pro 5415852A

WELD, IDLER ARM, F60Z/S50XT - BLK

$

$

Not available

0050

Snapper Pro 5101380

PULLEY-IDLER, 4.06OD, .375ID, .75W STL
(Superseded to 5101380YP)

$51.99

$

In Stock, only 1 left!

0

0060

Snapper Pro 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

0070

Snapper Pro 5025544

BOLT,HEX FLG,SER GD5 3/8-16X2, PATCH,CZ
(Superseded to 5025544YP)

$6.49

$

Usually ships in 2-12 days

0

0100

Snapper Pro 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

0110

Snapper Pro 1715435

SPRING, EXTENSION, 1.00
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

0120

Snapper Pro 5105189

BELT, SPA-SEC, 66.26" EL, ARAMID, WRAPED
(Superseded to 5105189YP)

$45.99

$

In Stock, Qty 19

0

0140

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0160

Snapper Pro 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

0170

Snapper Pro 5044960

SPACER, .39 X 1.00 X .25, PM, CZ
(Superseded to 5044960SM)

$5.49

$

In Stock, Qty 7

0

0180

Snapper Pro 5025141X26

EYE BOLT,5/16-18 X3.5,2.13THRD,.55EYE,CZ
(Superseded to 5025141X26YP)

$7.99

$

In Stock, Qty 9

0

0210

Snapper Pro 5042658

SPACER, .38 X .75 X 1.06, YZ
(Superseded to 5042658SM)

$7.49

$

In Stock, only 1 left!

0

0220

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

0250

Snapper Pro 5102946

SPACER, .64 X .82 X .88, CZ
(Superseded to 5102946FS)

$12.99

$

Usually ships in 2-12 days

0

0260

Snapper Pro 1674669

SPACER-0.39 IDX0.625ODX1.15 LG CASE HARD
(Superseded to 1674669SM)

$11.99

$

In Stock, Qty 20+

0

0270

Snapper Pro 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

0280

Snapper Pro 5101380

PULLEY-IDLER, 4.06OD, .375ID, .75W STL
(Superseded to 5101380YP)

$51.99

$

In Stock, only 1 left!

0

0290

Snapper Pro 5020876B

BUSHING, BRASS, 3/4 X 1 X 1
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 1 left!

0

0300

Snapper Pro 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

0310

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0
