S 50XT (5901611) - Snapper Pro S50XT Series 48" Zero-Turn Mower, 19hp Kawasaki Rear Bumper Group Parts Diagram

S50XT Series 48" Zero-Turn Mower, 19hp Kawasaki

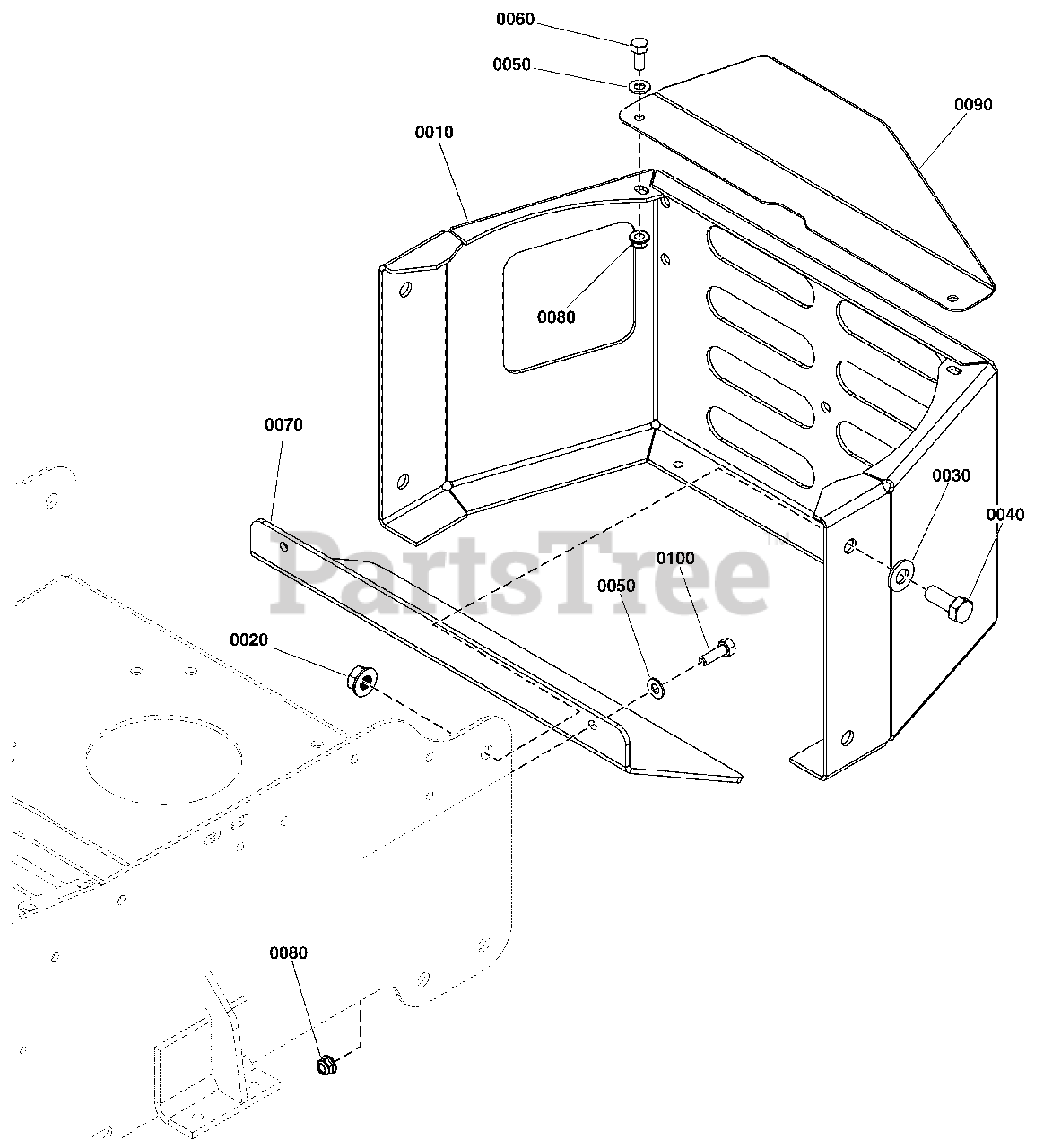

Rear Bumper Group Parts Diagram

  • Title
0010

Snapper Pro 5415849D

WELD, BUMPER, S50XT - RED
(Superseded to 5415849DYP)

$183.99

$

Usually ships in 2-12 days

0

0020

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0030

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

0040

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

0050

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0060

Snapper Pro 5025017X8

BOLT, 1/2-13 X 1, GD5 YZ

$

$

Currently unavailable

0070

Snapper Pro 5403593A

SHIELD, MUFFLER - BLK

$

$

Currently unavailable

0080

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0090

Snapper Pro 5410799D

PLATE, CARB PROTECTOR - RED
(Superseded to 5410799DYP)

$32.99

$

Usually ships in 2-12 days

0

0100

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0
