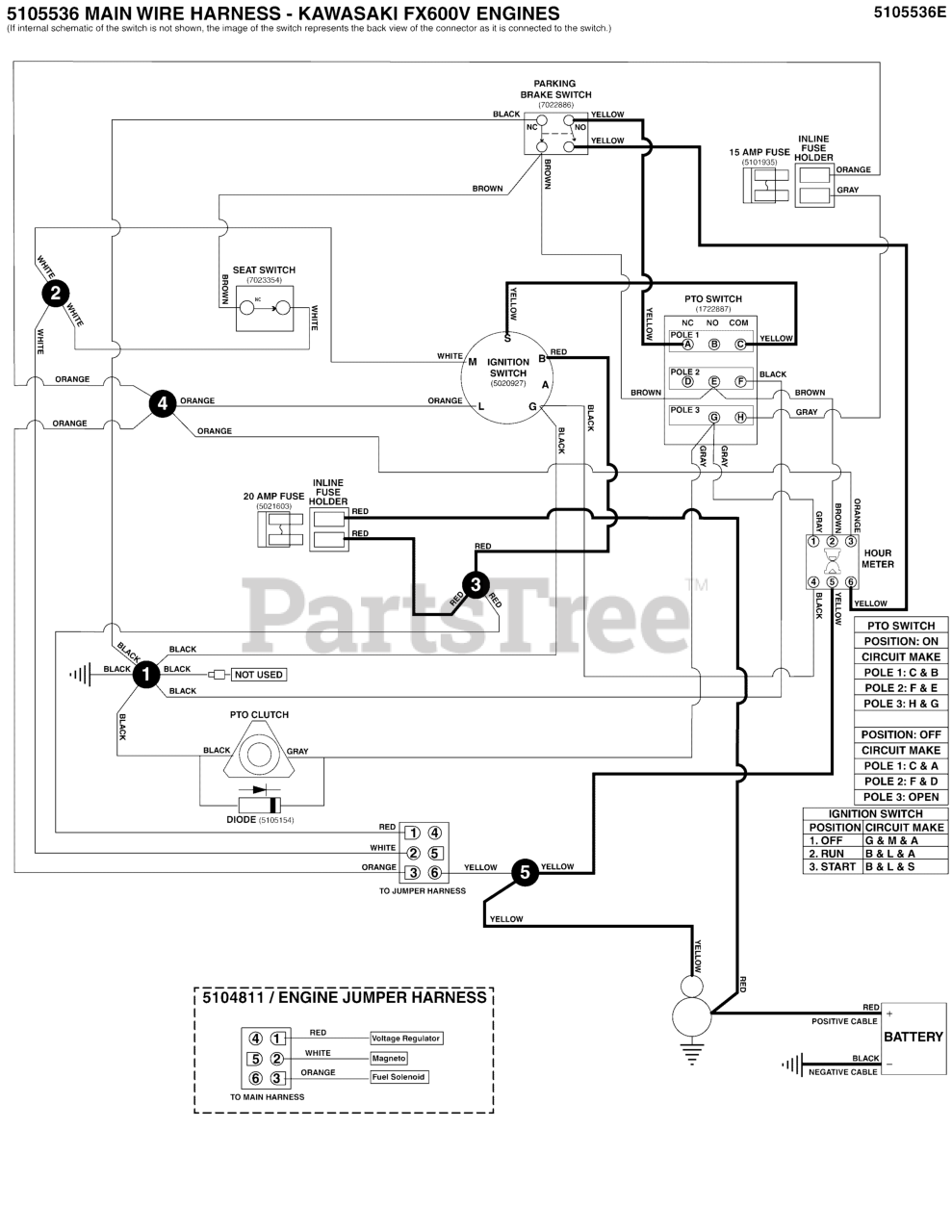

S 50XT (5901611) - Snapper Pro S50XT Series 48" Zero-Turn Mower, 19hp Kawasaki Electrical Schematic - Cranking Circuit - S/N: 2017954956 & Above Parts Diagram

S50XT Series 48" Zero-Turn Mower, 19hp Kawasaki

Electrical Schematic - Cranking Circuit - S/N: 2017954956 & Above Parts Diagram

  • Title
5105536

Snapper Pro 5105536

HARNESS, Wiring, Small ZTR
(Superseded to 5105536YP)

$198.99

$

Usually ships in 2-12 days

0

5104811

Snapper Pro 5104811

WIRE HARNESS, JUMPER, KAWI
(Superseded to 5104811YP)

$18.99

$

Usually ships in 2-12 days

0
