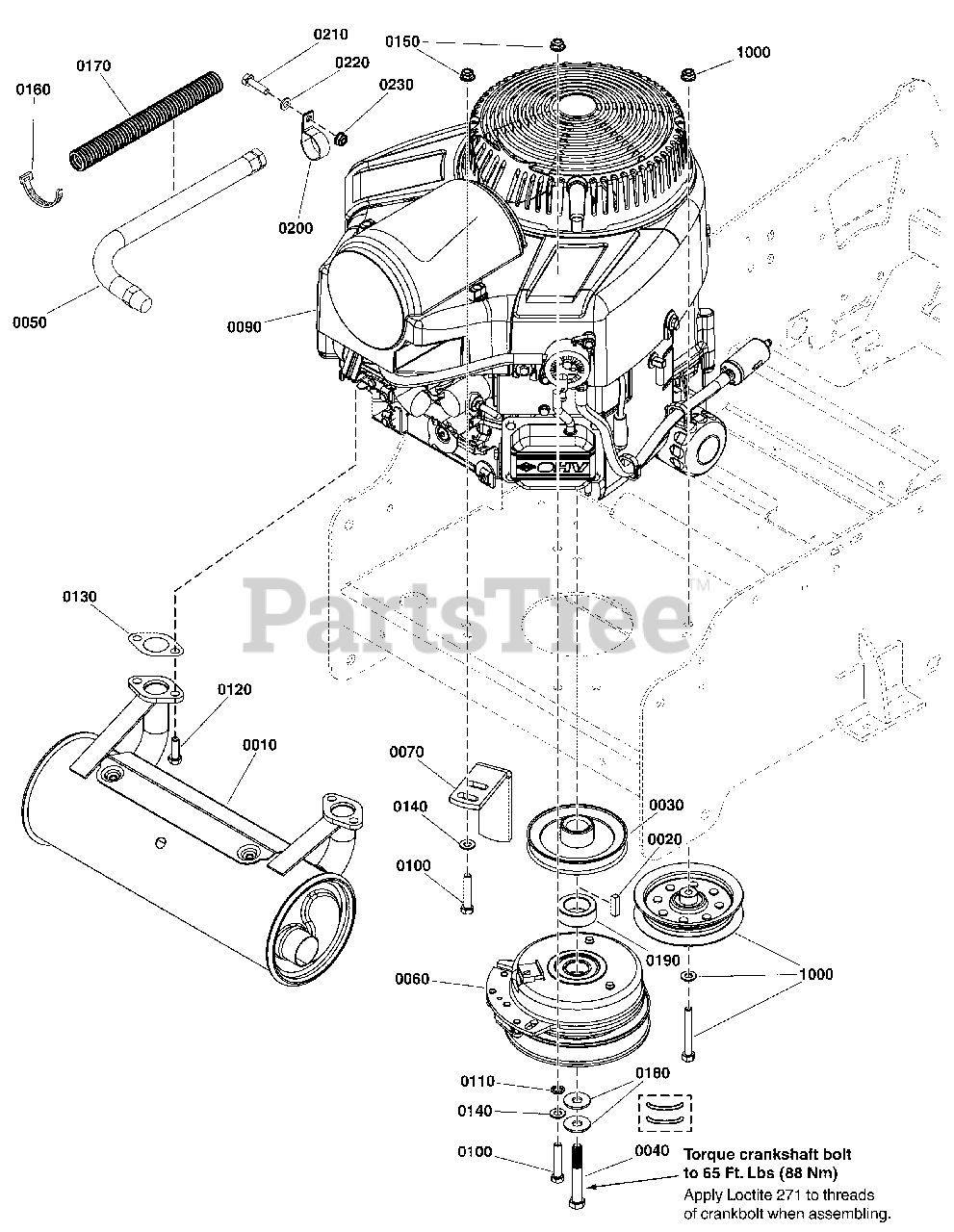

S 50XT (5901610) - Snapper Pro S50XT Series 36" Zero-Turn Mower, 25hp Briggs & Stratton Engine & PTO Group - Briggs & Stratton Parts Diagram

S50XT Series 36" Zero-Turn Mower, 25hp Briggs & Stratton

Engine & PTO Group - Briggs & Stratton Parts Diagram

  • Title

0010

Snapper Pro 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

$222.99

$

Usually ships in 2-12 days

0

0020

Snapper Pro 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

0030

Snapper Pro 5101338

PULLEY, PUMP DRIVE, 4.857 OB X 1-1/8
(Superseded to 5101338YP)

$46.99

$

Usually ships in 2-12 days

0

0040

Snapper Pro 5102864

BOLT, CRANKSHAFT,7/16-20X2-1/2, GD8
(Superseded to 5102864YP)

$5.49

$

In Stock, only 1 left!

0

0050

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

0060

Snapper Pro 5105087

CLUTCH, WARNER, 125 FT LBS, 1-1/8" BORE
(Superseded to 5105087YP)

$420.99

$

Usually ships in 2-12 days

0

0070

Snapper Pro 5404967A

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

Usually ships in 2-12 days

0

0090

Snapper Pro 44T977-0005-G1

* ENGINE, 25HP B&S COMM TURF, 1-1/8 X 4.29

$

$

Currently unavailable

0100

Snapper Pro 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

0110

Snapper Pro 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

0120

Snapper Pro 94480

SCREW
(Superseded to 690341)

$5.99

$

In Stock, only 3 left!

0

0130

Snapper Pro 273485

GASKET, EXHAUST
(Superseded to 690970)

$4.99

$

In Stock, Qty 20+

0

0140

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0150

Snapper Pro 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

$3.99

$

In Stock, only 2 left!

0

0160

Snapper Pro 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

0170

Snapper Pro 5050833X11

WIRE LOOM, 1/2 ID, 11.00 LONG
(Superseded to 5050833X11YP)

$3.49

$

Usually ships in 2-12 days

0

0180

Snapper Pro 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

0190

Snapper Pro 5103892

SPACER, 1.13 X 1.75 X .75, CZ
(Superseded to 5103892YP)

$20.99

$

Usually ships in 2-12 days

0

0200

Snapper Pro 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0210

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0220

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0230

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

1000

Snapper Pro REF-TDG

Refer to: Transaxle Drive Group

$

$

Currently unavailable
