S 50XT (5901272) - Snapper Pro S50XT Series 36" Zero-Turn Mower, 24hp Briggs & Stratton Instrument Control Panel Group - S/N: 2016499707 & Above Parts Diagram

S50XT Series 36" Zero-Turn Mower, 24hp Briggs & Stratton

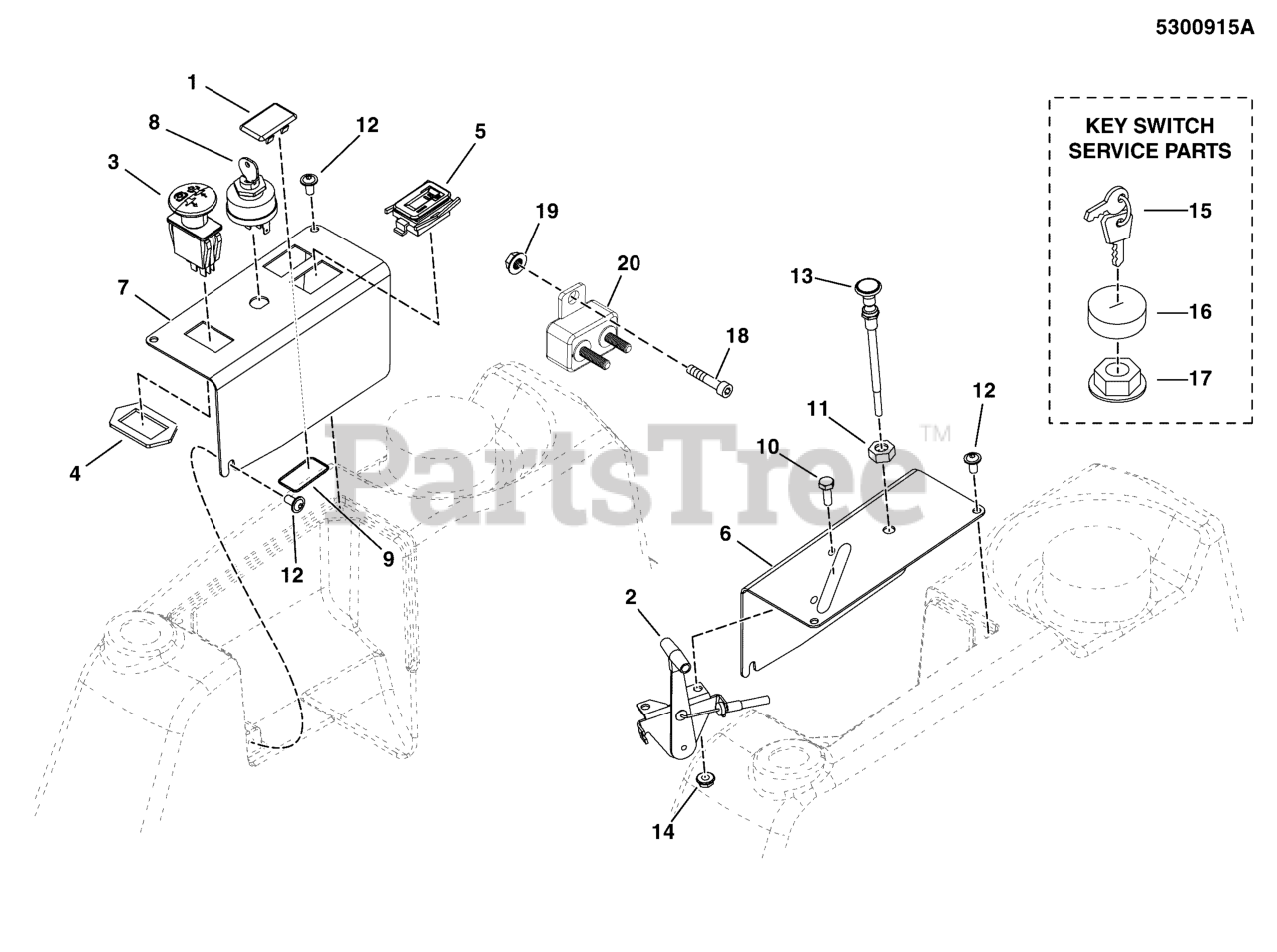

Instrument Control Panel Group - S/N: 2016499707 & Above Parts Diagram

  • Title

1

Snapper Pro 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

2

Snapper Pro 5047629

CABLE, THROTTLE CONTROL, 48"
(Superseded to 5047629SM)

$62.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

4

Snapper Pro 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

5

* HOUR METER, ASSEMBLY

$

$

Not available

6

Snapper Pro 5410846A

CONTROL PANEL, LEFT - BLK

$18.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5410847A

CONTROL PANEL, RIGHT - BLK

$17.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref # 15-17)

$33.99

$

In Stock, Qty 7

0

9

Snapper Pro 5022269

O-RING, 7/8 ID X 1/16 W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

10

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

11

Snapper Pro 5025309

NUT, 3/8-24 HEX JAM
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.49

$

In Stock, Qty 18

0

13

Snapper Pro 5047779

CABLE, CHOKE CONTROL, 51 (Z)
(Superseded to 5047779SM)

$52.99

$

In Stock, Qty 5

0

14

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

15

Snapper Pro 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

16

Snapper Pro 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

17

Snapper Pro 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

18

Snapper Pro 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.49

$

In Stock, Qty 18

0

19

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 1665238

BREAKER-CIRCUIT 12VOLT 20AMPS W/TAB
(Superseded to 1665238SM)

$14.99

$

In Stock, Qty 20+

0
