S 50XT (5901209) - Snapper Pro S50XT Series 48" Zero-Turn Mower, 19hp Kawasaki Electrical Group - Kawasaki Models (S/N: 2016499707 & Above) Parts Diagram

S50XT Series 48" Zero-Turn Mower, 19hp Kawasaki

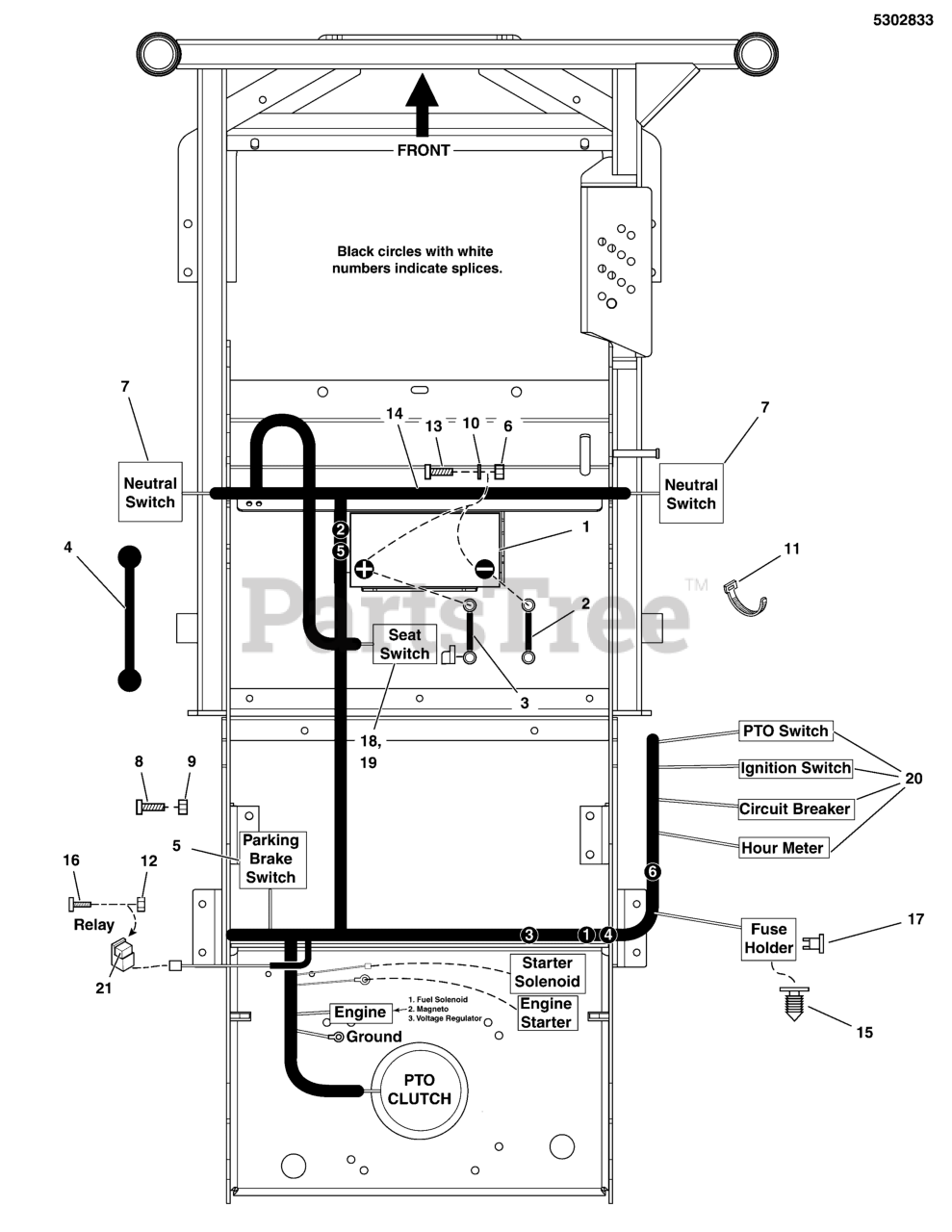

Electrical Group - Kawasaki Models (S/N: 2016499707 & Above) Parts Diagram

  • Title

1

BATTERY, CE, 12 VOLT 340 CCA - 11U1L

$

$

Not available

2

Snapper Pro 5101396

CABLE, BATTERY, NEG, 30, 1/4-5/16
(Superseded to 5101396YP)

$35.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5044876

BATTERY CABLE, POS, 35, 1/4-5/16
(Superseded to 5044876SM)

$29.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 1722009

STRAP-BLACK RUBB
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 20+

0

6

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5101280

SWITCH, LOW PROF, NC/NO
(Superseded to 5101280YP)

$30.99

$

In Stock, Qty 9

0

8

Snapper Pro 5025179X4

SCREW- #10-24 X 1/2 ROUND PHILLIPS

$

$

Currently unavailable

9

Snapper Pro 5025029

NUT, #10-24 HEX
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

12

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

13

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

14

Snapper Pro 5410843

WIRE HARNESS, KAWI FX, S50XT
(Superseded to 5410843FS)

$379.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5103761

FIR TREE MOUNT, PACKARD
(Superseded to 5103761YP)

$5.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5101935

FUSE, ATO-15 (15 AMP)(SV)
(Superseded to 5101935YP)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5100540

SWITCH, NC, W/ BOLT-IN BASE
(Superseded to 5100540YP)

$32.99

$

In Stock, only 1 left!

0

19

Snapper Pro 5100541

SWITCH, NC, W/ TWIST-IN BASE

$29.99

$

Usually ships in 2-12 days

0

20

SEE INSTRUMENT CONTROL PANEL GROUP

$

$

Not available

21

Snapper Pro 5021766

RELAY, 12V, 40A (SV)
(Superseded to 5021766SM)

$24.99

$

Usually ships in 2-12 days

0
