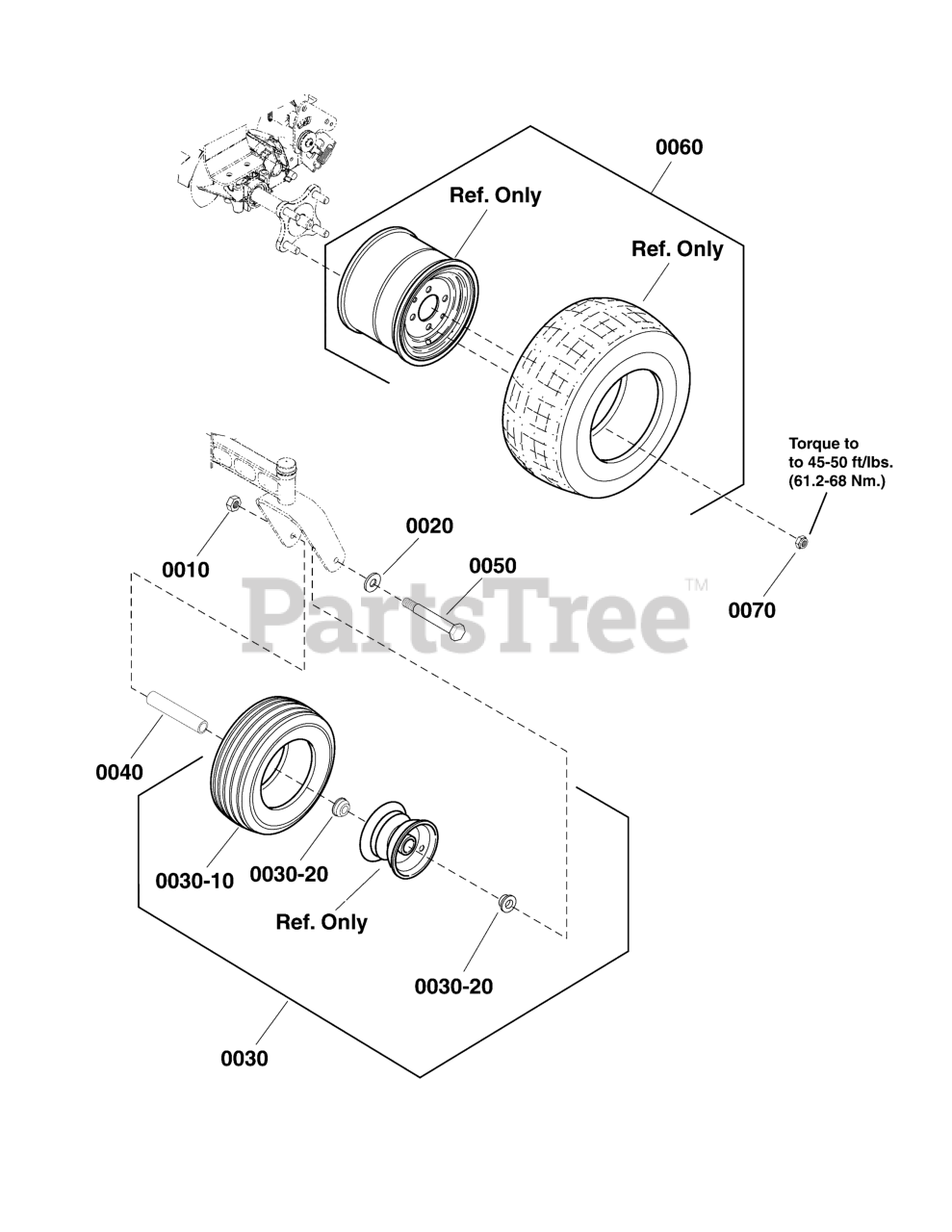

S 40 (5901739) - Snapper Pro S40 Series 48" Zero-Turn Mower, 23hp Briggs & Stratton Wheel & Tire Group S/N: 4000771923 and Below Parts Diagram

S40 Series 48" Zero-Turn Mower, 23hp Briggs & Stratton

Wheel & Tire Group S/N: 4000771923 and Below Parts Diagram

  • Title

0010

Snapper Pro 1930650

NUT-HEX FLANGE 7/16-14 TWO WAY LK GA BLK
(Superseded to 1930650SM)

$5.49

$

In Stock, only 4 left!

0

0020

Snapper Pro 80004028

WSHR,7/16 ID X .065 THK, FLAT,ZINC/CLEAR
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

0030

Snapper Pro 1734013

ASSEMBLY, Front Wheel & Tire ZTS, 11 x 4.00-5 (Not Shown - Bushings #1739281)
(Superseded to 1734013SM)

$110.99

$

In Stock, Qty 20+

0

0030-10

Snapper Pro 5022433X1

TIRE, FRONT, 11 X 4.0 - 5 (SV)

$70.99

$

Usually ships in 2-12 days

0

0030-20

Snapper Pro 1759320

BUSHING, 5/8 ID (LOGO)

$11.99

$

Usually ships in 2-12 days

0

0040

Snapper Pro 1734841

TUBE, Caster Wheel, 0.625 OD 4.53 OLG 0.625 OD
(Superseded to 1734841SM)

$12.99

$

In Stock, Qty 20+

0

0050

Snapper Pro 7091772

SCREW, 7/16-14 x 6" Hex Head Cap, Grade 5
(Superseded to 7091772SM)

$8.49

$

In Stock, Qty 20+

0

0060

Snapper Pro 1758079

WHEEL AND TIRE ASSY, 20X10-10 (K513)
(Superseded to 1758079YP)

$474.99

$

Usually ships in 2-12 days

0

0070

Snapper Pro 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0
