S 40 (5901739) - Snapper Pro S40 Series 48" Zero-Turn Mower, 23hp Briggs & Stratton Parking Brake Group Parts Diagram

S40 Series 48" Zero-Turn Mower, 23hp Briggs & Stratton

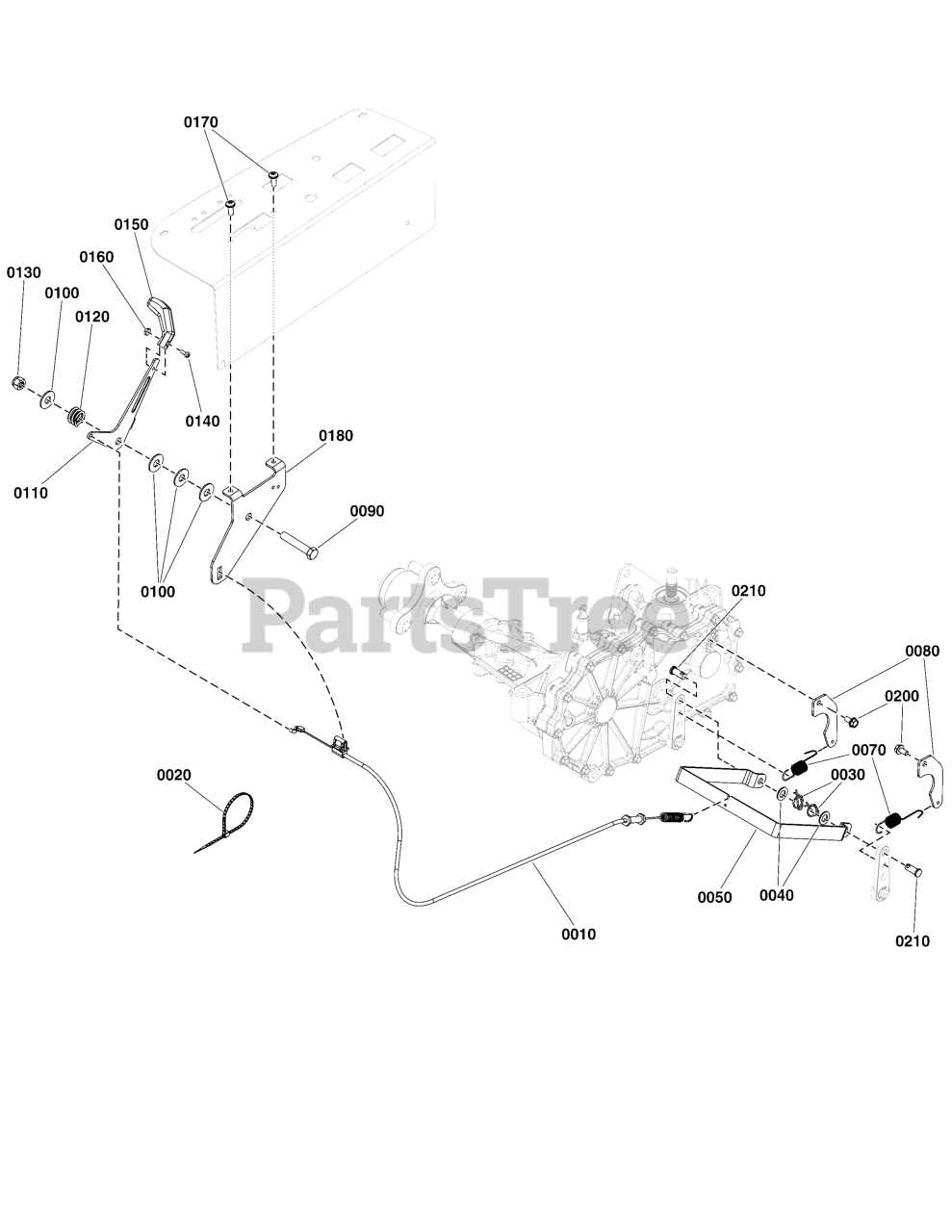

Parking Brake Group Parts Diagram

  • Title

0010

Snapper Pro 1759207

CABLE, PARKING BRAKE
(Superseded to 1759207YP)

$21.99

$

In Stock, only 1 left!

0

0020

TIE, 7, Self Lock

$

$

Not available

0030

Snapper Pro 80004458

COTTER PIN, 3/8 SELF LOCKING, CLEAR/ZINC
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0

0040

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0050

Snapper Pro 1758127A

ARM, PARKING BRAKE (2800)(BLACK)

$27.99

$

Usually ships in 2-12 days

0

0070

Snapper Pro 1758283

SPRING, EXTENSION
(Superseded to 1758283YP)

$6.99

$

In Stock, only 1 left!

0

0080

Snapper Pro 1759362

BRKT, BRAKE SPRING (2800)
(Superseded to 1759362YP)

$6.49

$

Usually ships in 2-12 days

0

0090

Snapper Pro 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0100

Snapper Pro 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

0110

Snapper Pro 7301074

LEVER, Brake, Park
(Superseded to 7301074YP)

$10.99

$

Usually ships in 2-12 days

0

0120

Snapper Pro 7028036

SPRING, Friction Pack
(Superseded to 7028036YP)

$6.99

$

Usually ships in 2-12 days

0

0130

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

0140

Snapper Pro 7091017

SCREW, #8-32 x 3/8" Curved Machine
(Superseded to 7091017YP)

$3.99

$

In Stock, only 4 left!

0

0150

Snapper Pro 5105706

KNOB, BRAKE, BLACK, PLASTIC
(Superseded to 5105706FS)

$3.49

$

Usually ships in 2-12 days

0

0160

Snapper Pro 80004411

NUT #8-32 HEX ZINC/CLEAR
(Superseded to 703460)

$3.99

$

In Stock, Qty 9

0

0170

Snapper Pro 7090999

SCREW, 1/4-20 x 5/8" Pan Head Self-Tap (Torx)
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

0180

Snapper Pro 1759968A

BRACKET, LEVER, PARK BRAKE-BLACK

$18.99

$

Usually ships in 2-12 days

0

0200

Snapper Pro 80018295

SCREW, TAPTITE, M6 X 1.0-12 LG
(Superseded to 708964)

$4.49

$

Usually ships in 2-12 days

0

0210

Snapper Pro 7014779

CLEVIS PIN
(Superseded to 7014779YP)

$6.49

$

Usually ships in 2-12 days

0
