S 40 (5901739) - Snapper Pro S40 Series 48" Zero-Turn Mower, 23hp Briggs & Stratton Main Frame & Front Casters Group Parts Diagram

S40 Series 48" Zero-Turn Mower, 23hp Briggs & Stratton

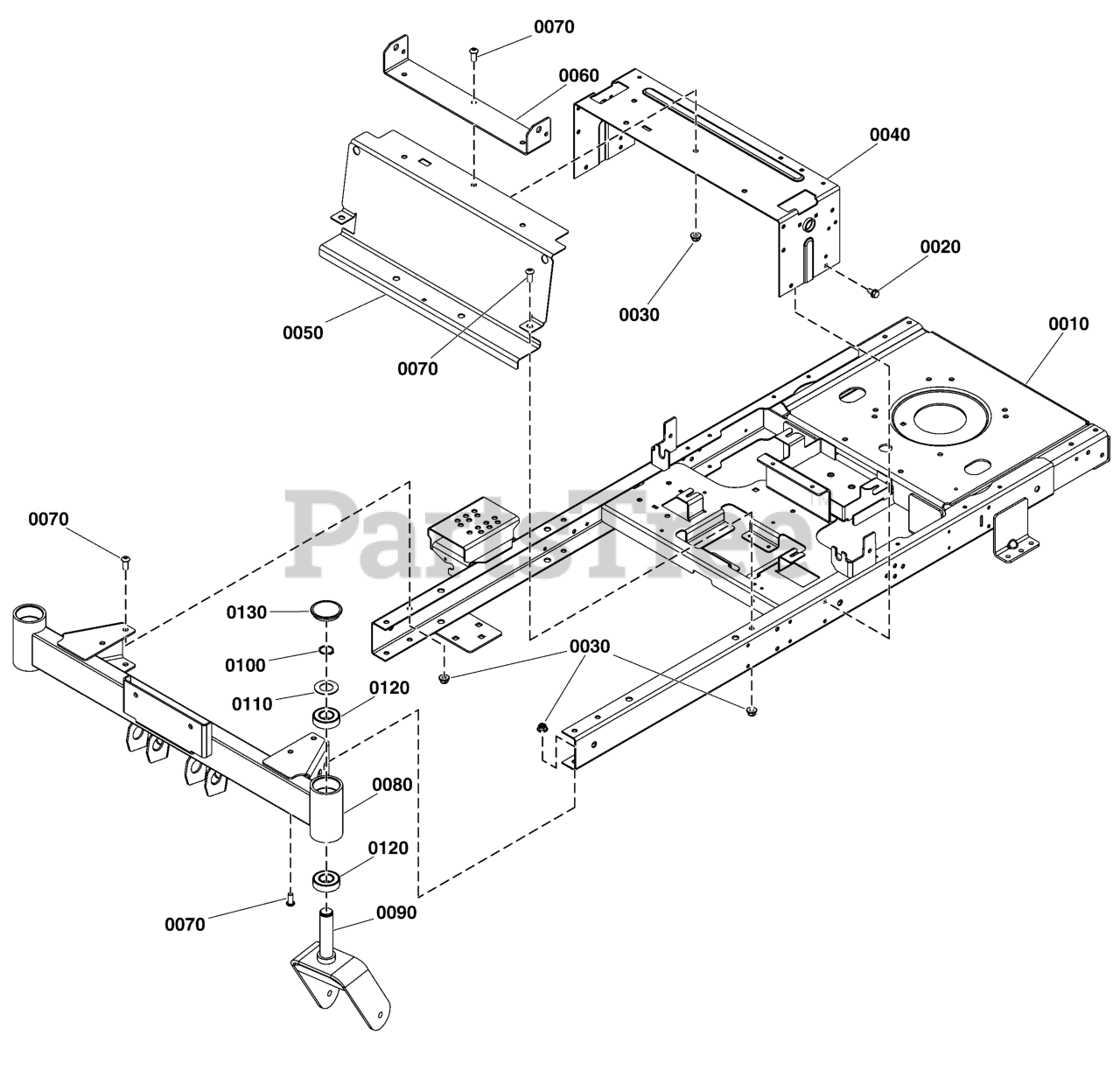

Main Frame & Front Casters Group Parts Diagram

  • Title

0010

WELD, MAIN FRAME, S40 - RED

Note: (Refer to Note: *)

$

$

Not available

0020

Snapper Pro 80005404

SCREW,5/16-18X0.625,WSHR,THD-ROLL,ZC/CL
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0030

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0040

Snapper Pro 1758010D

BRKT, CONTROL (RED)

$

$

Currently unavailable

0050

Snapper Pro 1757796D

BRKT, BRAND PLATE (RED)

$

$

Currently unavailable

0060

Snapper Pro 5416789D

PLATE, SEAT PLATE PIVOT - RED

$

$

Currently unavailable

0070

Snapper Pro 80087701

SCREW, 3/8-16 X .88 PAN HD TORX
(Superseded to 84004627)

$4.49

$

Usually ships in 2-12 days

0

0080

Snapper Pro 5417323D

WELD, FRONT AXLE, FIXED, S40 - RED
(Superseded to 5417323DFS)

$266.99

$

Usually ships in 2-12 days

0

0090

Snapper Pro 1761504D

WELDMENT,FRONT CASTER (PIV AXLE) - RED

Note: (S/N: 4000771923 and below)

$101.99

$

Usually ships in 2-12 days

0

0090

Snapper Pro 80081658D

WELDMENT, FRONT CASTER (SNP RED)

Note: (S/N: 4000771924 and above)

$

$

Currently unavailable

0100

Snapper Pro 80005606

RETAINER,1.000,EXT RING,ZINC/CLEAR
(Superseded to 703993)

$3.49

$

In Stock, Qty 13

0

0110

Snapper Pro 80004282

WASHER,1.017IDX1.812ODX0.6THK,FLAT,ZC/CL
(Superseded to 703199)

$4.99

$

In Stock, only 2 left!

0

0120

Snapper Pro 1758354

BEARING, 25 MM ID
(Superseded to 1758354YP)

$10.99

$

In Stock, only 2 left!

0

0130

Snapper Pro 5109884

CAP, GREASE, LOW PROFILE
(Superseded to 5109884FS)

$7.99

$

In Stock, only 2 left!

0
