S 40 (5901739) - Snapper Pro S40 Series 48" Zero-Turn Mower, 23hp Briggs & Stratton 48" Mower Deck Group - Deck Hangers Parts Diagram

S40 Series 48" Zero-Turn Mower, 23hp Briggs & Stratton

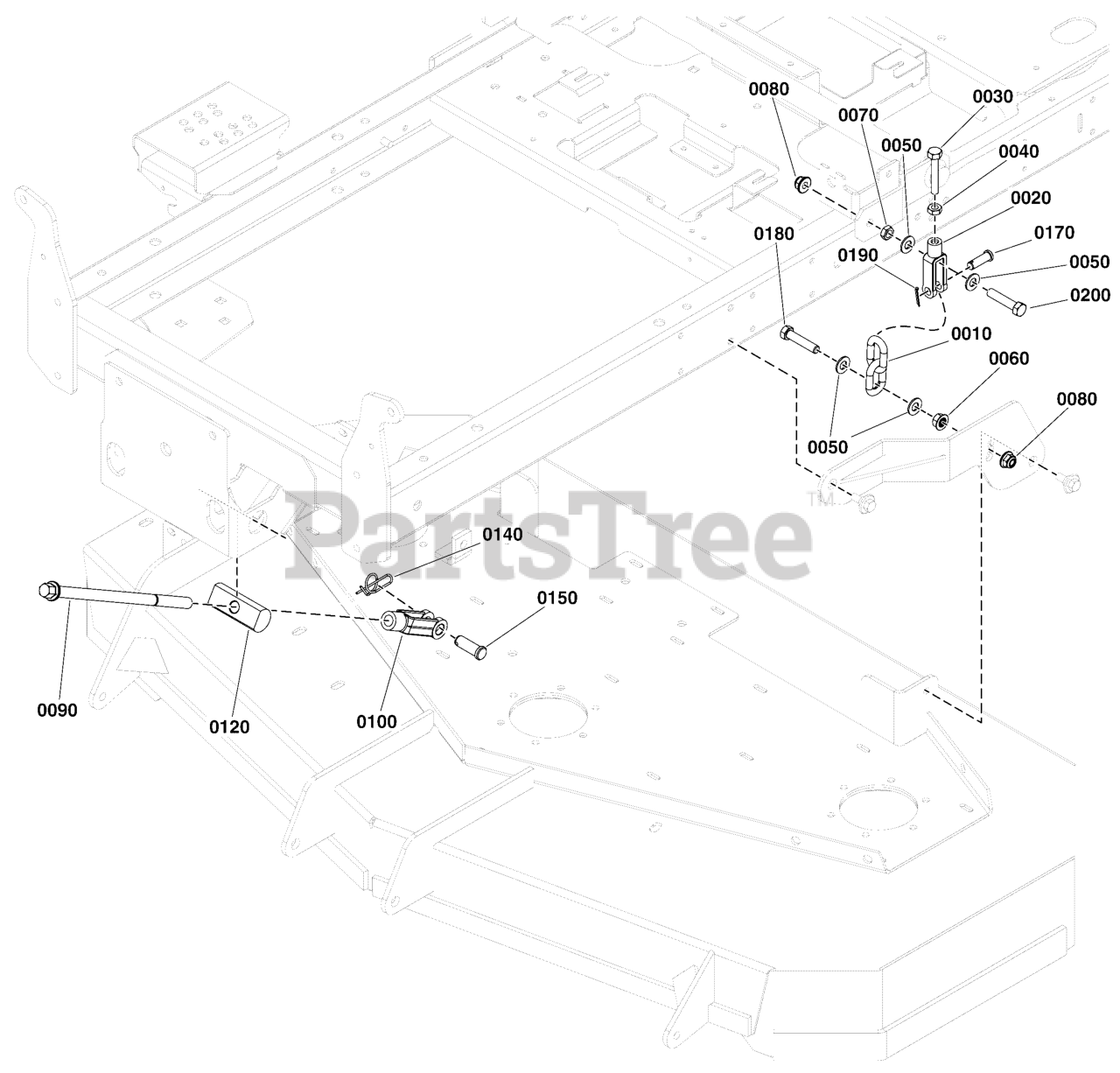

48" Mower Deck Group - Deck Hangers Parts Diagram

  • Title

0010

Snapper Pro 5050878X2

HANGER, FRONT DECK - 2 LINK
(Superseded to 5050878X2YP)

$8.49

$

In Stock, only 2 left!

0

0020

Snapper Pro 5100375

CLEVIS, 5/16-18, 3/8 PIN HOLE, CLR ZINC
(Superseded to 5100375YP)

$20.99

$

In Stock, only 1 left!

0

0030

Snapper Pro 5025055X12

BOLT- 5/16-18 X 1-1/2 GD5 TFL
(Superseded to 5025055X12SM)

$3.99

$

In Stock, only 2 left!

0

0040

Snapper Pro 5025388

NUT, 5/16-18 HEX JAM
(Superseded to 5025388YP)

$3.99

$

Usually ships in 2-12 days

0

0050

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0060

Snapper Pro 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

0070

Snapper Pro 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

In Stock, Qty 14

0

0080

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0090

Snapper Pro 1757954

ROD, MOWER HITCH
(Superseded to 1757954YP)

$18.99

$

In Stock, only 1 left!

0

0100

Snapper Pro 5023174

CLEVIS, 1/2-20, STEEL, CLEAR ZINC
(Superseded to 5023174SM)

$16.99

$

Usually ships in 2-12 days

0

0120

Snapper Pro 1757955

PIVOT, MOWER FRONT
(Superseded to 1757955YP)

$13.99

$

In Stock, only 1 left!

0

0140

Snapper Pro 7091594

COTTER PIN, 1/2" Self-Locking
(Superseded to 7091594SM)

$2.99

$

In Stock, only 2 left!

0

0150

Snapper Pro 5025479

CLEVIS PIN, 1/2 X 1.36 SAE STANDARD
(Superseded to 5025479YP)

$3.99

$

In Stock, only 2 left!

0

0170

Snapper Pro 5025214X9

PIN, CLEVIS, 3/8 X 1-1/8, PLATED
(Superseded to 5025214X9SM)

$3.99

$

Usually ships in 2-12 days

0

0180

Snapper Pro 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0190

Snapper Pro 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0200

Snapper Pro 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0
