S-4 (990761) - Homelite 21" Snow Thrower, 4hp Transmission and Wheels Group (3840I03) Parts Diagram

21" Snow Thrower, 4hp

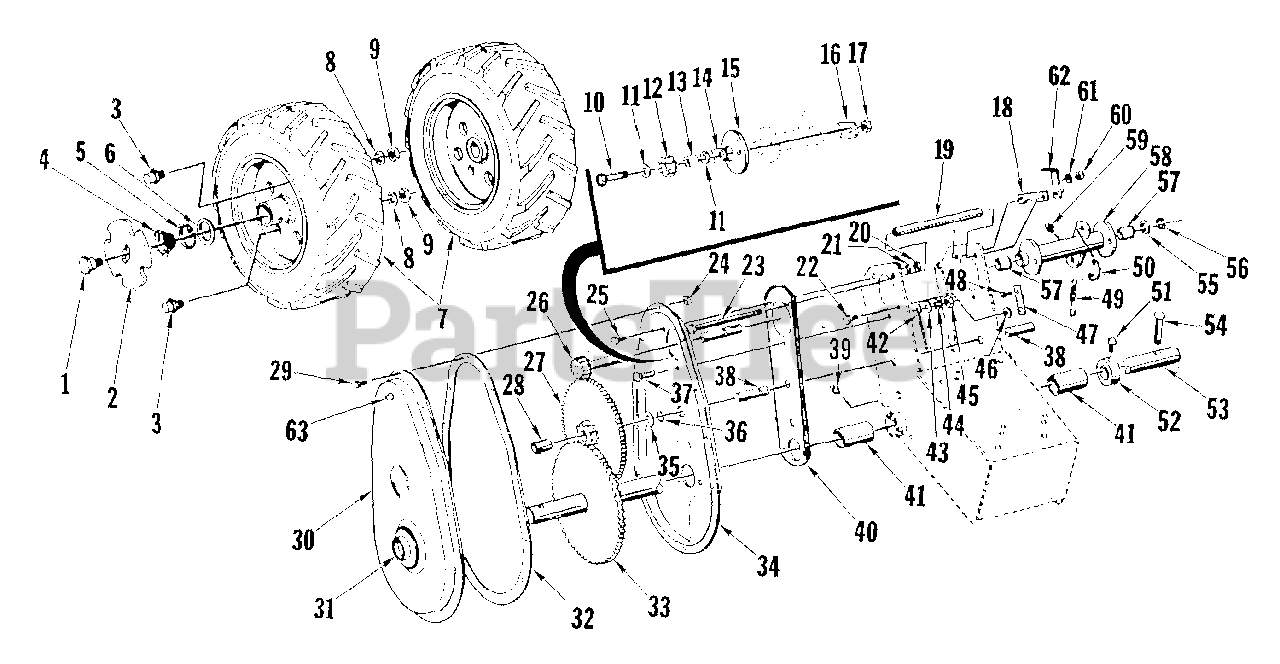

Transmission and Wheels Group (3840I03) Parts Diagram

  • Title

1

Simplicity LM-01611-66

BOLT, Shoulder

$

$

Not available

2

Simplicity LM-01611-68

PLATE, Locking

$

$

Not available

3

Simplicity LM-01611-67

STUDS

$

$

Not available

4

Simplicity LM-01611-76

SPRING

$

$

Not available

5

Simplicity LM-01583-96

RING, Retaining

$

$

Not available

6

Simplicity LM-01530-88

WASHER

$

$

Not available

7

Simplicity LM-01611-61

WHEEL & TIRE ASSEMBLY

$

$

Not available

7

Simplicity LM-01611-62

WHEEL

$

$

Not available

7

Simplicity LM-01064-51

TIRE

$

$

Not available

8

Simplicity LM-09176-42

WASHER, Plain, 5/16"

$

$

Not available

9

Simplicity LM-09234-28

NUT, Hex, 3/8-16

$

$

Not available

10

Simplicity LM-09287-25

BOLT, Hex, Head, 3/8-16 x 1-1/2 (L.H.)

$

$

Not available

11

Simplicity LM-09176-42

WASHER, Plain, 5/16"

$

$

Not available

12

Simplicity LM-01211-18

PINION, Reverse

$

$

Not available

13

Simplicity LM-01211-63

SPACER, Pinion

$

$

Not available

14

Simplicity LM-01211-07

SPACER, Reverse Pinion

$

$

Not available

15

Simplicity LM-01530-94

SHIELD

$

$

Not available

16

Simplicity LM-01211-39

PLATE, Lock

$

$

Not available

17

Simplicity LM-01530-90

NUT, Hex, 3/8-16 (L.H.)

$

$

Not available

18

Simplicity LM-01062-15

PLATE, Friction Stop

$

$

Not available

19

Simplicity LM-01062-17

SPACER, Frame

$

$

Not available

20

Simplicity LM-09173-72

NUT, Hex, 5/16

$

$

Not available

21

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

22

Simplicity LM-09219-59

SCREW, Hex, Head, 1/4-20 x 5/8

$

$

Not available

23

Simplicity LM-01062-16

BOLT, Frame

$

$

Not available

24

Simplicity LM-09286-99

NUT, Hex, Tinnerman

$

$

Not available

25

Simplicity LM-09193-18

SCREW, Hex Head, 5/16-18 x 5/8

$

$

Not available

26

Simplicity LM-01211-15

SHAFT ASSEMBLY, Pulley

$

$

Not available

27

Simplicity LM-01213-06

GEAR ASSEMBLY, Intermediate

$

$

Not available

28

Simplicity LM-01530-78

BEARING, Intermediate Pin

$

$

Not available

29

Simplicity LM-09237-35

SCREW, Self Tapping, #10 x 3/8

$

$

Not available

30

Simplicity LM-01531-06

COVER ASSEMBLY, Gear Case

$

$

Not available

31

Simplicity LM-80610-55

WASHER, Retaining

$

$

Not available

32

Simplicity LM-01531-15

GASKET, Gear Case

$

$

Not available

33

Simplicity LM-01611-64

AXLE & GEAR ASSEMBLY

$

$

Not available

34

Simplicity LM-01531-05

CASE, Gear

$

$

Not available

35

Simplicity LM-01530-79

WASHER

$

$

Not available

36

Simplicity LM-01531-24

RING, Retaining

$

$

Not available

37

Simplicity LM-09077-31

SCREW, Hex Head, 3/8-16 x 1

$

$

Not available

38

Simplicity LM-01061-93

SHAFT, Intermediate

$

$

Not available

39

Simplicity LM-09128-08

FITTING, Grease

$

$

Not available

40

Simplicity LM-01531-14

GASKET, Bearing Housing

$

$

Not available

41

Simplicity LM-01530-89

BEARING

$

$

Not available

42

Simplicity LM-01210-44

PIN, Lock

$

$

Not available

43

Simplicity LM-09173-78

WASHER, Plain, 3/8"

$

$

Not available

44

Simplicity LM-09169-65

WASHER, Lock, 3/8"

$

$

Not available

45

Simplicity LM-09169-50

NUT, Hex, 3/8

$

$

Not available

46

Simplicity LM-09173-77

WASHER, Plain, 1/4"

$

$

Not available

47

Simplicity LM-09287-23

DETENT, Neutral

$

$

Not available

48

Simplicity LM-09198-04

SCREW, Self Tapping, #10 x 3/8

$

$

Not available

49

Simplicity LM-01531-21

SPRING, Reverse Lever

$

$

Not available

50

Simplicity LM-01530-11

EXTENSION, Spring

$

$

Not available

51

Simplicity LM-09287-21

SCREW, Set, Square Head, 5/16-18 x 1/2

$

$

Not available

52

Simplicity LM-80610-46

COLLAR, Set

$

$

Not available

54

Simplicity LM-01180-53

PIN

$

$

Not available

53

Simplicity LM-81610-45

CLIP, Spring

$

$

Not available

55

Simplicity LM-01530-79

WASHER

$

$

Not available

56

Simplicity LM-01531-24

RING, Retaining

$

$

Not available

57

Simplicity LM-80510-38

BEARING, Bronze

$

$

Not available

58

Simplicity LM-01061-99

HOUSING ASSEMBLY, Bearing

$

$

Not available

59

Simplicity LM-09128-08

FITTING, Grease

$

$

Not available

60

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

61

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

62

Simplicity LM-01067-77

GUIDE, Clutch Wire

$

$

Not available

63

Simplicity LM-09287-24

FITTING, Grease

$

$

Not available
