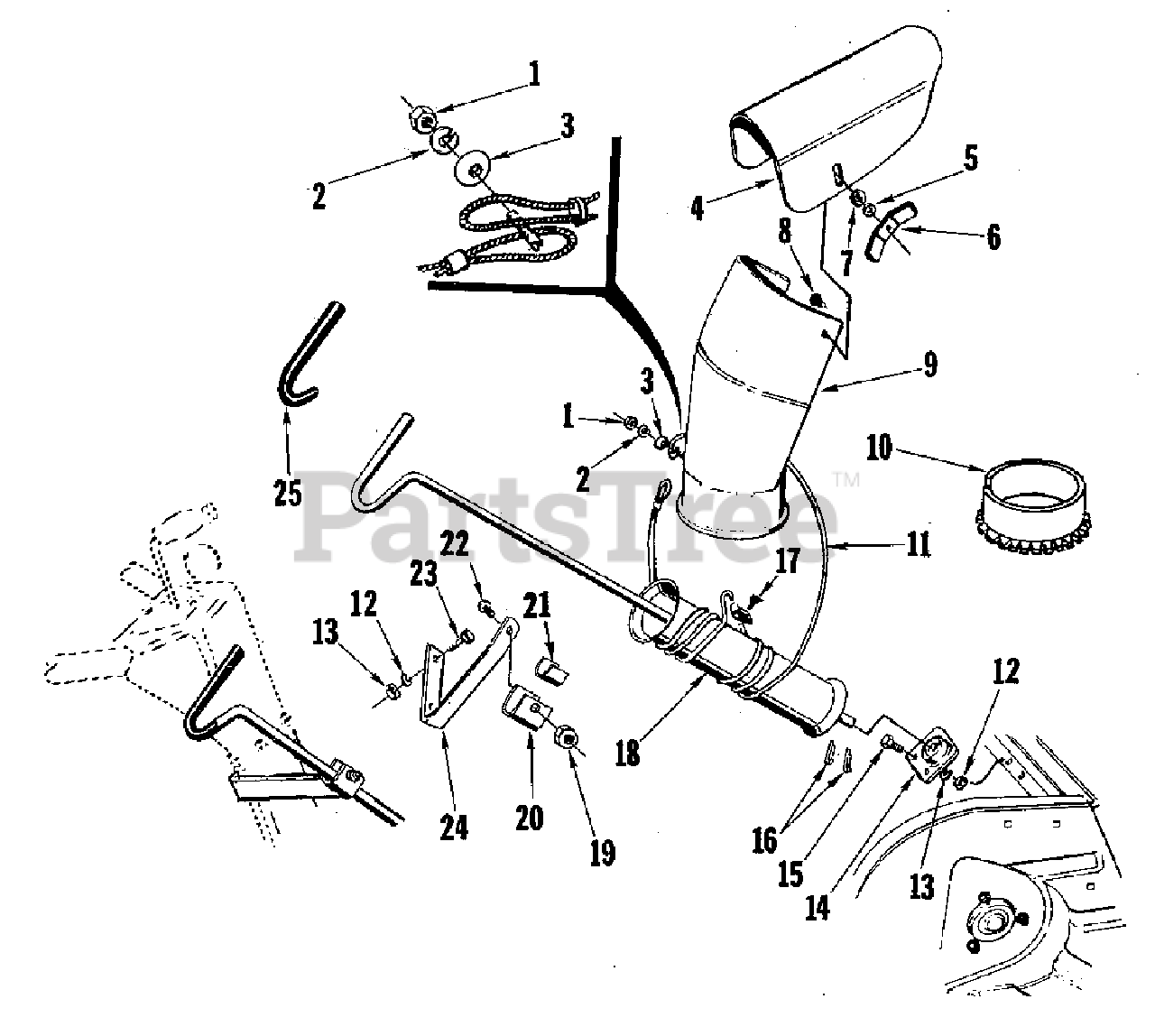

S-4 (990761) - Homelite 21" Snow Thrower, 4hp Spout Group (3840I01) Parts Diagram

21" Snow Thrower, 4hp

Spout Group (3840I01) Parts Diagram

  • Title

1

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

2

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

3

Simplicity LM-01067-85

WASHER, Cup

$

$

Not available

4

Simplicity LM-01067-60

EXTENSION, Spout

$

$

Not available

5

Simplicity LM-09173-78

WASHER, Flat, 3/

$

$

Not available

6

Simplicity LM-01062-29

NUT, Wing

$

$

Not available

7

Simplicity LM-09287-10

WASHER, Lock, Shakeproof 3/8

$

$

Not available

8

Simplicity LM-09160-51

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

9

Simplicity LM-01067-62

SPOUT ASSEMBLY

$

$

Not available

10

Simplicity LM-01612-80

LINER

$

$

Not available

11

Simplicity LM-01068-81

CABLE ASSEMBLY

$

$

Not available

12

Simplicity LM-09157-41

NUT, Hex, 1/4-20

$

$

Not available

13

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

14

Simplicity LM-01064-91

BEARING

$

$

Not available

15

Simplicity LM-09077-27

SCREW, Cap Hex Head, 1/4-20 x 5/8

$

$

Not available

16

Simplicity LM-09220-00

PIN, Cotter, 3/32 x 5/8

$

$

Not available

17

Simplicity LM-09274-28

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

18

Simplicity LM-01760-96

TUBE ASSEMBLY, Spout Control

$

$

Not available

19

Simplicity LM-09233-62

NUT, Lock Hex, 5/16-18

$

$

Not available

20

Simplicity LM-01520-50

GUIDE, Rod

$

$

Not available

21

Simplicity LM-01211-75

LINER, Guide

$

$

Not available

22

Simplicity LM-09077-29

SCREW, Cap Hex Head, 5/16-18 x 1-1/4

$

$

Not available

23

Simplicity LM-09193-16

SCREW, Cap Hex Head, 1/4-20 x 1-3/4

$

$

Not available

24

Simplicity LM-01760-26

SUPPORT, Spout Adjustment Rod

$

$

Not available

25

Simplicity LM-01769-34

HANDLE, Grip

$

$

Not available
