S-4 (990761) - Homelite 21" Snow Thrower, 4hp Shield, Drive, Pulleys, and Engine Group (3840I02) Parts Diagram

21" Snow Thrower, 4hp

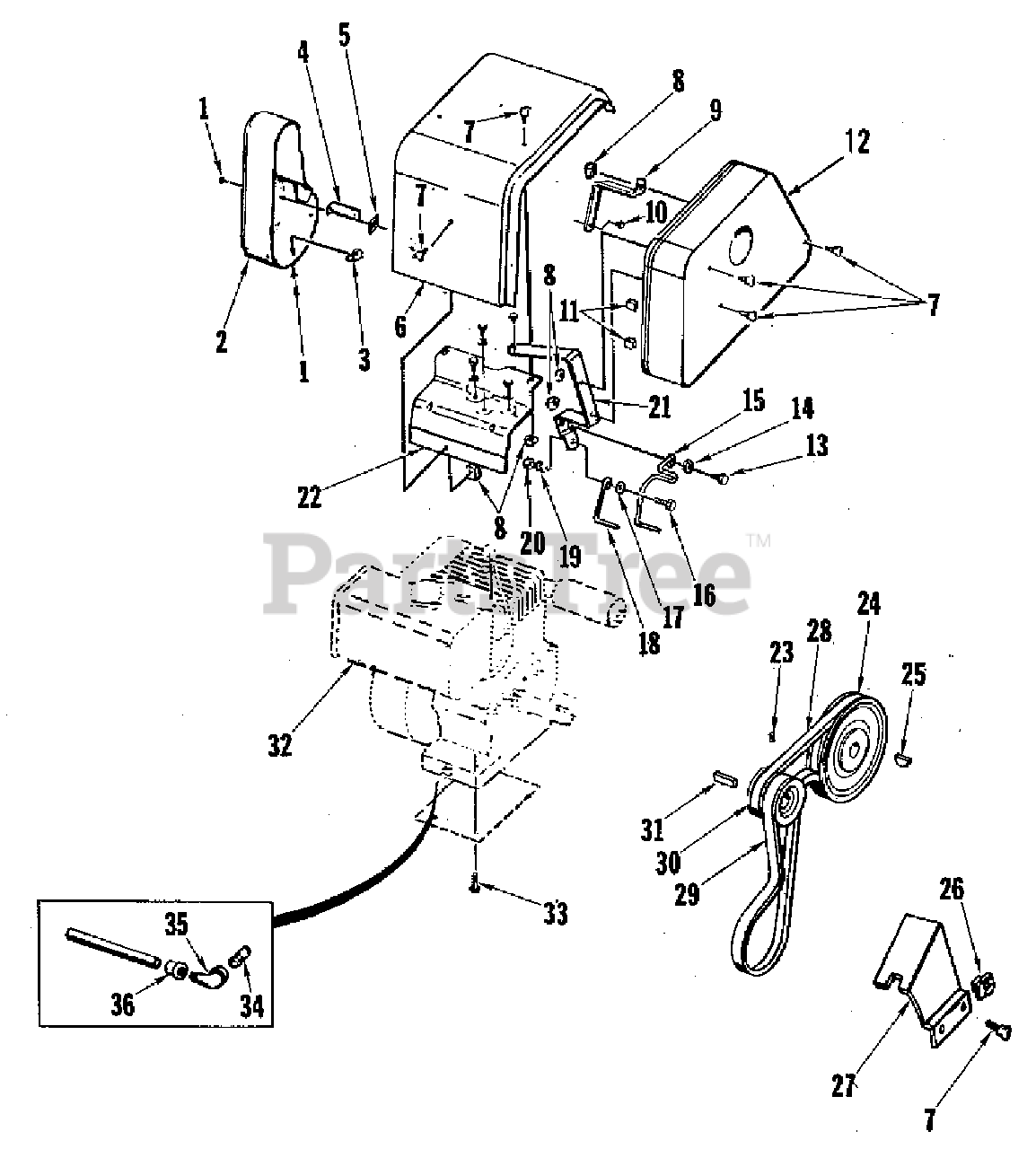

Shield, Drive, Pulleys, and Engine Group (3840I02) Parts Diagram

  • Title

1

Simplicity LM-09221-22

SCREW, Self Tapping, #10-24 x 1/2" Lg.

$

$

Not available

2

Simplicity LM-01065-90

SHIELD, Air Intake

$

$

Not available

3

Simplicity LM-09287-02

NUT, Special, Tinnerman Speed

$

$

Not available

4

Simplicity LM-01065-91

BRACKET, Air Intake Shield

$

$

Not available

5

Simplicity LM-09287-00

NUT, Tinnerman

$

$

Not available

6

Simplicity LM-01065-34

HOOD ASSEMBLY

$

$

Not available

7

Simplicity LM-09286-93

SCREW, Thumb, 5/16-18 x 3/4

$

$

Not available

8

Simplicity LM-09287-01

NUT, Tinnerman

$

$

Not available

9

Simplicity LM-01065-40

BRACKET, Belt Guard

$

$

Not available

10

Simplicity LM-09087-90

SCREW, Hex Head, Self Tapping, 1/4-20 x 3/8

$

$

Not available

11

Simplicity LM-01063-72

CLIP, Speed

$

$

Not available

12

Simplicity LM-01065-37

GUARD ASSEMBLY, Belt

$

$

Not available

13

Simplicity LM-09213-70

SCREW, Hex Head, 1/2-20 x 1

$

$

Not available

14

Simplicity LM-09095-89

WASHER, Lock, 1/2" Internal

$

$

Not available

15

Simplicity LM-01066-24

STOP, Belt

$

$

Not available

16

Simplicity LM-09164-31

SCREW, Hex Head, 5/16-18 x 1

$

$

Not available

17

Simplicity LM-09176-42

WASHER, Plain, 5/16"

$

$

Not available

18

Simplicity LM-01065-45

STOP, Belt

$

$

Not available

19

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

20

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

21

Simplicity LM-01065-41

SUPPORT, Belt Guard

$

$

Not available

22

Simplicity LM-01065-33

BRACKET, Hood Support

$

$

Not available

23

Simplicity LM-09055-64

SCREW, Set, 5/16-18 x 3/8

$

$

Not available

24

Simplicity LM-01062-27

PULLEY

$

$

Not available

25

Simplicity LM-09051-23

KEY, Woodruff

$

$

Not available

26

Simplicity LM-09204-70

RETAINER, Nut

$

$

Not available

27

Simplicity LM-01068-66

COVER, Belt

$

$

Not available

28

Simplicity LM-80210-77

BELT, "V"

$

$

Not available

29

Simplicity LM-01543-07

BELT, "V"

$

$

Not available

30

Simplicity LM-01062-14

PULLEY

$

$

Not available

31

Simplicity LM-82210-42

KEY

$

$

Not available

32

Simplicity 100202

ENGINE

$

$

Not available

33

Simplicity LM-09271-87

SCREW, 3/8-16 X 1

$

$

Not available

34

Simplicity LM-01068-85

NIPPLE, Pipe

$

$

Not available

35

Simplicity LM-09214-19

ELBOW, Street, 90 Degrees

$

$

Not available

36

Simplicity LM-09017-51

PIPE, Cap, 1/4 Standard

$

$

Not available
