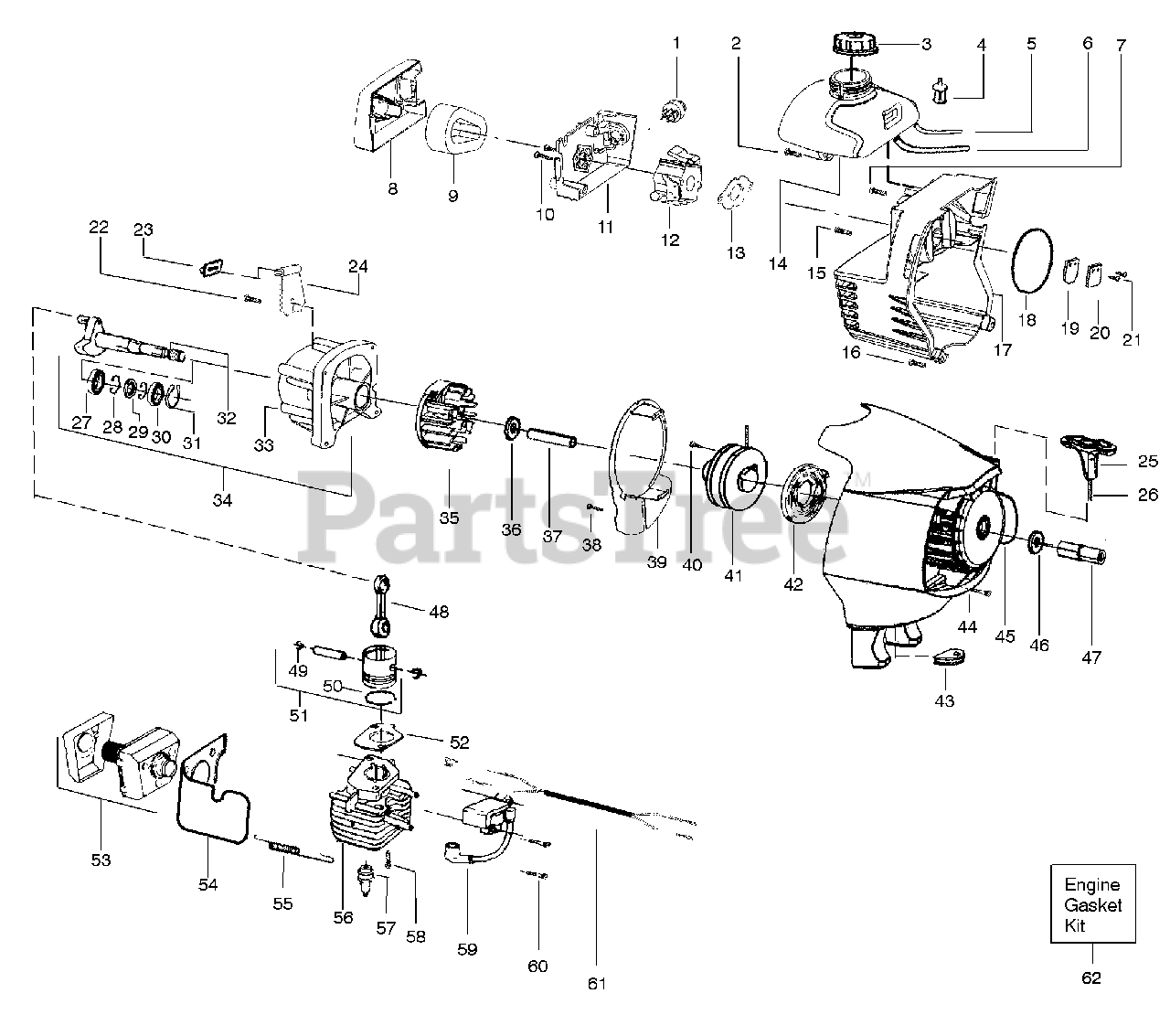

S 31 SST - Snapper String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title
1

Poulan 530047721

Bulb-purge

$9.49

$

In Stock, only 1 left!

0

2

Poulan 530015843

Screw-tank

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 530049386

Assy-Fuel cap
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

4

Poulan 530095646

Assy-Fuel pick-up

$6.99

$

In Stock, Qty 20+

0

5

Poulan 530071404

Kit-Fuel line
(Superseded to 530069247)

$7.99

$

In Stock, Qty 20+

0

6

Poulan 530069216

Kit-Fuel/Purge line

$11.99

$

In Stock, Qty 20+

0

$6.49

$

In Stock, only 2 left!

0

8

Poulan 530054935

Cover-Air box

$

$

Not available

9

Poulan 530054946

Filter-Air

$30.99

$

In Stock, Qty 12

0

10

Poulan 530015849

Screw-carb.

$6.49

$

In Stock, only 1 left!

0

11

$6.49

$

Usually ships in 3-10 days

0

12

Poulan 530071566

Kit-Assy carb. (WT-618)

$

$

Not available

12

Poulan 530071636

Kit-Assy carb. (WT-627)
(Superseded to 530071637)

$87.99

$

In Stock, only 1 left!

0

13

Poulan 530071401

Gasket-Carb.(kit)

$

$

Not available

14

Poulan 530055317

Assy-Fuel tank
(Superseded to 545075305)

$

$

Not available

15

Poulan 530015771

Screw-crankcase

$6.49

$

In Stock, Qty 6

0

16

Poulan 530015952

Screw-shrd to f/hsg.

$4.99

$

Usually ships in 3-10 days

0

17

$

$

Not available

18

Poulan 530071401

O-ring-c/case (kit)

$

$

Not available

19

Poulan 530027593

Valve-reed

$6.49

$

In Stock, only 3 left!

0

20

Poulan 530054596

Stop-reed

$

$

Not available

21

Poulan 530016064

Screw-reed valve

$4.99

$

In Stock, only 2 left!

0

22

Poulan 530015875

Screw-tank retainer

$4.99

$

In Stock, only 3 left!

0

23

Poulan 530055492

Isolator-fuel tank

$

$

Not available

24

Poulan 530054941

Ret.-fuel tank

$

$

Not available

25

Poulan 530054834

Handle-starter

$4.99

$

In Stock, only 1 left!

0

26

Poulan 530071400

Kit-Rope

$

$

Not available

27

Poulan 530032103

Bearing-inner

$

$

Not available

28

Poulan 530015787

Retainer

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 530032102

Bearing-outer

$

$

Not available

31

Poulan 530015789

Retainer-crankshaft

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 530012430

Assy-crankshaft

$27.99

$

Usually ships in 3-10 days

0

33

Poulan 530012514

Assy-crankcase
(Superseded to 545081901)

$

$

Not available

34

Poulan 530071686

Assy-c'case/c'shaft

Note: (incl. 27-31,32,33)

$40.99

$

Usually ships in 3-10 days

0

35

Poulan 530071402

Kit - Assy.-Flywheel

$34.99

$

Usually ships in 3-10 days

0

36

$3.99

$

Usually ships in 3-10 days

0

37

$7.49

$

Usually ships in 3-10 days

0

38

Poulan 530015775

Screw-baffle

$6.49

$

In Stock, only 2 left!

0

39

Poulan 530054939

Plate-baffle
(Superseded to 545115201)

$4.99

$

In Stock, only 1 left!

0

40

Poulan 530016326

Screw-rope

$

$

Not available

41

Poulan 530071399

Kit-pulley

Note: (incl. #40)

$

$

Not available

42

Poulan 530042086

Spring-starter
(Superseded to 545008011)

$10.99

$

In Stock, Qty 7

0

43

$3.99

$

Usually ships in 3-10 days

0

44

Poulan 530015810

Screw-F/hsg
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

45

Poulan 530056225

Housing-Fan w/eyelet

$

$

Not available

46

$3.99

$

Usually ships in 3-10 days

0

47

Poulan 530012427

Coupling-drive

$

$

Not available

48

Poulan 530010960

Assy-Connecting rod

$18.99

$

Usually ships in 3-10 days

0

49

Poulan 530015162

Retainer-piston pin

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 530025875

Ring-Piston

$

$

Not available

51

Poulan 530069899

Kit-Piston

$

$

Not available

52

Poulan 530071401

Gasket-Cylinder (kit)

$

$

Not available

53

Poulan 530069310

Kit-Muffler

$

$

Not available

54

Poulan 530053346

Heat shield/air dam
(Superseded to 530058957)

$6.49

$

In Stock, only 2 left!

0

55

Poulan 530036409

Spring-muffler

$

$

Not available

56

Poulan 530071582

Kit-Cylinder

$

$

Not available

57

Poulan 952030249

Spark plug (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

58

Poulan 530001624

Bolt-Cylinder

$3.99

$

Usually ships in 3-10 days

0

59

Poulan 530039217

Module-Ignition
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

60

Poulan 530016357

Screw-module

$6.49

$

In Stock, only 4 left!

0

61

Poulan 530057238

Assy-Rear wire

$

$

Not available

62

Poulan 530071401

Kit-Gasket

$

$

Not available
