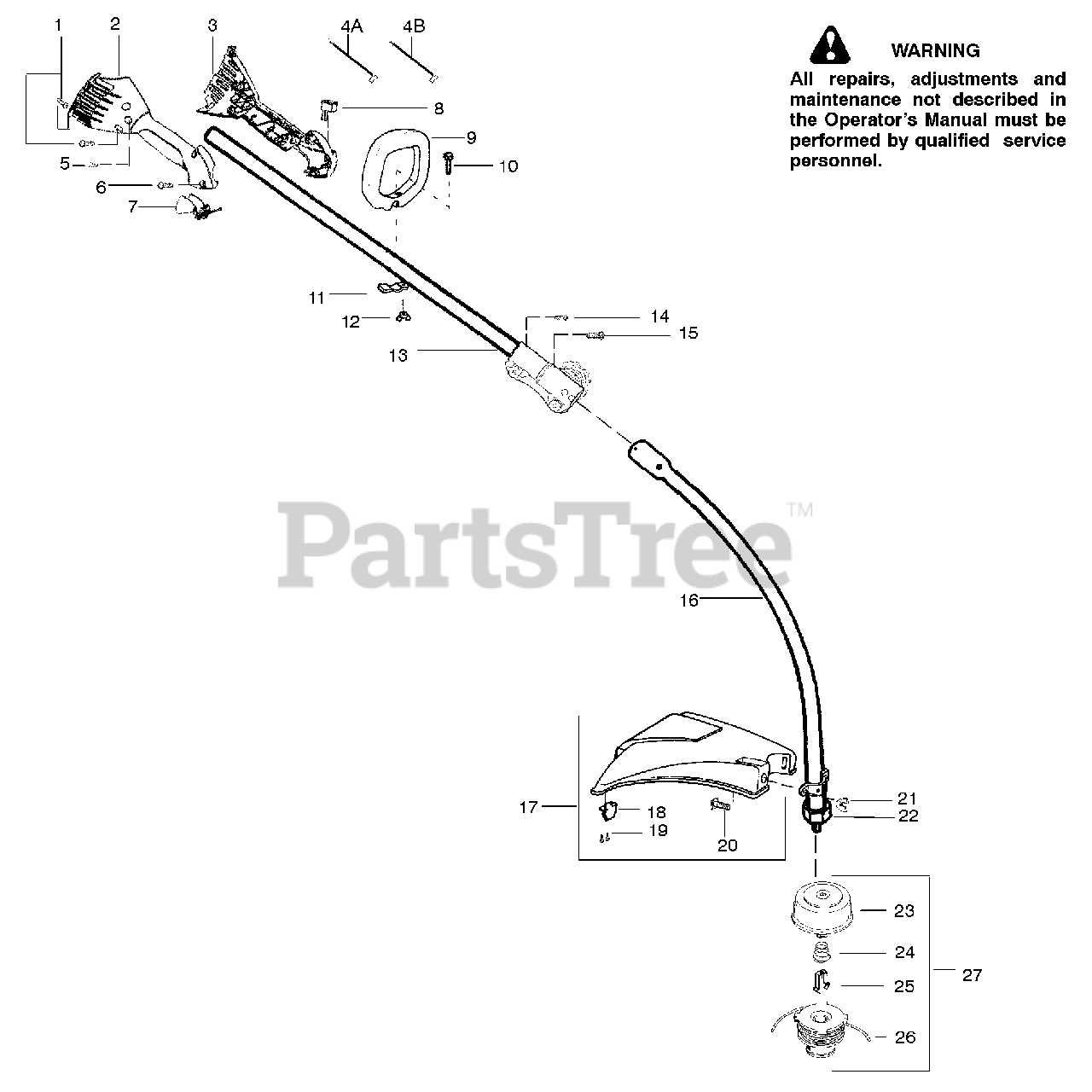

S 31 SNG - Snapper String Trimmer Handle & Shaft Assembly Parts Diagram

String Trimmer

Handle & Shaft Assembly Parts Diagram

  • Title
1

Poulan 530015886

Screw-handle/fan hsg

$6.49

$

In Stock, only 3 left!

0

2

Poulan 530054837

Throttle Hsg. (Right)

$

$

Not available

3

Poulan 530071553

Kit-Left Throttle Hsg.

$9.99

$

Usually ships in 3-10 days

0

4A

Poulan 530054943

Assy-Front Wire Lower Front Wire

$

$

Not available

4B

Poulan 530055724

Assy-Front Wire Upper Front Wire

$

$

Not available

5

Poulan 530015805

Screw-Alignment
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

$6.49

$

In Stock, only 3 left!

0

7

$3.99

$

In Stock, Qty 8

0

8

Poulan 530069572

Kit-Switch

$9.49

$

In Stock, only 3 left!

0

9

Poulan 530055699

Assy-Assist Handle

$11.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 1 left!

0

11

Poulan 530088416

Clamp-Assist Handle

$

$

Not available

12

Poulan 530016118

Wingnut
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

13

Poulan 530071607

Assy-Upper Shaft

Note: (incl. flex shaft & coupler)

$

$

Not available

14

Poulan 530016343

Screw-Alignment

$2.49

$

Usually ships in 3-10 days

0

15

$

$

Not available

16

Poulan 530071557

Assy-Lower Shaft

Note: (incl. flex shaft)

$46.99

$

Usually ships in 3-10 days

0

17

Poulan 530069666

Kit-Shield Ass'y.

Note: (Incl.18-21)

$

$

Not available

18

Poulan 530052286

Line Limiter

$

$

Not available

19

Poulan 530015814

Screw-Line Limiter

$6.49

$

In Stock, Qty 16

0

$4.99

$

In Stock, only 1 left!

0

21

Poulan 530016118

Wingnut
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

22

$

$

Not available

23

Poulan 530095773

Assy-Hub/Arbor

$31.99

$

Usually ships in 3-10 days

0

24

Poulan 530053241

Spring-Return

$

$

Not available

25

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, only 4 left!

0

26

Poulan 952711604

Accy-Wound Spool
(Superseded to 530053239)

$

$

Not available

27

Poulan 530056199

Assy-TNG VI 3/8" -RH 2x
(Superseded to 530053239)

$

$

Not available

Poulan 530163733

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530057296

Decal-Upper Shaft

Note: Not Shown

$

$

Not available

Poulan 530056220

Decal-Shaft
(Superseded to 545209101)

Note: Not Shown

$

$

Not available

Poulan 530057369

Decal-Starting Instruction

Note: Not Shown

$

$

Not available
