S 31 BC - Snapper Brushcutter Handle & Shaft Assembly Parts Diagram

Brushcutter

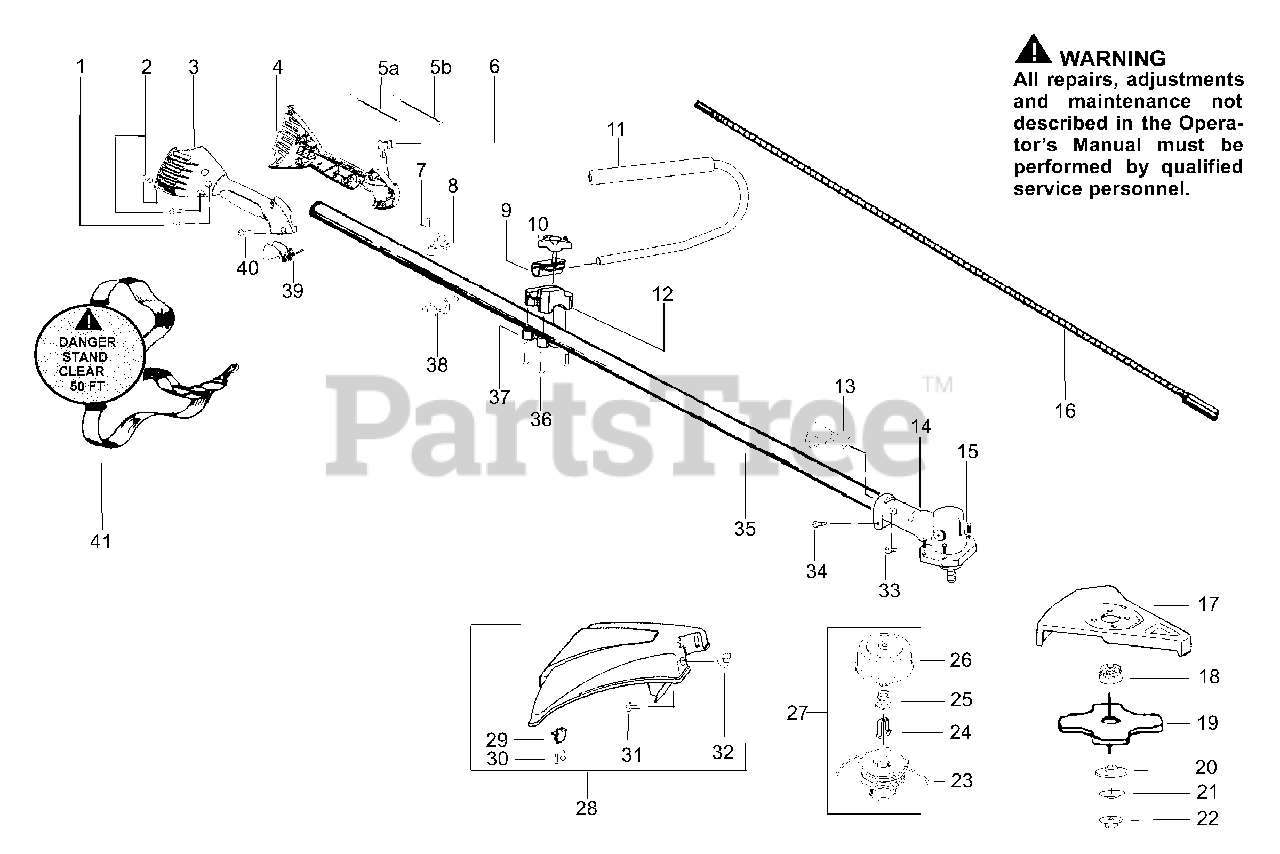

Handle & Shaft Assembly Parts Diagram

  • Title

1

Poulan 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, only 4 left!

0

2

Poulan 530015886

Screw

$6.49

$

In Stock, only 4 left!

0

3

Poulan 530054837

Throttle hsg-right

$

$

Not available

4

Poulan 530071553

Kit-Left throttle hsg

$9.99

$

Usually ships in 3-10 days

0

5A

Poulan 530054943

Assy-Wire Assy-Front Wire

$

$

Not available

5B

Poulan 530055724

Assy-Wire Assy-Front Wire

Note: (Upper)

$

$

Not available

6

Poulan 530071356

Kit-Switch

$8.99

$

In Stock, only 1 left!

0

7

Poulan 530015770

Screw

$

$

Not available

8

Poulan 530055392

Clamp-Harness
(Superseded to 530071605)

Note: (upper)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 530095970

Clamp-Handlebar
(Superseded to 530071868)

$8.99

$

In Stock, Qty 11

0

10

Poulan 530016336

Knob
(Superseded to 530071868)

$8.99

$

In Stock, Qty 11

0

11

Poulan 530071394

Assy.-Handlebar

Note: (incl. grip,cap,decal)

$12.99

$

Usually ships in 3-10 days

0

12

Poulan 530095971

Base-Clamp
(Superseded to 530071868)

$8.99

$

In Stock, Qty 11

0

13

Poulan 530095812

Bracket-Shield

$4.99

$

Usually ships in 3-10 days

0

14

Poulan 530071585

Kit-Gearbox

$

$

Not available

15

Poulan 530016312

Screw

$6.49

$

In Stock, only 3 left!

0

16

Poulan 530095938

Shaft-Flex Drive

$21.99

$

Usually ships in 3-10 days

0

17

Poulan 530071383

Kit-Metal Shield

$14.99

$

Usually ships in 3-10 days

0

18

Poulan 530095815

Dust cup

$11.99

$

In Stock, Qty 6

0

19

Poulan 952701611

Accy.-Weed Blade
(Superseded to 952711585)

$

$

Not available

20

Poulan 530095816

Washer

$10.99

$

In Stock, Qty 5

0

21

Poulan 530016240

Washer-Belleville

$6.49

$

In Stock, only 1 left!

0

22

Poulan 530015793

Nut-Flange

$6.49

$

In Stock, Qty 6

0

23

Poulan 952711605

Accy-Wound Spool
(Superseded to 952711551)

$

$

Not available

24

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, only 4 left!

0

25

Poulan 530053241

Spring-Return

$

$

Not available

26

Poulan 530095772

Assy-Hub/Arbor

$

$

Not available

27

Poulan 530056195

Assy-Cutting Head
(Superseded to 530053244)

$

$

Not available

28

Poulan 530069779

Kit-Shield Assy.

Note: (incl. 29-32)

$

$

Not available

29

Poulan 530052285

Limiter-Line

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 4 left!

0

31

Poulan 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

32

Poulan 530016118

Wingnut
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

33

Poulan 530016371

Screw

$

$

Not available

34

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

35

Poulan 530055373

Assy.-Driveshaft

$44.99

$

Usually ships in 3-10 days

0

36

Poulan 530015770

Screw

$

$

Not available

37

Poulan 530071684

Clamp-Tube
(Superseded to 530071868)

$8.99

$

In Stock, Qty 11

0

38

Poulan 530055394

Clamp-Haress

Note: (lower)

$

$

Not available

39

Poulan 530054940

Lever-Throttle

$3.99

$

In Stock, Qty 8

0

40

Poulan 530015886

Screw

$6.49

$

In Stock, only 4 left!

0

41

Poulan 530094417

Shoulder Strap

$

$

Not available

Poulan 530163114

Operator Manual

Note: Not Shown

$

$

Not available

Poulan 530055349

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

Poulan 530056335

Decal-Blade Direction

Note: Not Shown

$2.23

$

Usually ships in 3-10 days

0

Poulan 530056415

Decal-Start Inst.

Note: Not Shown

$

$

Not available
