S 25DA - Poulan Chainsaw CHAIN & BAR, SHROUD Parts Diagram

Chainsaw

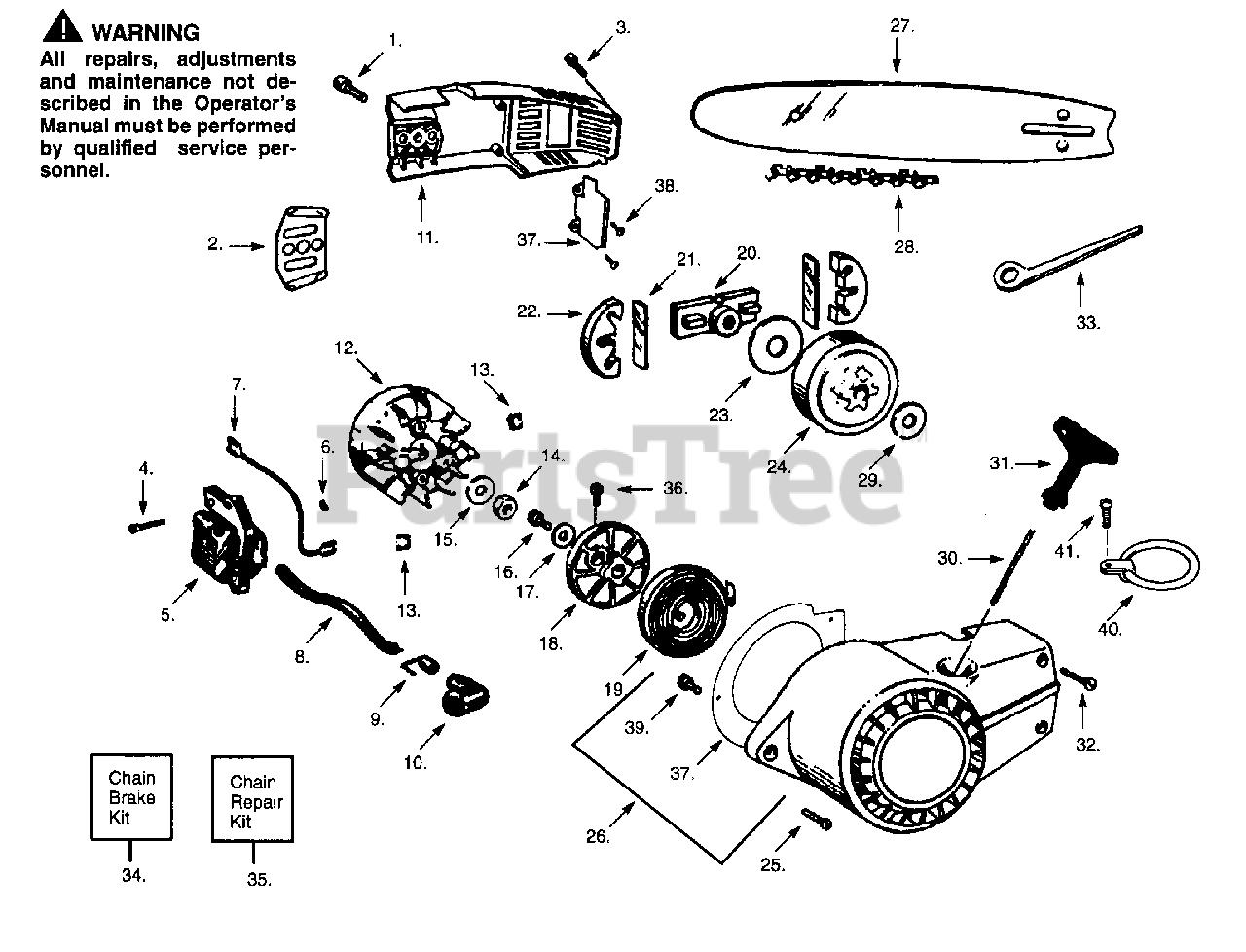

CHAIN & BAR, SHROUD Parts Diagram

  • Title

$

$

Not available

2

Poulan 530023864

Guide Plate

$

$

Not available

$

$

Not available

4

Poulan 530015128

Screw
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530039141

Ignition Module

Note: (Incl. 7-10)

$

$

Not available

6

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530039168

Lead Stop Switch

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 530039026

High Tension Lead (Bulk No. 8141)

$

$

Not available

9

Poulan 530039071

Connector Spring Plug

$

$

Not available

10

Poulan 530039097

Spark Plug Boot

$

$

Not available

11

Poulan 530029259

Bar Clamp

$

$

Not available

12

Poulan 530047198

Flywheel Ass'y.

$

$

Not available

13

Poulan 530023817

Starter Dog Spring

$6.49

$

In Stock, Qty 5

0

$5.99

$

Usually ships in 3-10 days

0

15

$6.49

$

Usually ships in 3-10 days

0

16

$2.49

$

Usually ships in 3-10 days

0

17

$4.99

$

In Stock, only 4 left!

0

18

Poulan 530069289

Starter Pulley

$

$

Not available

19

Poulan 530042023

Starter Spring
(Superseded to 545008007)

$

$

Not available

20

Poulan 530022079

Clutch Spider

$18.99

$

Usually ships in 3-10 days

0

21

Poulan 530023381

Clutch Springs

$

$

Not available

22

Poulan 530023379

Clutch Shoes

$

$

Not available

23

Poulan 530023382

Clutch Plate

$

$

Not available

24

Poulan 530069301

Drum & Sprocket Ass'y.

$

$

Not available

25

$

$

Not available

26

Poulan 530011243

Fan Housing

Note: (Incl. 39 & Baffle)

$66.99

$

Usually ships in 3-10 days

0

27

Poulan 952044369

Bar - 16" SN

$20.99

$

Usually ships in 3-10 days

0

28

Poulan 952051211

Chain - 16" (P101S-56)
(Superseded to 581562201)

$22.99

$

In Stock, only 3 left!

0

29

Poulan 530023519

Clutch Washer

$3.99

$

In Stock, only 1 left!

0

30

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

31

Poulan 530037485

Starter Handle
(Superseded to 530056402)

$6.49

$

In Stock, only 1 left!

0

32

$

$

Not available

33

Poulan 530031063

Bar Wrench
(Superseded to 545006011)

$

$

Not available

35

Poulan 530052073

Chain Repair Kit

$

$

Not available

36

$6.49

$

In Stock, only 2 left!

0

37

$2.49

$

In Stock, only 1 left!

0

38

$

$

Not available

39

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530069708

Rope Ring Kit

Note: (Incl. 41)

$

$

Not available

41

$1.99

$

In Stock, only 1 left!

0

Poulan 530068433

Operator Manual

Note: Not Shown.

$7.49

$

Usually ships in 3-10 days

0

Poulan 530029750

Repl. Bar & Chain Decal (Not a serviceable part)

Note: Not Shown.

$0.99

$

Usually ships in 3-10 days

0
