S 25 - Poulan Pro Chainsaw INTERNAL POWER UNIT Parts Diagram

Chainsaw

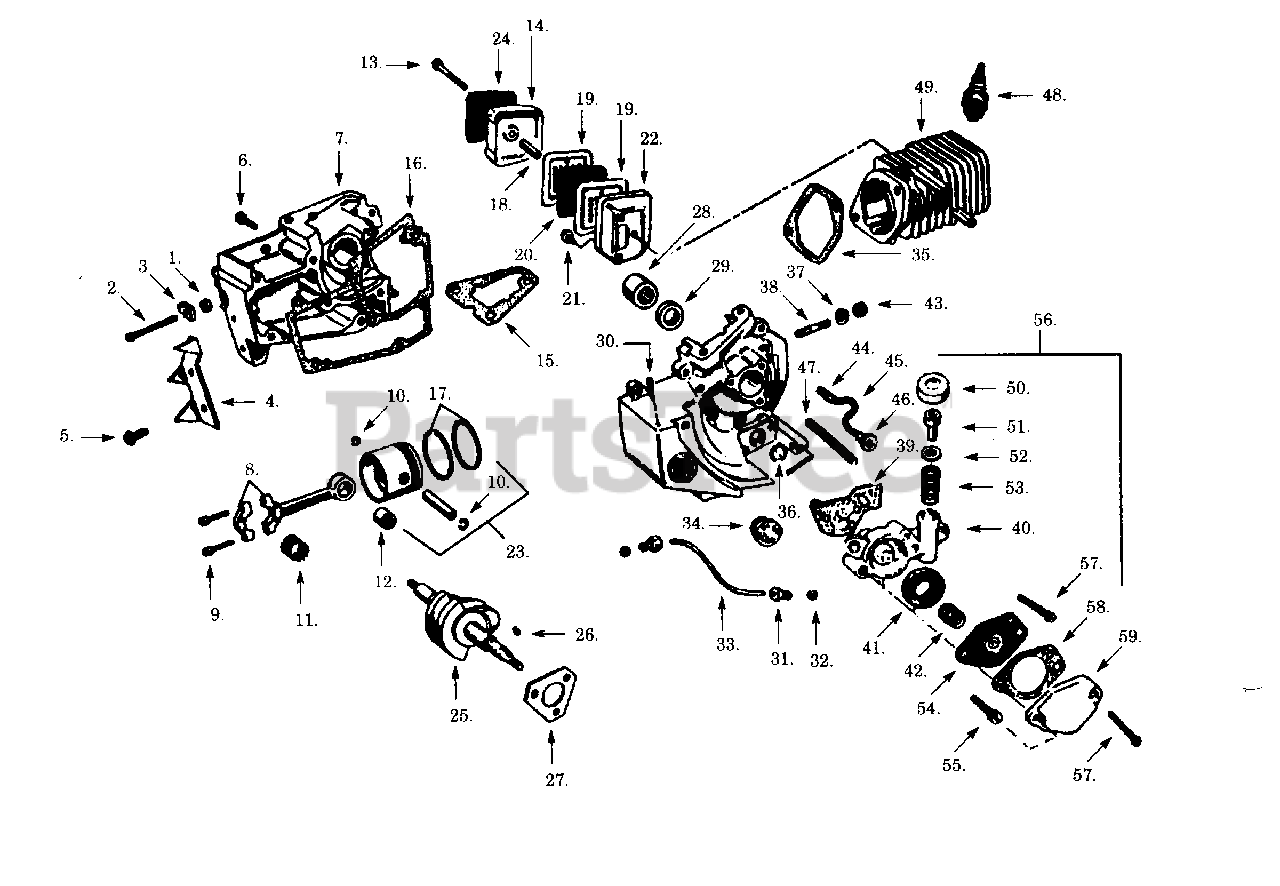

INTERNAL POWER UNIT Parts Diagram

  • Title

1

Poulan 530015135

Nut

$1.99

$

In Stock, Qty 7

0

2

Poulan 530015134

Screw
(Superseded to 530016115)

$2.49

$

In Stock, only 1 left!

0

3

Poulan 530023492

Bar Adjusting Pin

$

$

Not available

4

Poulan 530023387

Spur (Optional)

$

$

Not available

5

Poulan 530015539

Screw

$

$

Not available

6

Poulan 530015136

Screw

$

$

Not available

7

Poulan 530010223

Crankcase Ass'y.

Note: (Incl. 1,2,3,16,28-30,&38)

$

$

Not available

8

Poulan 530022077

Connecting Rod Ass'y.

Note: (Incl. 9 & 12)

$

$

Not available

9

Poulan 530001723

Screw

$2.49

$

Usually ships in 3-10 days

0

10

Poulan 530015131

Piston Pin Retainer

$

$

Not available

11

Poulan 530032019

Crankpin Rollers

$

$

Not available

12

Poulan 530032018

Piston Pin Bearing

$

$

Not available

13

Poulan 530015189

Screw

$

$

Not available

14

Poulan 530026729

Muffler Cover

$7.49

$

Usually ships in 3-10 days

0

15

Poulan 530019049

Gasket

Note: Included in Gasket Set.

$

$

Not available

16

Poulan 530019044

Crankcase Gasket

Note: Included in Gasket Set.

$4.99

$

In Stock, Qty 9

0

17

Poulan 530023485

Piston Rings

$

$

Not available

18

Poulan 530015657

Muffler Spacer

$

$

Not available

19

Poulan 530023591

Muffler Baffle

$

$

Not available

20

Poulan 530023592

Muffler Screen

$

$

Not available

21

Poulan 530001709

Screw

$4.99

$

In Stock, Qty 7

0

22

Poulan 530026731

Muffler Body

$

$

Not available

23

Poulan 530069298

Piston Ass'y.

Note: (Incl.10)

$

$

Not available

24

Poulan 530026730

Muffler Shield

$10.99

$

Usually ships in 3-10 days

0

25

Poulan 530022173

Crankshaft

$

$

Not available

26

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 530023354

Crankcase Washer

$

$

Not available

28

Poulan 530032021

Bearing

$14.99

$

In Stock, only 1 left!

0

29

Poulan 530019051

Seal

Note: Included in Gasket Set.

$

$

Not available

30

Poulan 530069185

Oil Vent Pin

$

$

Not available

31

Poulan 530002615

Discharge Line Fit ting

$

$

Not available

32

Poulan 530002464

Ferrule 1/8" Tubing

$3.99

$

In Stock, only 1 left!

0

33

Poulan 530021013

Discharge Line-Oil Pump (Bulk 8115)

$

$

Not available

34

Poulan 530023874

Oil Cap

Note: (Incl. O Ring w/Retainer)

$

$

Not available

35

Poulan 530019043

Cylinder Gasket

Note: Included in Gasket Set.

$3.99

$

In Stock, Qty 7

0

36

Poulan 530001952

O-Ring

$

$

Not available

37

Poulan 530001642

Cylinder Washer

$3.99

$

Usually ships in 3-10 days

0

38

Poulan 530001674

Cylinder Studs

$

$

Not available

39

Poulan 530019054

Oil Pump Body Gasket

Note: Included in Gasket Set.

$

$

Not available

40

Poulan 530010178

Oil Pump Body

$

$

Not available

41

Poulan 530023698

Pump Body Filter

Note: Included in Gasket Set.

$

$

Not available

42

Poulan 530023699

Diaphragm Spring

$

$

Not available

43

Poulan 530001660

Nut

$2.49

$

Usually ships in 3-10 days

0

44

Poulan 530002589

Oil Pick-up Weight

$10.99

$

Usually ships in 3-10 days

0

45

Poulan 530021012

Oil Line (Bulk 8132)

$

$

Not available

46

Poulan 530023148

Oil Pump Intake Valve

$

$

Not available

47

Poulan 530024677

Oil Line Protector Spring

$

$

Not available

48

Poulan 952030037

Spark Plug
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

49

Poulan 530012072

Cylinder

$

$

Not available

50

Poulan 530023356

Oil Pump Cap

$

$

Not available

51

Poulan 530023357

Oil Pump Plunger

$

$

Not available

52

Poulan 530019029

Quad Ring Plunger

Note: Included in Gasket Set.

$4.99

$

In Stock, Qty 5

0

53

Poulan 530023358

Oil Pump Spring

$

$

Not available

54

Poulan 530022124

Diaphragm Ass'y.

$

$

Not available

55

Poulan 530015114

Screw

$2.49

$

Usually ships in 3-10 days

0

56

Poulan 530010177

Pump Ass'y.

$

$

Not available

57

Poulan 530015137

Screw

$

$

Not available

58

Poulan 530019053

Pump Body Cover Gasket

Note: Included in Gasket Set.

$

$

Not available

59

Poulan 530011163

Oil Pump Ass'y. Cover

$

$

Not available
