S 25 - Poulan Pro Chainsaw EXTERNAL POWER UNIT Parts Diagram

Chainsaw

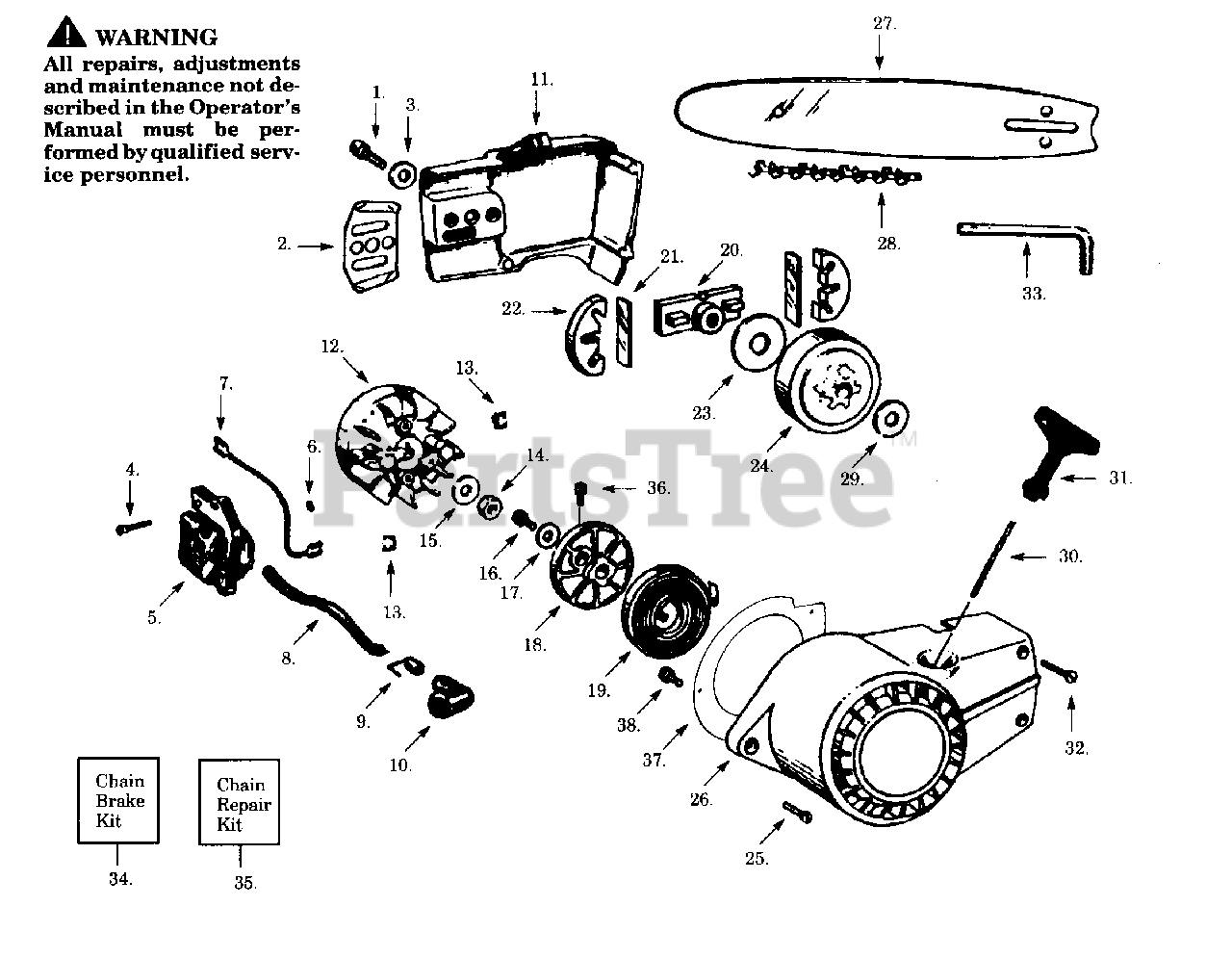

EXTERNAL POWER UNIT Parts Diagram

  • Title

1

Poulan 530015183

Screw

$

$

Not available

2

Poulan 530023864

Guide Plate

$

$

Not available

3

Poulan 530015149

Washer

$4.99

$

In Stock, only 3 left!

0

4

Poulan 530015128

Screw
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530039141

Ignition Module

Note: (Incl. 7-10)

$

$

Not available

6

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530039168

Lead Stop Switch

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 530039026

High Tension Lead (Bulk No. 8141)

$

$

Not available

9

Poulan 530039071

Connector Spring Plug

$

$

Not available

10

Poulan 530039097

Spark Plug Boot

$

$

Not available

11

Poulan 530011198

Bar Clamp

$

$

Not available

12

Poulan 530047198

Flywheel Ass'y.

$

$

Not available

13

Poulan 530047198

Starter Dog Spring

$

$

Not available

14

Poulan 530626605

Nut

$5.99

$

Usually ships in 3-10 days

0

15

Poulan 530015127

Washer

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 530001724

Screw

$2.49

$

Usually ships in 3-10 days

0

17

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

18

Poulan 530069289

Starter Pulley

$

$

Not available

19

Poulan 530042023

Starter Spring
(Superseded to 545008007)

$

$

Not available

20

Poulan 530022079

Clutch Spider

$18.99

$

Usually ships in 3-10 days

0

21

Poulan 530023381

Clutch Springs

$

$

Not available

22

Poulan 530023379

Clutch Shoes

$

$

Not available

23

Poulan 530023382

Clutch Plate

$

$

Not available

24

Poulan 530069301

Drum & Sprocket Ass'y.

$

$

Not available

25

Poulan 530015074

Screw

$

$

Not available

26

Poulan 530011243

Fan Housing

$66.99

$

Usually ships in 3-10 days

0

27

Poulan 952044368

14" Sprocket Nose

$

$

Not available

27

Poulan 952044369

16" Sprocket Nose

$20.99

$

Usually ships in 3-10 days

0

28

Poulan 952051209

14" (P101S-52)
(Superseded to 581562101)

$20.99

$

Usually ships in 3-10 days

0

28

Poulan 952051211

16" (P101S-56)
(Superseded to 581562201)

$22.99

$

In Stock, only 3 left!

0

29

Poulan 530023519

Clutch Washer

$3.99

$

In Stock, only 1 left!

0

30

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

31

Poulan 530037485

Starter Handle
(Superseded to 530056402)

$6.49

$

In Stock, only 1 left!

0

32

Poulan 530015122

Screw

$

$

Not available

33

Poulan 530031017

Bar Wrench

$

$

Not available

34

Poulan 952069259

Chain Brake Kit

$

$

Not available

35

Poulan 530052073

Chain Repair Kit

$

$

Not available

36

Poulan 530016080

Screw

$6.49

$

In Stock, only 2 left!

0

37

Poulan 530011243

Air Inlet Baffle

$66.99

$

Usually ships in 3-10 days

0

38

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 530061047

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available

40

Poulan 530014095

14"

Note: Not Shown.

$

$

Not available

40

Poulan 530014096

16"

Note: Not Shown.

$

$

Not available

41

Poulan 530067169

Operator Manual

Note: Not Shown.

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 530027927

14" Decal (Not a serviceable part)

Note: Not Shown.

$

$

Not available

42

Poulan 530027928

16"

Note: Not Shown.

$

$

Not available
